The GRACO 560594 is a modular divider valve designed for heavy-duty lubrication systems. It is constructed from robust materials suitable for industrial environments and is intended to distribute precise, metered amounts of lubricant to multiple points in large machinery, such as those found in paper and rubber mills. The valve is part of the Trabon MGO Series-Flo® line, which is engineered for high pumping volumes and wide temperature variations.

Key Features:

• Modular divider valve

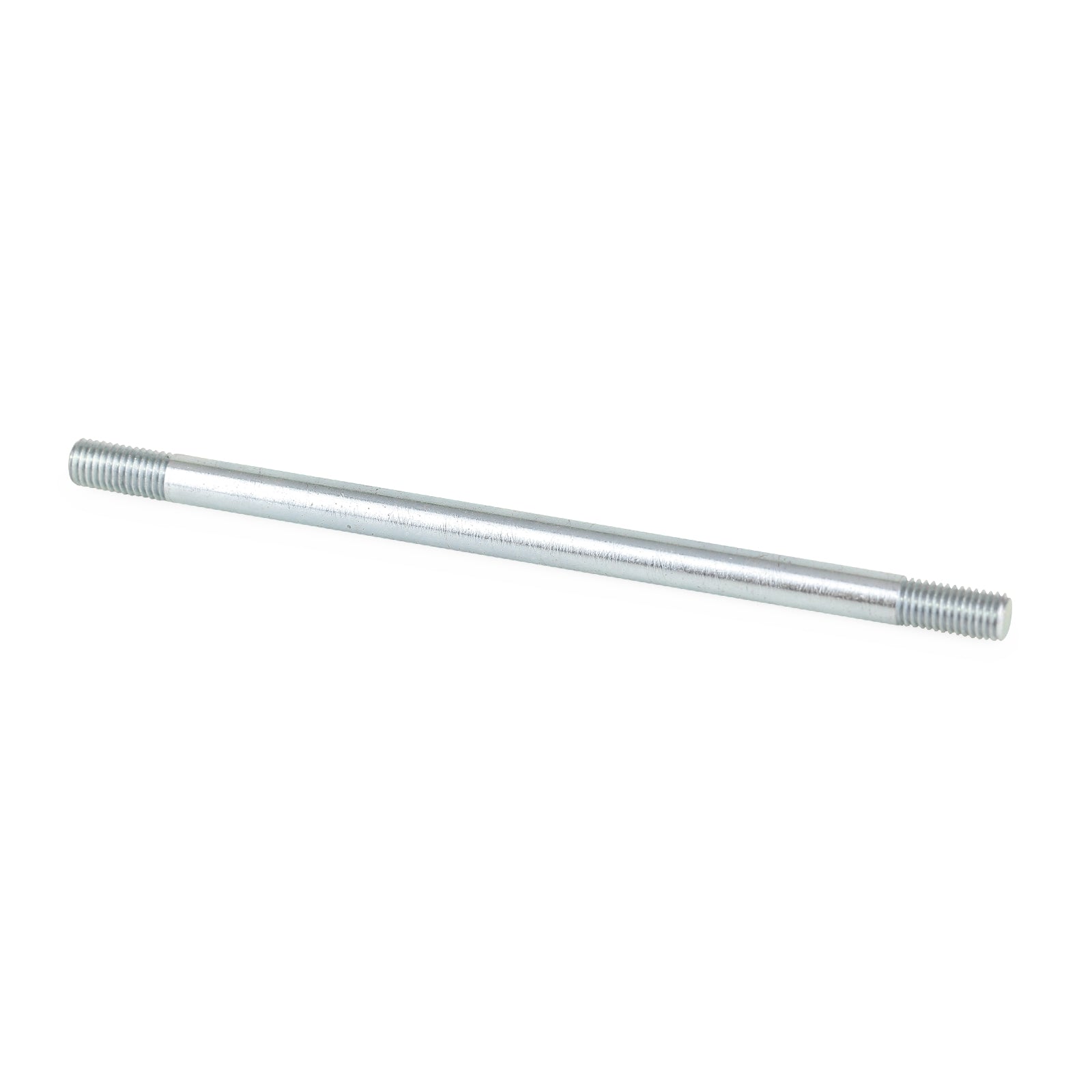

• 6 Section Short Tie Rod
• Heavy-duty industrial materials, modular design
• High pressure capability
• Compatible with large circulating oil systems and hydraulic balancing systems
• Delivers metered amount of lubricant
• High pressure capability
• Lubricant outlets easily added or removed
• Can be installed on new or existing machines
• Valve bores match hone-fitted to metering pistons
• Viton O-ring seals standard (TFE seals may be used for high temperature/fluid compatibility)
• Reliable, heavy-duty service
• Modular design for flexible configuration

Applications:
Ideal for large circulating oil systems or hydraulic balancing systems in industrial settings such as paper and rubber mills, as well as for lubricating large bearings in heavy machinery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Requires 2 short and 2 long tie rods per assembly (as specified for similar MGO divider valves)
• Follow torque specifications for tie rod nuts and outlet port plugs (e.g., tie rod nut: 12 ft. lbs / 16.3 N.m; outlet port plugs: 6–7 ft. lbs / 8.1–9.5 N.m)
• Ensure proper sealing with Viton or TFE O-ring seals for leak-free operation
• Modular design allows for easy addition or removal of valve sections as needed
• Consult the equipment manual for detailed installation and maintenance procedures
