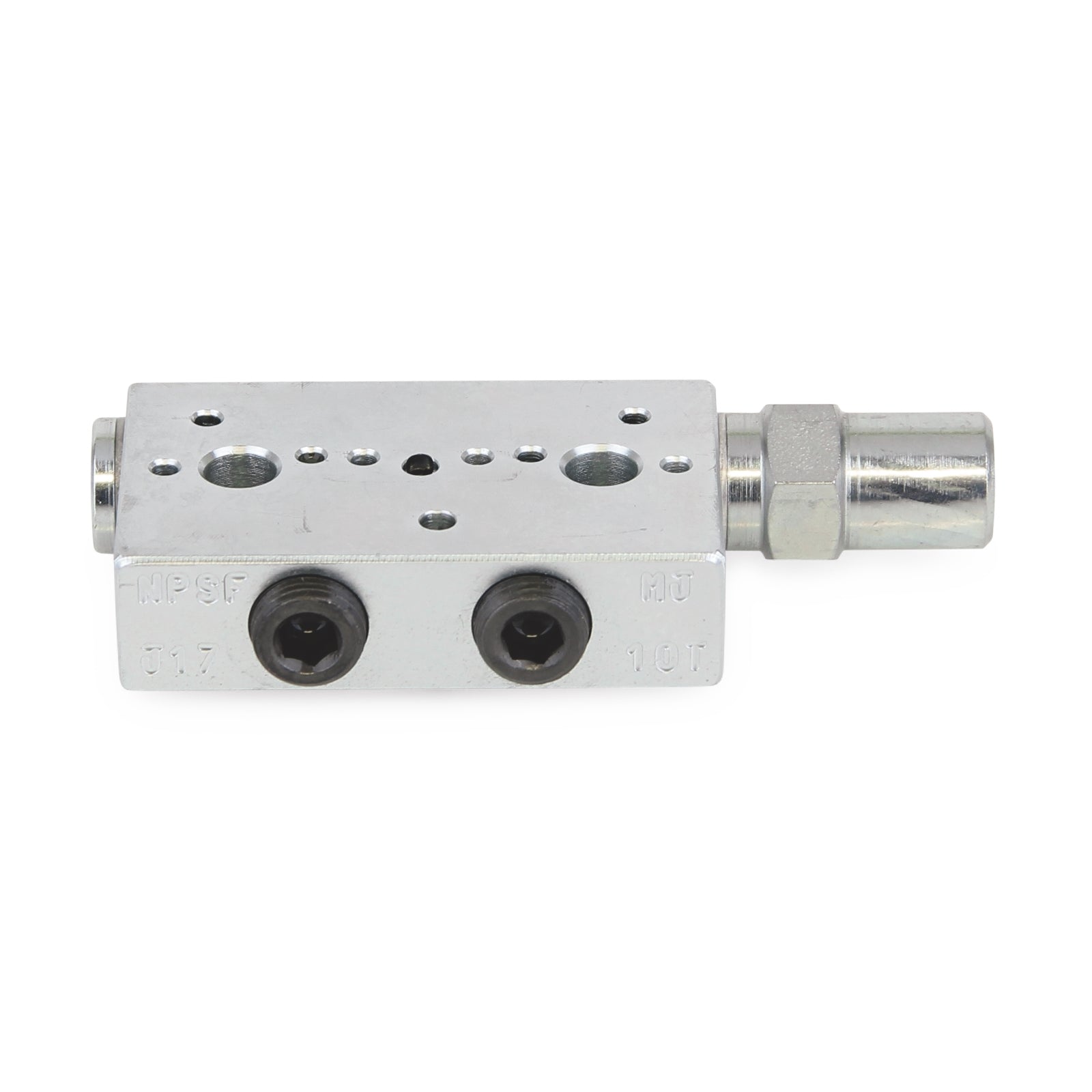

The Trabon® MJ Series-Flo Divider Valve is a compact, customizable divider block designed for precise lubrication delivery in machine tools, product, or press equipment. It is constructed from plated steel and is intended to accurately divide and deliver oil or grease to multiple lubrication points within GRACO equipment.

Key Features:

• Divider Valve
• MJ-10S, 0.020 in³ (0.33 cm³) discharge per piston stroke
• Plated steel
• 0.020 in³ (0.33 cm³) per piston stroke
• Maximum working pressure: 2,000 psi (137.89 bar)
• Oil or grease up to NLGI Grade #1
• Compact and customizable design
• Space efficient—serves 6 to 16 points from one block assembly
• Built-in outlet check valves for accurate lube delivery
• Alternate outlet on face of valves can be fitted with optional performance indicators
• Can be accessorized with magnetic and electronic proximity switch cycle indicators for positive assurance of lube events
• Reliable progressive operation: valves operate in sequence and resume at the same point if flow is interrupted
• Maximum cycle rate: 60 cycles/min
• Maximum operating temperature: 200°F (93°C)

Applications:
On-road vehicles, off-road equipment, in-plant machinery, machine tools, product or press equipment requiring precise, multi-point lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all connections are tightened to recommended torque values: tie rod nut (12 ft lbs), enclosure plug (11–13 ft lbs), outlet port plug (6–7 ft lbs)
• Verify compatibility of lubricant (oil or grease up to NLGI Grade #1)
• Inspect for leaks and proper function after installation
• Consider adding optional performance indicators for easier troubleshooting
