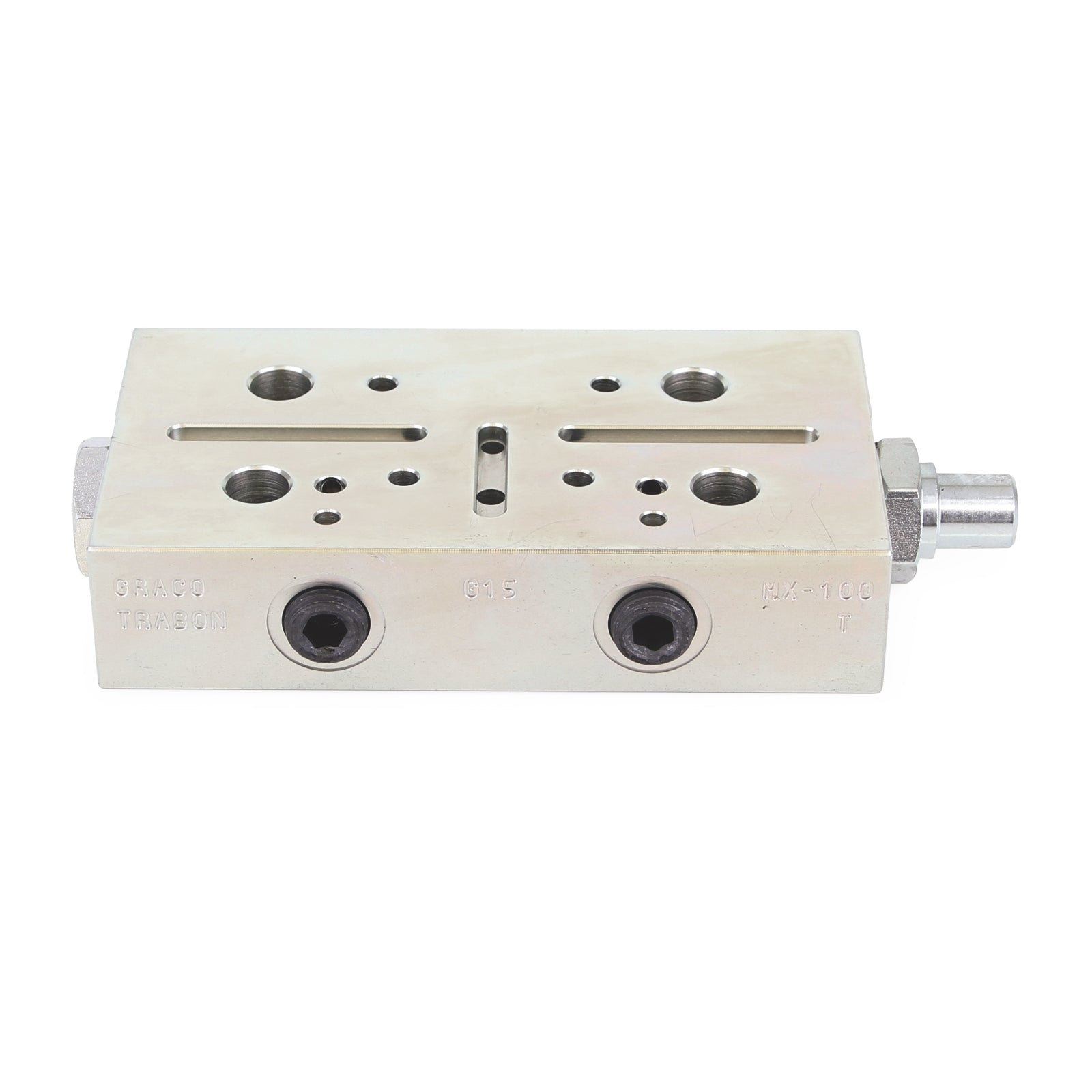

The GRACO 562527 is a modular divider valve designed for use in automatic lubrication systems. It is constructed from robust materials suitable for industrial environments and is intended to accurately meter and distribute lubricant to multiple points within machinery. The right hand cycle pin indicator allows for easy monitoring of valve operation.

Key Features:

• Divider Valve with Cycle Pin Indicator
• MX-150T, 0.150 in³ (2.46 cm³) displacement per cycle
• 0.150 in³ (2.46 cm³) per cycle
• Designed for use with Trabon® MX Divider Valves and compatible with a wide range of industrial lubrication systems
• Right hand cycle pin indicator for easy monitoring
• Modular design for flexible configuration
• Durable construction for harsh environments
• Built-in outlet check valves for accurate lube delivery
• Easy to accessorize and maintain

Applications:
Ideal for lubricating large bearings and critical lubrication points in heavy-duty industrial environments such as steel mills, paper mills, mining, and other in-plant machinery.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing lubrication systems.
• Ensure proper torque settings for all fasteners (see general Trabon MX series torque recommendations: Tie Rod Nut: 6-9 ft lbs, Valve Section Mounting Screw: 12-13 ft lbs, Indicator Port Plug: 12-15 ft lbs, Enclosure Plug: 46-50 ft lbs)
• Verify compatibility with your lubrication system before installation
• Follow manufacturer’s instructions for assembly and maintenance
• Regularly inspect cycle pin indicator for proper operation
