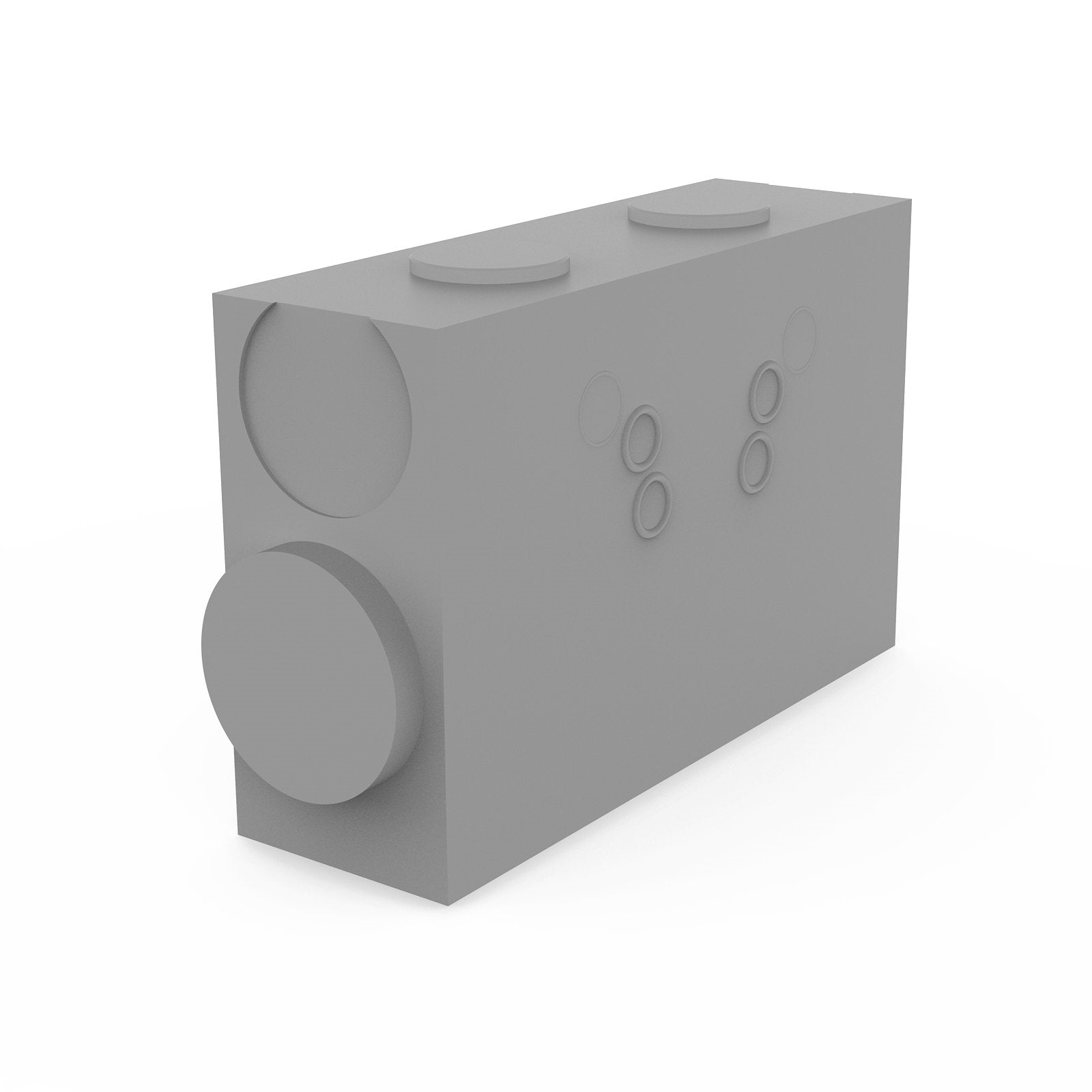

The Trabon® MGO Modular Divider Valve (SKU:. 562573) is a heavy-duty divider valve constructed from carbon steel, designed for precise metering and distribution of oil or grease in industrial machinery. It is intended for use in in-plant machinery lubrication systems, particularly where high pressure and wide temperature variations are present.

Key Features:

• Divider Valve
• MGO-600S, 1.200 in³ (19.7 cm³) per piston stroke
• Carbon Steel
• 1.200 in³ (19.7 cm³) per piston stroke
• Maximum working pressure: 6000 psi (413.7 bar, 41370 kPa, 421.8 kg/cm²); Minimum working pressure: 200 psi
• Oil, Grease (up to NLGI Grade #2)
• Modular design for easy expansion or reduction of outlets
• High pressure capability
• Metered lubricant delivery
• Valve bores match hone-fitted to metering pistons
• Viton O-ring seals standard
• Cycle rate up to 185 cycles/min
• Maximum operating temperature: 176°C
• Single outlet (7/8" SAE ORB, female thread)
• No cycle indicator

Applications:
Ideal for large circulating oil systems or hydraulic balancing systems in heavy industrial environments such as paper and rubber mills. Suitable for lubricating large bearings and other critical points in in-plant machinery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Preferred mounting is with pistons in horizontal position and inlet at top
• Use discharge check valves for intermittent operation
• Divider systems should be limited to first and second stages only; third staging is not recommended
• Each single (S) section has one outlet; ensure unused outlets are properly plugged
• Refer to Trabon bulletins L20101, L20105, and L20115 for system design guidance
