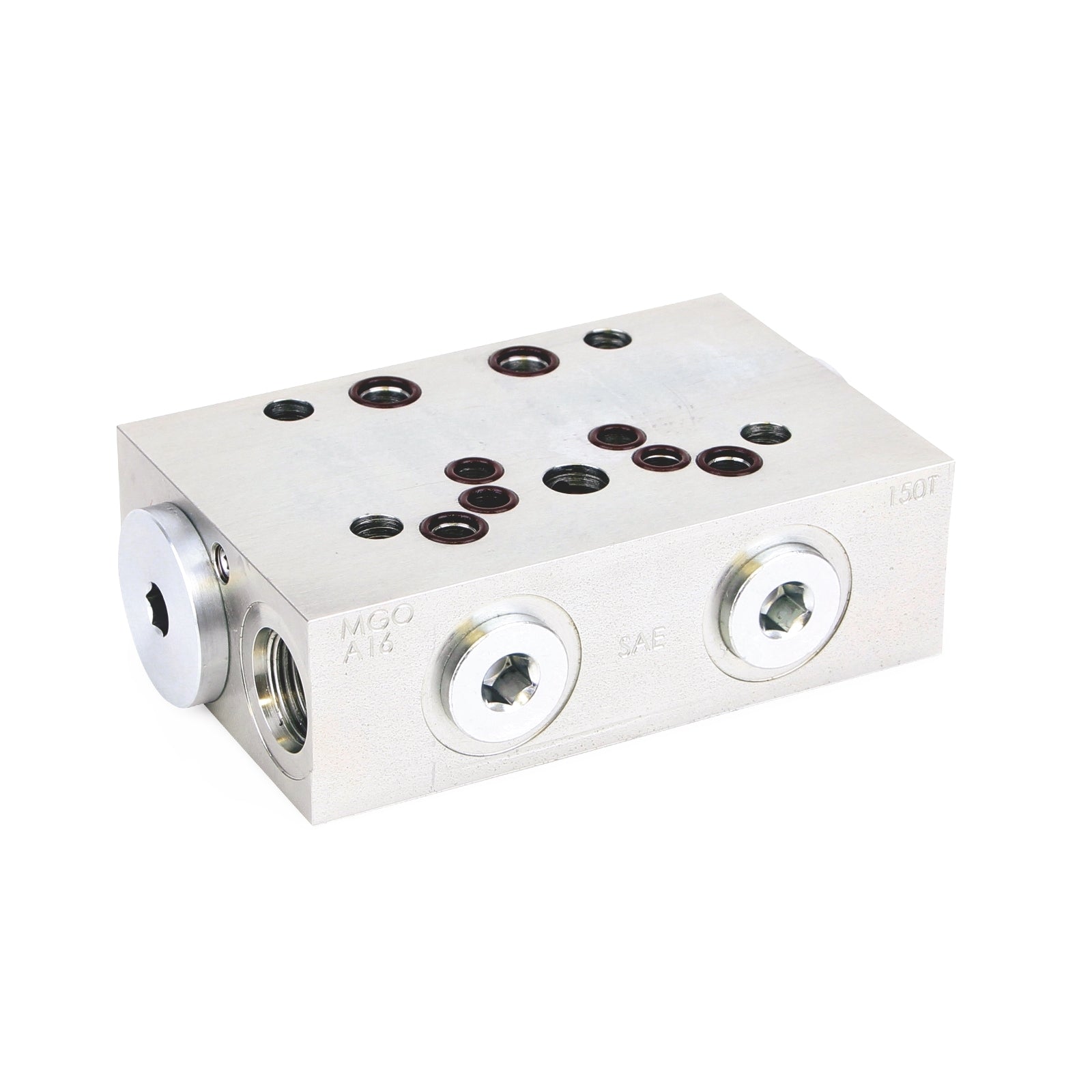

The GRACO Trabon® MGO Modular Divider Valve (SKU:. 562574) is a heavy-duty, modular divider valve constructed from carbon steel. It is designed to deliver precise, metered amounts of oil or grease to multiple lubrication points in industrial machinery, particularly in environments with wide temperature variations and high pumping volumes. This valve is commonly used in large circulating oil systems or hydraulic balancing systems found in industries such as paper and rubber mills.

Key Features:

• Divider Valve
• MGO-150T, 0.150 in³ (2.46 cm³) per piston stroke
• Carbon Steel
• Discharge per piston stroke: 0.150 in³ (2.46 cm³)
• Maximum working pressure: 6,000 psi (413 bar, 41,300 kPa); Minimum working pressure: 200 psi
• Oil, Grease (up to NLGI Grade #2)
• Modular design allows for easy addition or removal of lubrication outlets
• High-pressure capability for heavy-duty service
• Valve bores match hone-fitted to metering pistons
• Viton O-ring seals standard for reliability
• Designed for wide temperature variations and high pumping volumes
• Cycle indicator: None

Applications:
Ideal for large circulating oil systems or hydraulic balancing systems in industrial settings such as paper and rubber mills. Suitable for in-plant machinery requiring precise, metered lubrication to multiple points.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure proper alignment and secure mounting of the valve
• Use recommended torque settings for all connections (see manual for specific values)
• Check for leaks and proper operation after installation
• Regularly inspect O-rings and seals for wear and replace as needed
• Follow manufacturer’s guidelines for installation and maintenance
• Use only compatible lubricants as specified
• Periodically check for proper operation and cycle rates
