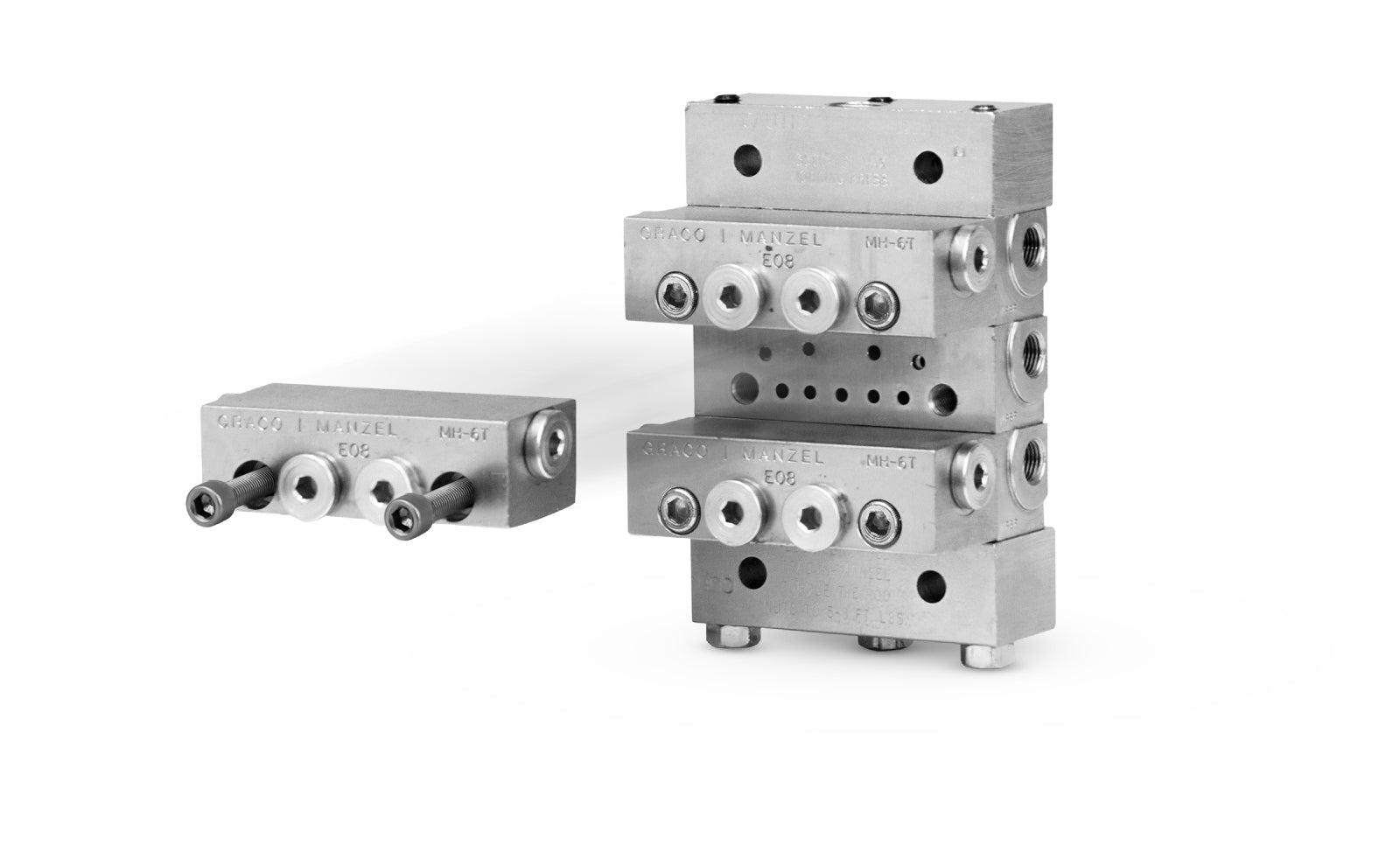

The Manzel® MHH Modular Divider Valve .024 Twin is a steel divider valve designed for precise lubrication delivery in high-pressure applications. It is intended for use with oil and grease in in-plant machinery and compressor equipment, ensuring accurate and reliable lubrication distribution.

Key Features:

• Divider Valve
• MHH Series, .024 Twin
• Steel
• Discharge per piston stroke: 0.024 in³
• Maximum working pressure: 7500 psi (517 bar, 51700 kPa)
• Oil, Grease (Maximum NLGI Grade #2)
• Modular, stackable sub-plate design for easy integration and maintenance
• Cycle pin indicator for monitoring operation
• Quick change valve sections for efficient service
• Highly accurate lube delivery for demanding applications
• Direct replacement for MHP valves

Applications:
In-plant machinery, compressor equipment, and similar industrial applications requiring precise, high-pressure lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of lubrication systems.
• Ensure proper torque for mounting screws (8-9 ft-lbs), indicator port (8-9 ft-lbs), and tie rod and nut (5-8 ft-lbs)
• Use correct thread types (NPS, SAE) for inlet and outlet connections
• Follow manufacturer guidelines for installation and maintenance to prevent leaks and ensure long service life
• Regularly check cycle pin indicator for proper operation
