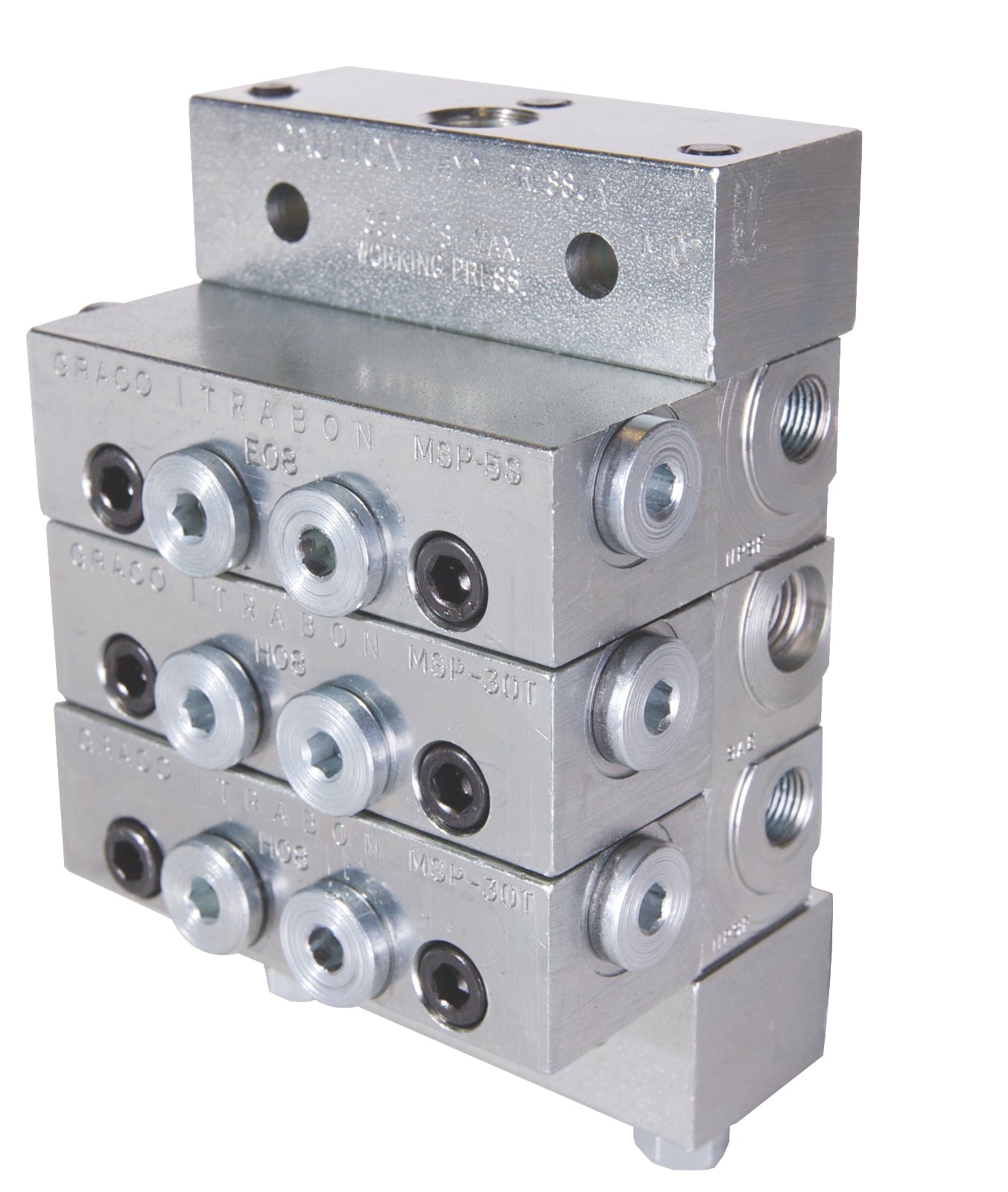

The Trabon® MSP Modular Divider Valve (MSP-35S) is a carbon steel component designed to accurately divide and distribute lubricant (oil or grease) within lubrication systems. It is intended for use in on-road vehicles, off-road equipment, and in-plant machinery to ensure precise lubrication delivery.

Key Features:

• Divider Valve
• MSP-35S - 0.070 in³ (1.15 cm³)
• Carbon Steel
• Discharge per piston stroke: 0.070 in³ (1.15 cm³)
• Maximum working pressure: 3500 psi (241 bar, 24100 kPa); Minimum working pressure: 200 psi (14 bar)
• Oil, Grease (Maximum NLGI Grade #2)
• Modular design for easy maintenance and quick change of valve sections without disturbing lube lines
• High reliability and industry-standard quality
• Maximum cycle rate: 200 cycles/min
• Maximum operating temperature: 350°F (176°C)
• Single outlet configuration

Applications:
On-road vehicles, off-road equipment, in-plant machinery

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure proper torque on tie rod nuts (12 ft. lbs / 16.3 N.m), enclosure plugs (11-13 ft. lbs / 14.9-17.6 N.m), and outlet port plugs (6-7 ft. lbs / 8.1-9.5 N.m) as per general divider valve guidelines
• Verify compatibility with system lubricant and pressure requirements before installation
• Regularly inspect for leaks and proper operation
