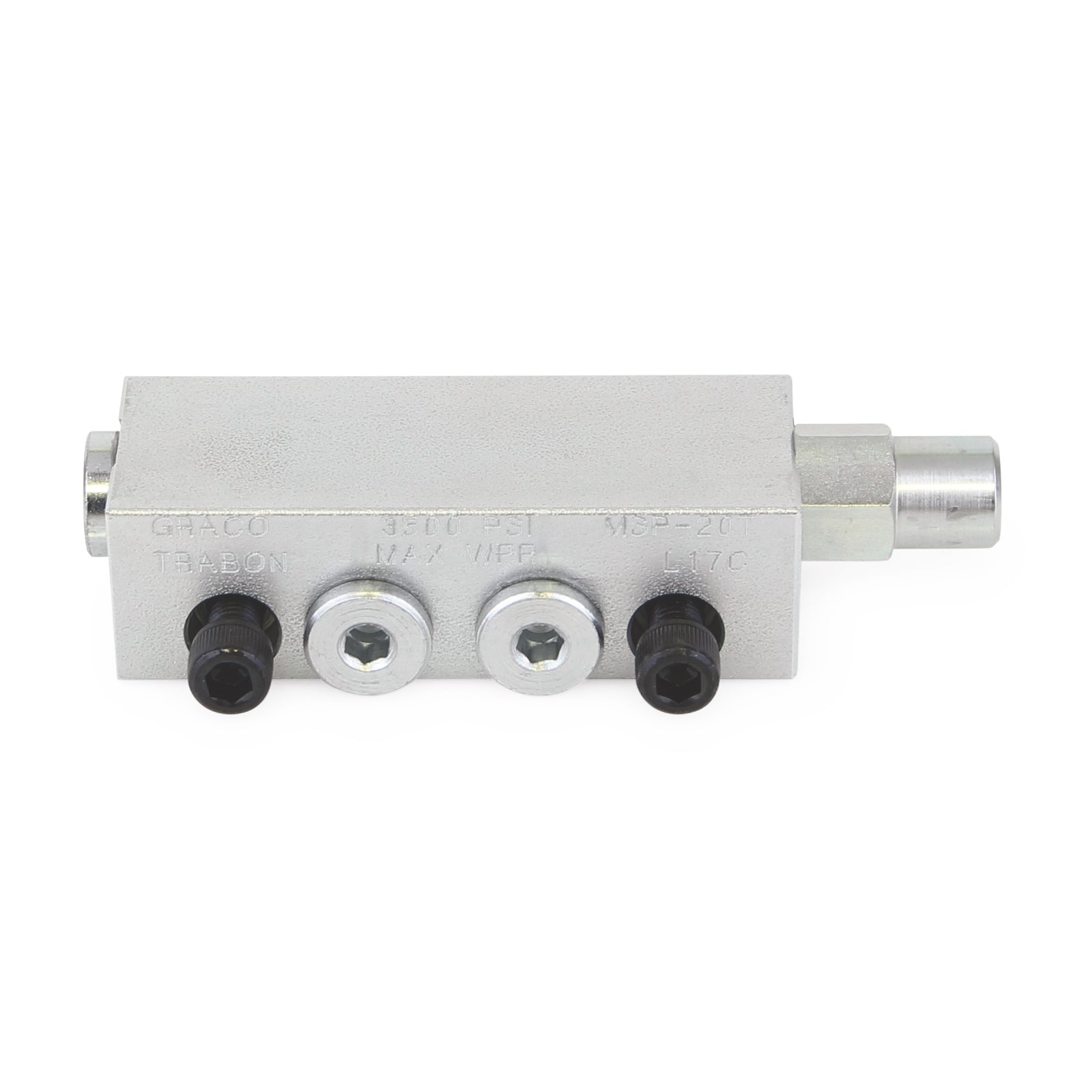

The Trabon® MSP Modular Divider Valve (SKU:. 562740) is a carbon steel valve designed to precisely divide and deliver lubricant (oil or grease) to multiple points in lubrication systems. It is intended for use in on-road vehicles, off-road equipment, and in-plant machinery, ensuring accurate and reliable lubrication distribution.

Key Features:

• Divider Valve
• MSP-25T - 0.025 in³ (0.41 cm³)
• Carbon Steel
• Discharge per piston stroke: 0.025 in³ (0.41 cm³)
• Maximum working pressure: 3500 psi (241 bar); Minimum working pressure: 200 psi (14 bar)
• Oil, Grease (up to NLGI #2)
• Cycle indicator for positive feedback
• Modular, stackable design for flexibility
• Fluoroelastomer o-ring sealing for leak prevention
• Built-in check valves prevent lube re-entry
• Maximum cycle rate: 60 cycles/min
• Maximum operating temperature: 350°F (176°C)
• Number of outlets: 2

Applications:
On-road vehicles, off-road equipment, in-plant machinery

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Each assembly requires valve sections with working pistons (minimum 3), subplates with outlet ports, inlet section, and end sections.
• Field-installable crossport or singling plates may be used to increase flow to a single point or accommodate an odd number of lube points.
• A bypass section is available to eliminate a piston section or provide for added lube points in the future.
• When bypass sections are used, the assembly must have a minimum of 3 working sections in addition to one or more bypass sections.
• Ensure proper alignment and secure all connections to prevent leaks and maintain system integrity.
