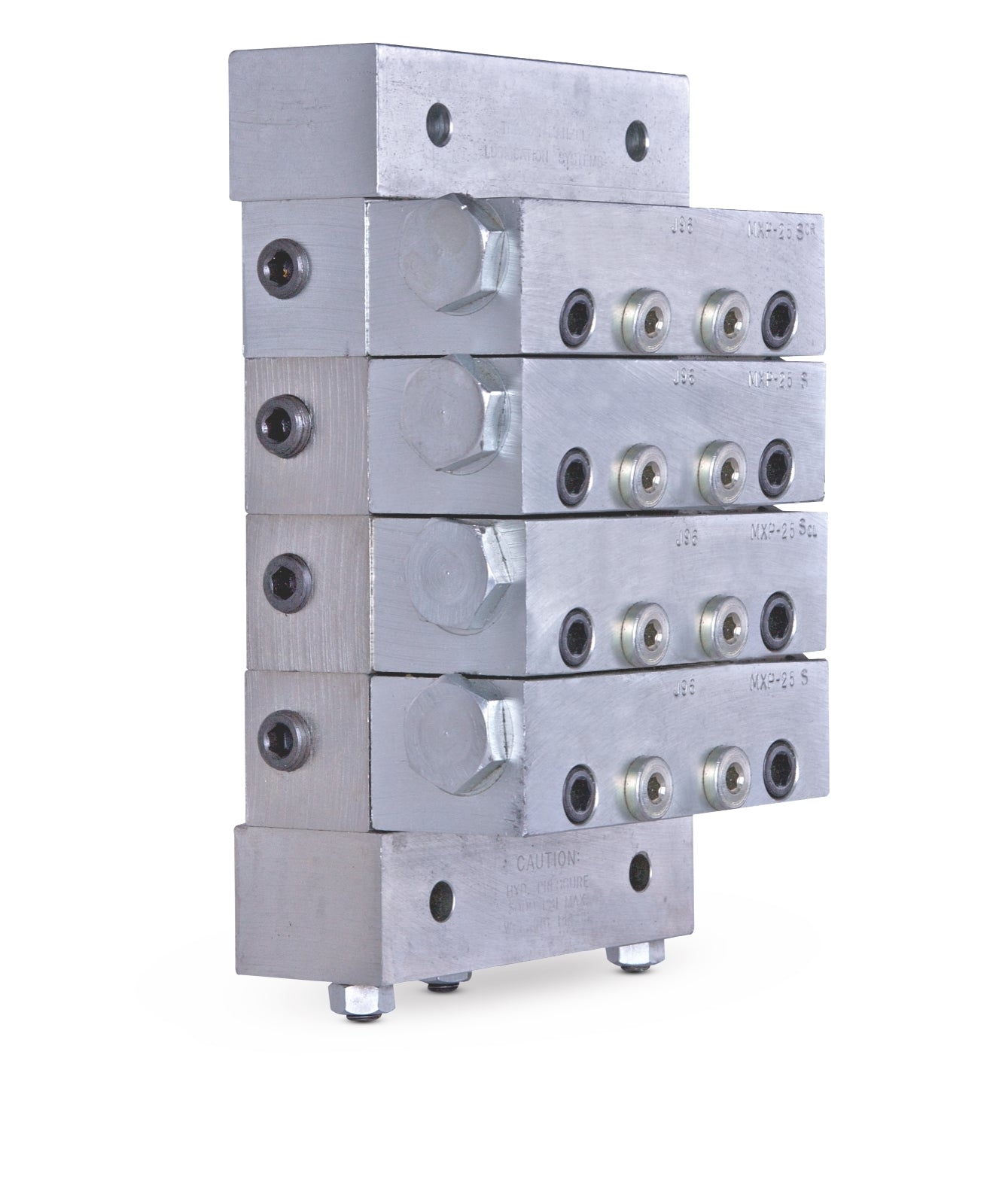

The Trabon® MXP Modular Divider Valve is a robust, modular divider valve designed for precise lubrication distribution in heavy-duty and large bearing applications. Constructed from carbon steel, it is engineered to handle oil and grease up to NLGI Grade #2, making it suitable for off-road equipment and in-plant machinery.

Key Features:

• Divider Valve
• MXP-100T - 0.100 in³ (1.64 cm³)
• Carbon Steel
• Discharge per piston stroke: 0.100 in³ (1.64 cm³)
• Maximum working pressure: 3000 psi (207 bar, 20700 kPa); Minimum working pressure: 200 psi
• Oil, Grease (up to NLGI Grade #2)
• Modular design for easy maintenance and expansion
• Cycle indicator for positive assurance of lube event
• Quick-change valve sections for minimal downtime
• Robust, virtually indestructible construction for extreme environments
• Alternate outlet ports for optional performance indicators
• Maximum cycle rate: 60 cycles/min
• Maximum operating temperature: 350°F (176°C)

Applications:
Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements. Commonly used in off-road equipment and in-plant machinery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all connections are secure and free from leaks before operation
• Use appropriate torque settings for tie rods and outlet port plugs as specified in the manual
• Install cycle indicators or proximity switches for monitoring and troubleshooting
• Regularly inspect for wear and proper cycling to maintain system integrity
• Periodically check for proper cycling and indicator function
• Replace worn or damaged valve sections promptly
• Keep the system clean and free from contaminants
• Follow manufacturer’s recommendations for lubricant type and maintenance intervals
