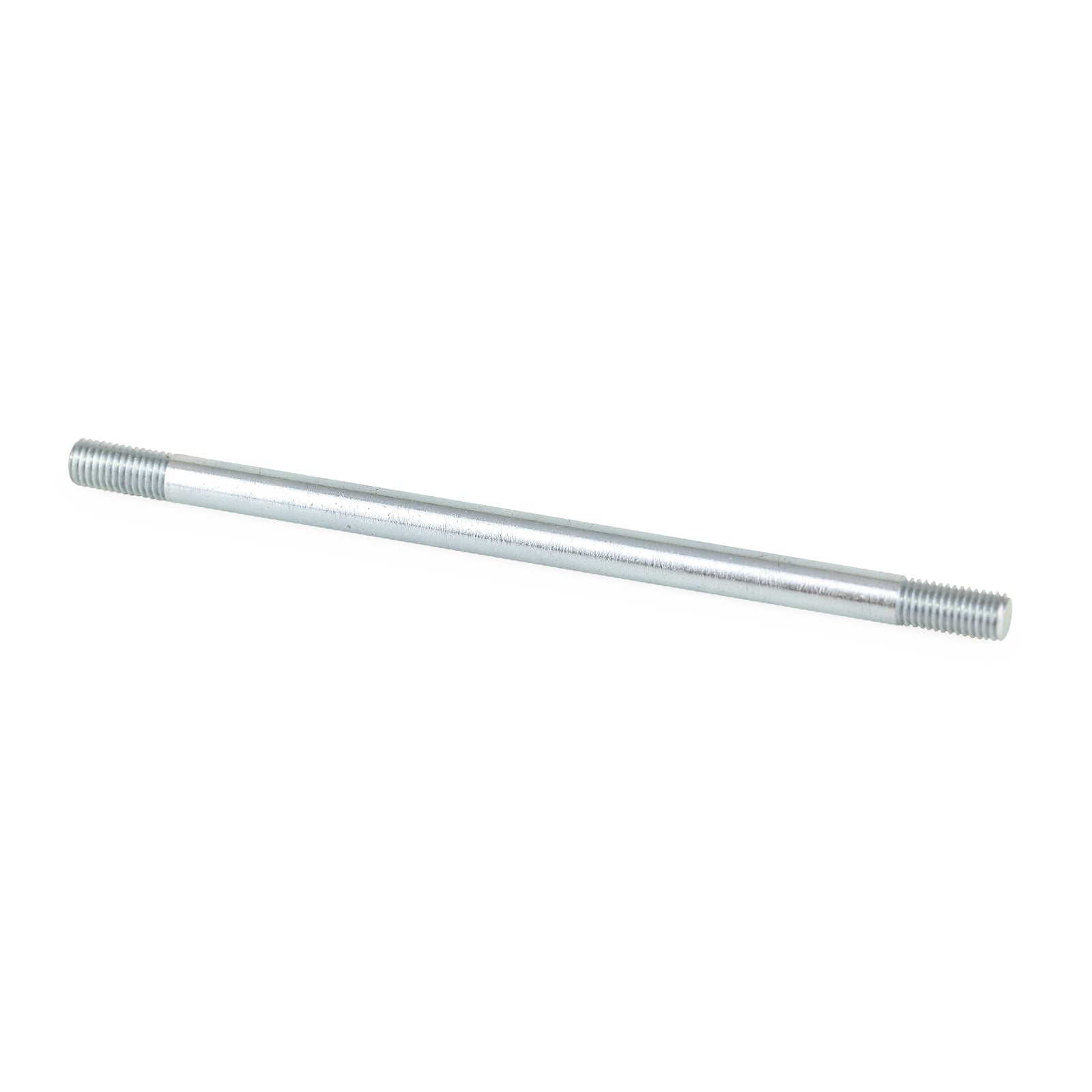

The GRACO 563520 is a tie rod specifically designed for assembling the Trabon® MXP modular divider valve system. It is typically made from high-strength steel and is used to securely fasten together up to ten divider valve sections, ensuring structural integrity and leak-free operation within automatic lubrication systems.

Key Features:

• Tie Rod
• For 10-section divider valve assembly
• High-strength steel (assumed, not explicitly stated in available documentation)
• Compatible with Trabon® MXP modular divider valve assemblies
• Essential for modular assembly of up to 10 divider valve sections
• Ensures secure and leak-free connection
• Three tie rods and three nuts required per divider assembly

Applications:
Used in automatic lubrication systems to assemble modular divider valves, which distribute lubricant to multiple points in industrial machinery.

Installation Notes:

• Using genuine GRACO tie rods ensures proper fit, assembly integrity, and system reliability.
• Use three tie rods and three nuts per divider assembly as specified
• Follow torque specifications for tie rod nuts as recommended in the equipment manual
• Ensure all components are clean and free from debris before assembly
• Regularly inspect tie rods for wear or damage during maintenance
