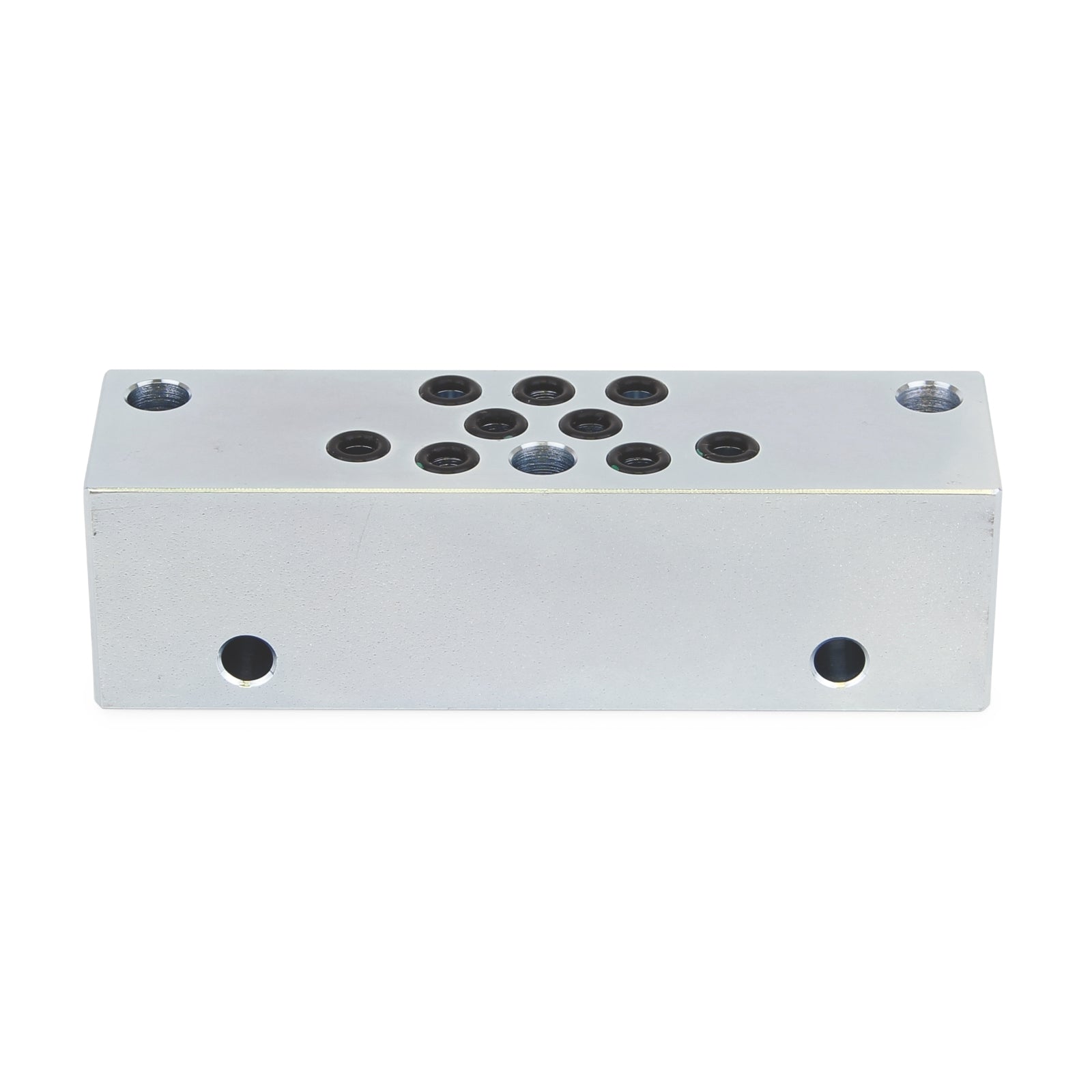

The GRACO 563521 is an intermediate base plate for the Trabon® MXP Divider Valve, constructed from zinc-plated steel. It is designed to serve as a modular component within automatic lubrication systems, enabling the distribution of oil or grease to multiple lubrication points in industrial equipment.

Key Features:

• Divider Valve Intermediate Base Plate
• MXP Series, 9/16-18 SAE-ORB
• Zinc-plated steel
• Maximum 3,000 psi (207 bar)
• Compatible with Trabon® MXP Divider Valve assemblies; supports modular expansion up to 10 sections
• Modular design for easy expansion and maintenance
• Quick-change valve sections minimize downtime
• Built-in outlet check valves for accurate lube delivery
• Supports cycle indicator pins and proximity switches for monitoring
• Choice of SAE, BSPP, or NPSF inlet/outlet port threads
• Alternate outlet ports for optional performance indicators

Applications:
Used in automatic lubrication systems for distributing oil or grease to multiple lubrication points in industrial machinery, suitable for large-scale mining, manufacturing, and agricultural equipment.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Assemble using tie rods and nuts as specified in the manual
• Torque tie rod nuts to 6-9 ft. lbs, enclosure plugs to 48 ± 2 ft. lbs, and valve section mounting screws to 12-13 ft. lbs
• Ensure all connections are secure and leak-free before operation
• Regularly inspect for wear and proper function of cycle indicators
