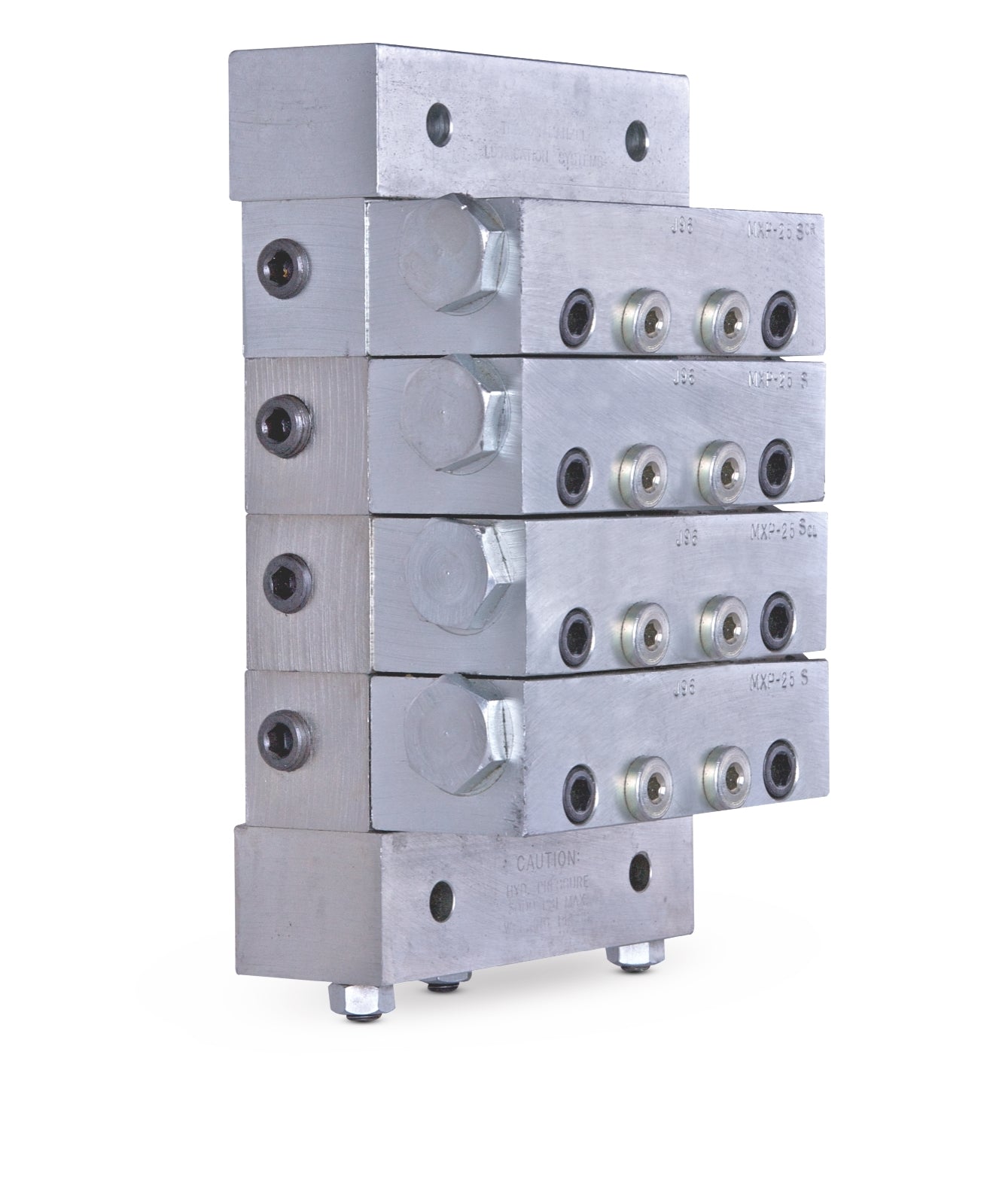

The GRACO 563522 is an intermediate base plate for the Trabon® MXP modular divider valve system, designed to connect and support multiple valve sections in a progressive lubrication system. Its material is not explicitly specified, but typical base plates in this series are robustly constructed for industrial environments. The part is intended for use within GRACO automatic lubrication equipment to facilitate modular assembly and reliable distribution of oil or grease to multiple lubrication points.

Key Features:

• Intermediate Base Plate
• Trabon® MXP, 1/4-19 BSPP
• Compatible with Trabon® MXP modular divider valves and related accessories
• Modular design for easy assembly and maintenance
• Allows quick change of valve sections without disturbing lube lines
• Supports up to 20 lubrication points with a complete assembly
• Robust construction for extreme environments
• Facilitates use of cycle indicators and performance monitoring

Applications:
Used in heavy-duty and large bearing applications with wide temperature variations and high volume requirements. Ideal for in-plant machinery, mining, and industrial equipment requiring reliable, modular lubrication systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all connections are clean and free of debris before assembly
• Follow torque specifications for all fittings and fasteners
• Use appropriate tools to avoid damaging threads or sealing surfaces
• Inspect for leaks after installation and during initial operation
• Consult the equipment manual for specific installation procedures
• Regularly inspect for leaks or blockages
• Replace worn or damaged components promptly
• Use only compatible lubricants and accessories
• Monitor cycle indicators for proper valve operation
