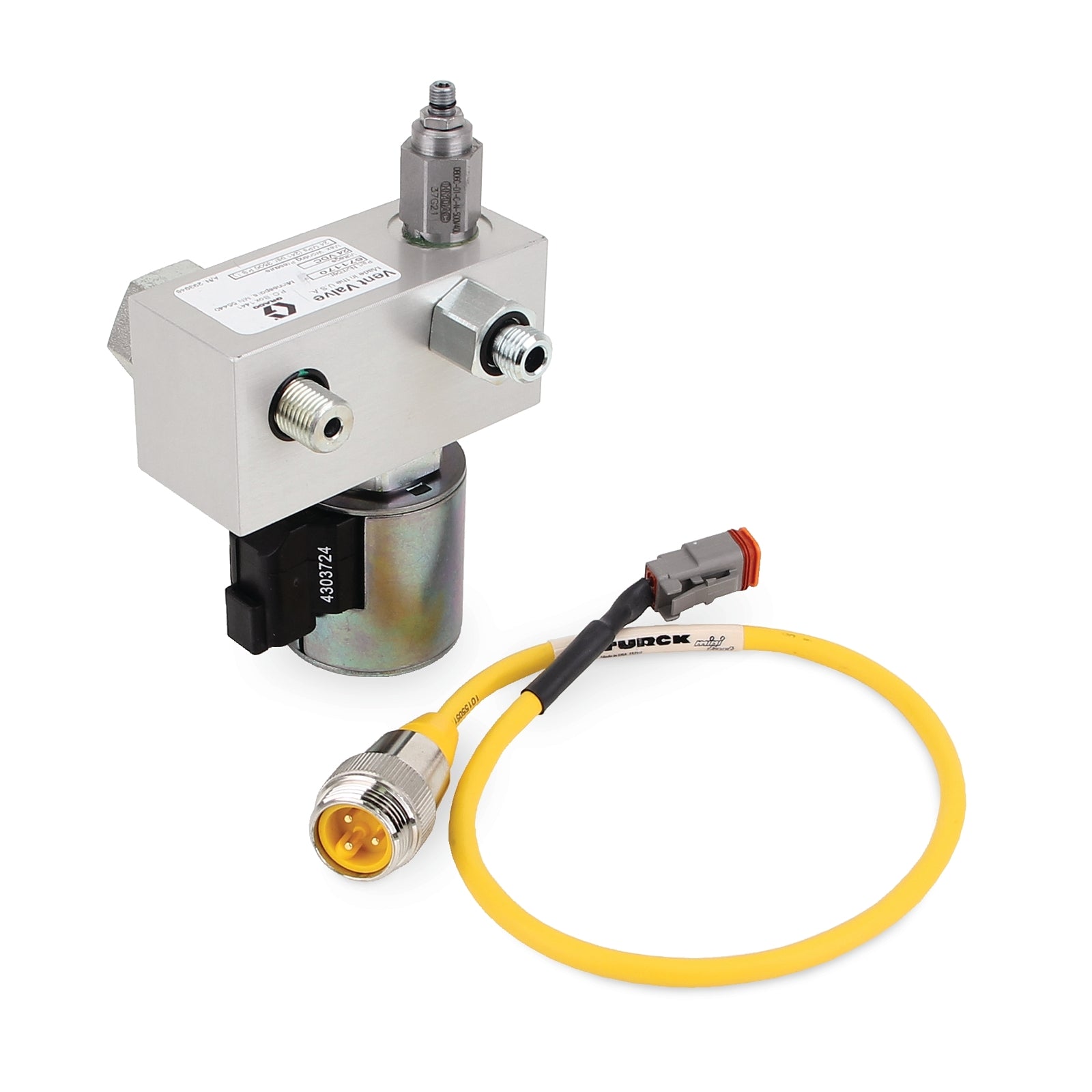

The GRACO 571170 is a direct-mount vent valve designed for use with G3™ Electric Lubrication Pumps. It is constructed for compatibility with oil and grease, and is intended to simplify the installation of injector-based lubrication systems on both on-road and off-road equipment.

Key Features:

• Vent Valve
• 571170
• Maximum flow rate: 5 gpm (19 l/min)
• Maximum working pressure: 3500 psi (241 bar, 24100 kPa, 24 MPa); Factory set pressure: 4000 psi (280 bar, 28000 kPa)
• For use with G3™ Pumps
• Direct-mount design for easy installation
• Normally closed (NC) operation
• Right-hand (RH) configuration
• NPT inlet and outlet thread type
• Relief rate: 0.13 gps

Applications:
On-road vehicles and off-road equipment requiring injector-based lubrication systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance with G3™ Pumps.
• Disconnect power source before installation
• Relieve pressure if the unit has been in service
• Ensure o-rings are correctly installed on the alignment bolt
• Remove plug from G3 pump and install vent valve alignment bolt, torque to 30 in. lbs. (0.2 N.m)
• Grease o-ring and install in block opening
• Install vent valve mounting bolt through block and into G3 pump
• Regularly inspect o-rings and seals for wear
• Follow torque specifications during installation
• Consult manual for detailed maintenance procedures
