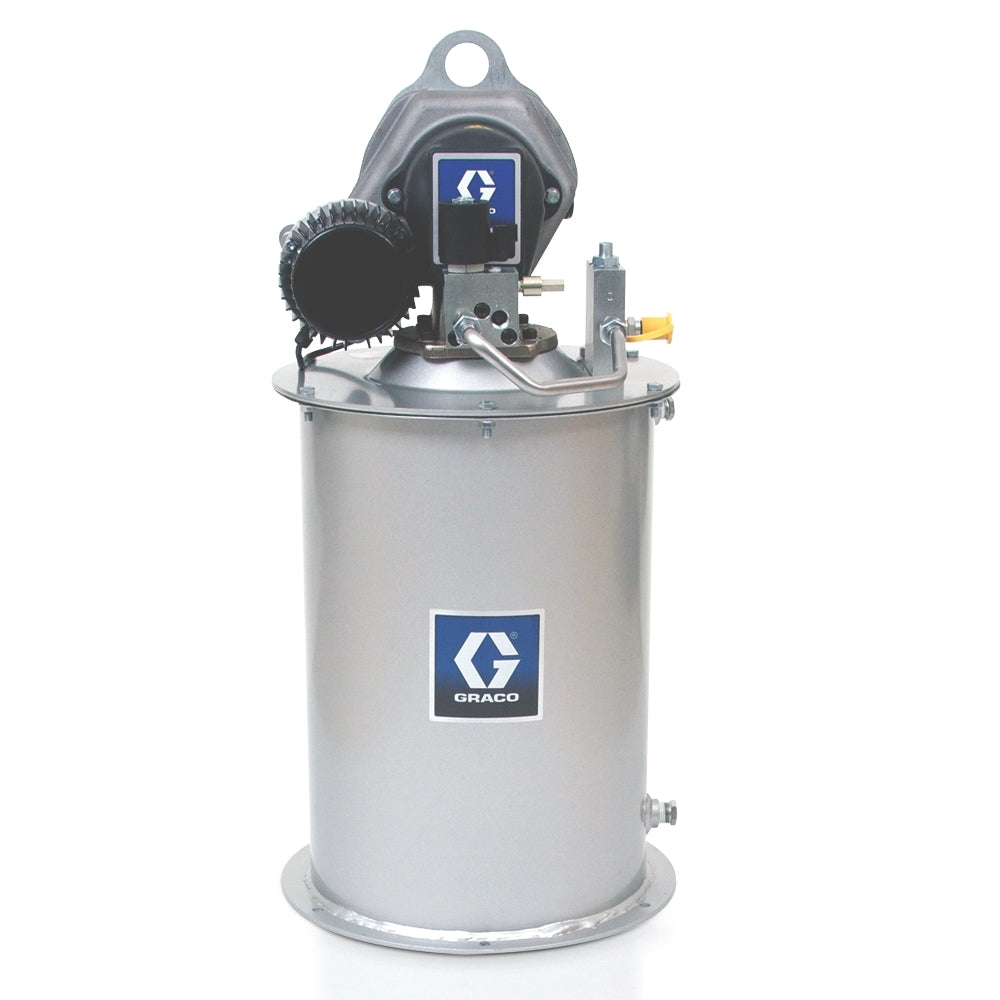

The GRACO 77X103 is an electric injector module designed for high-pressure lubrication systems. It features a 24 VDC HP pump, tube-in-tube design, vent valve, cover, and tank, and is intended for use with a 90 lb (41 kg) reservoir. This module is engineered for reliable, automated lubrication delivery in demanding industrial environments.

Key Features:

• Electric Injector Module with Pump
• HP 24 VDC, 90 lb (41 kg) Reservoir
• Designed for integration with GRACO lubrication systems and compatible with tube-in-tube lubrication lines
• IP69K (ingress protection rating for harsh environments)
• High-pressure pump for reliable lubrication delivery
• Tube-in-tube design for efficient and clean lubrication
• Vent valve for system maintenance and air release
• Cover and tank included for protection and storage
• Automated lubrication system operation (AFSO)
• Designed for ease of maintenance and reliability in industrial settings

Applications:
This module is suitable for automated lubrication systems in various industries, including mining, agriculture, manufacturing, and vehicle service, where reliable and efficient lubrication is critical for equipment longevity and performance.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, compatibility, and longevity of the lubrication system.
• Follow the equipment manual for proper installation and wiring
• Ensure all connections are secure and free from leaks
• Regularly inspect and maintain the vent valve and pump for optimal operation
• Use only compatible lubricants and accessories as recommended by GRACO
• Schedule routine maintenance checks
• Monitor system performance and address issues promptly
• Keep the module and reservoir clean and free from debris
