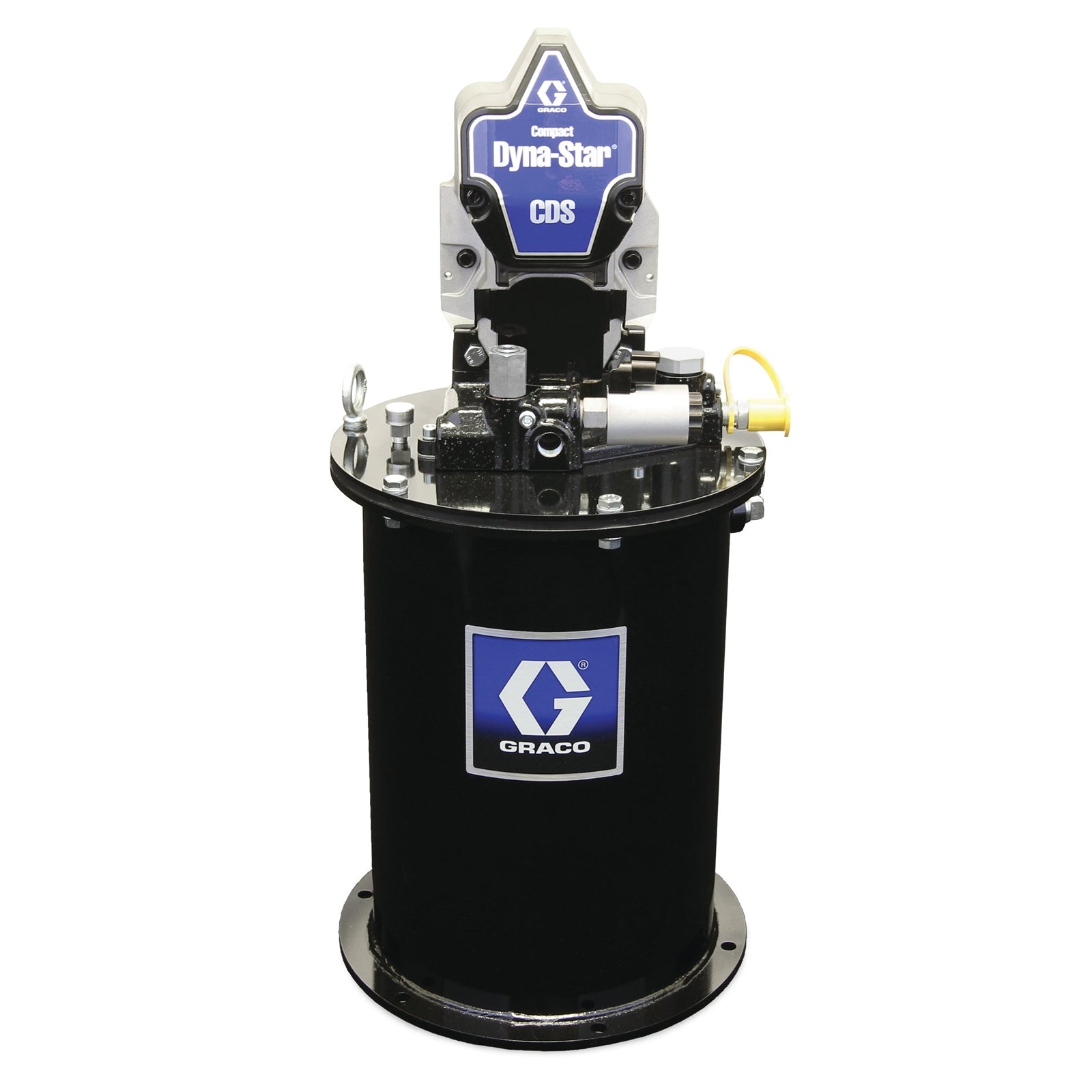

The GRACO CD1312 Compact Dyna-Star® is an electric, automatic lubrication pump designed for reliable grease delivery in demanding environments. It features a 12-liter reservoir with a follower plate for efficient grease usage, and includes pressure and level reporting for monitoring. The pump is constructed with robust materials for durability and is intended for use in in-plant machinery and off-road equipment.

Key Features:

• Electric automatic grease pump
• CD1312 (Compact Dyna-Star®), 12 L reservoir
• Robust, high-quality materials for long life; includes follower plate
• Maximum working pressure: 3500 psi
• Compatible with NLGI Grade 2 grease
• IP69K (for Compact Dyna-Star® series)
• Brushless DC motor for reliability and efficiency
• Pressure and level reporting for monitoring
• Vent-valve design for improved performance
• Compact footprint for space-saving installation
• High durability for harsh environments
• Easy maintenance and serviceability

Applications:
In-plant machinery, off-road equipment, and other industrial applications requiring reliable automatic lubrication.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure proper electrical connection to 24 VDC power supply
• Mount the pump securely in a location accessible for maintenance
• Connect grease lines according to equipment requirements
• Verify pressure and level reporting connections for monitoring
• Follow all safety and operational guidelines in the equipment manual
• Regularly check grease levels and reservoir condition
• Inspect for leaks and proper operation of the follower plate
• Monitor pressure and level reports for early detection of issues
• Schedule routine maintenance as recommended by GRACO
