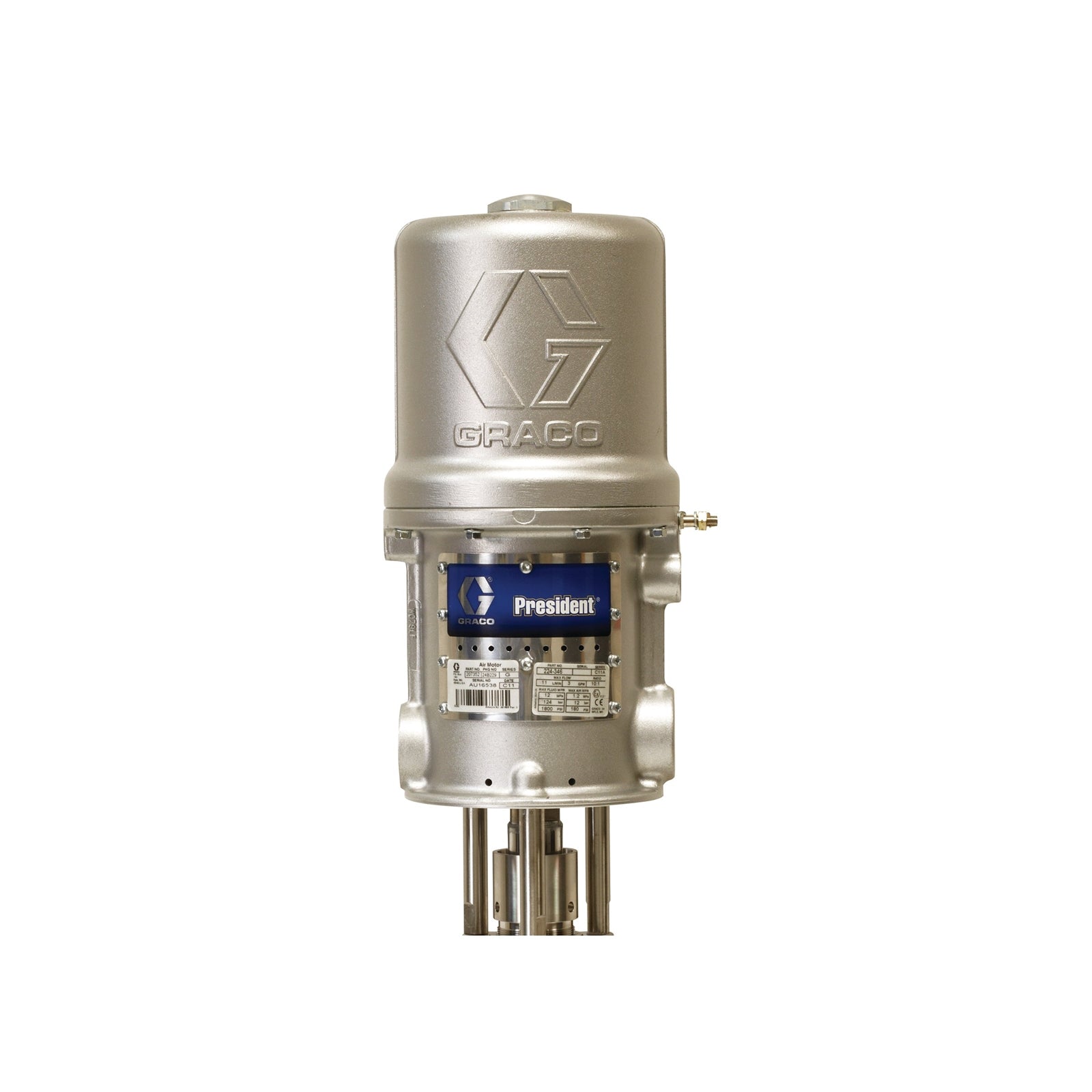

The GRACO 223184 is a pneumatic piston pump designed for reliable, low-maintenance operation in industrial fluid transfer applications. It features a 2-ball piston design for uniform flow and is constructed with robust materials including carbon steel and aluminum for durability. This pump is intended for use in equipment requiring consistent, high-pressure fluid delivery.

Key Features:

• Pneumatic 2-Ball Piston Pump
• President 4:1, CS, Stubby Length
• Supply and return tubes: Nickel-plated carbon steel; Air motor base: Aluminum; Seals: UHMWPE, Leather
• 8 gpm (30.4 liters/min) at 60 cycles per minute
• Maximum fluid working pressure: 400 psi (28 bar); Maximum air input pressure: 100 psi (7 bar)
• Designed for use with compatible GRACO fluid transfer systems and equipment
• Sound level tested in accordance with ISO 3744
• Reliable President air motor for low maintenance and long life
• Positive displacement, 2-ball piston design for uniform flow
• Stubby length for compact installation
• Ease of maintenance and robust construction

Applications:
Industrial fluid transfer, lubrication systems, and other applications requiring consistent, high-pressure fluid delivery in mining, agriculture, and manufacturing environments.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety in demanding industrial environments.
• Mount the pump on a wall or stand for stability
• Connect a suction line to the 1-1/2 in. NPT(F) fluid inlet and place the other end in the fluid container
• Ensure the suction line is 1/2 in. (13 mm) off the bottom of the fluid container
• Use appropriate fittings for air and fluid connections as specified in the manual
• Regularly inspect and maintain seals and wetted parts for longevity
