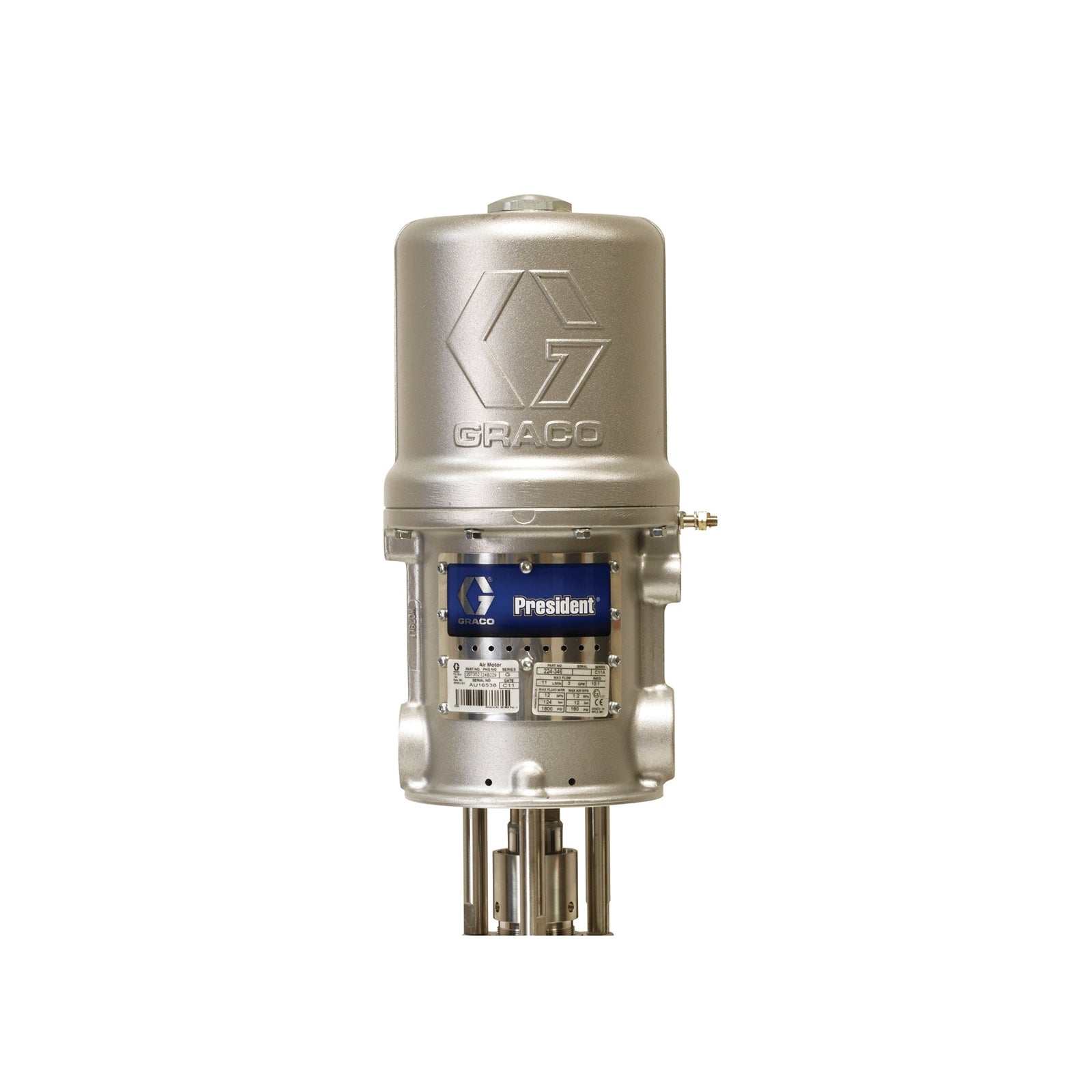

The GRACO 223586 is a pneumatic positive displacement pump designed for reliable, low-maintenance operation. It features a two-ball piston design for uniform and easily controlled delivery of liquid coatings. The wetted material is carbon steel, making it suitable for handling a variety of fluids including solvents, waterborne and cleaning fluids, stains, lacquers, varnishes, acid-catalyzed materials, resins, and high solid or plural component coatings.

Key Features:

• Pneumatic Piston Pump
• 30:1 ratio, Stubby Length
• Carbon Steel (wetted parts)
• Suitable for use with a wide range of liquid coatings and fluids as listed above
• ATEX, CE
• Reliable air motor for long life and low maintenance
• Positive displacement, two-ball piston design for uniform delivery
• Stubby length for mounting and application flexibility
• Designed for easy maintenance and reliable operation

Applications:
Used for circulation and supply of liquid coatings in industrial settings, including in-plant manufacturing environments. Suitable for handling solvents, waterborne fluids, stains, lacquers, varnishes, acid-catalyzed materials, resins, and high solid or plural component coatings.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety of the equipment.
• Ensure proper mounting for stubby length models to maximize flexibility and ease of access
• Follow manufacturer guidelines for air supply and fluid connections
• Regularly inspect and maintain seals and wetted parts for longevity
• Use only compatible fluids as specified by GRACO
• Perform routine maintenance as recommended in the equipment manual
• Consult a GRACO specialist for installation and troubleshooting
