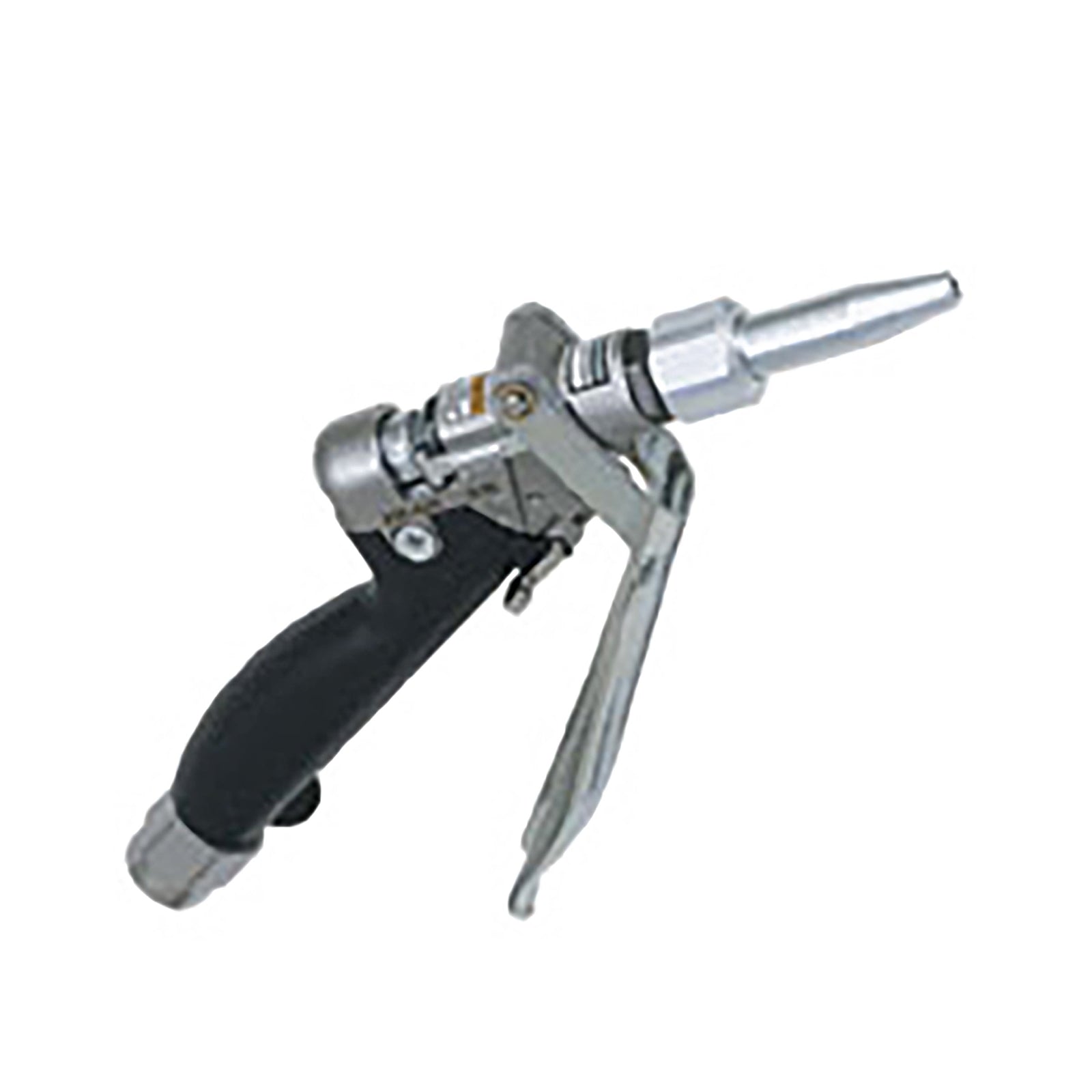

The GRACO 235628 Ultra-Lite 6000 Flow Gun is a manual dispense gun designed for high-pressure applications. It is constructed for durability and operator comfort, intended for use in bonding, sealing, gasketing, potting, and encapsulation tasks within industrial equipment. The main body is typically made from robust metal and composite materials to withstand high pressures and frequent use.

Key Features:

• Dispense Gun
• Ultra-Lite 6000
• Maximum working pressure: 6000 psi (41.5 MPa, 415 bar, 41500 kPa, 422 kg/cm²)
• Threaded or flange connections; 1/2" female NPT inlet
• 150° head/handle angle for operator comfort
• Changeable tips for versatile dispensing needs
• Lightweight (1.375 lb / 0.62 kg)
• Manual activation
• Single output
• Nozzle size: 0.19 in (4.826 mm)

Applications:
Bonding, sealing, gasketing, potting, and encapsulation in industrial settings.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with GRACO equipment.
• Secure the fluid tube with the setscrew and torque to 6–10 in-lbs (0.7–1.13 N·m)
• When tightening connections, grip the gun body, not the handle, to avoid damage
• Adjust the free travel of the trigger as instructed in the manual
• Apply lithium base grease and low strength anaerobic sealant (blue) as recommended
• Regularly inspect and maintain seals and connections
• Follow torque specifications for all fasteners
• Use only recommended lubricants and sealants
