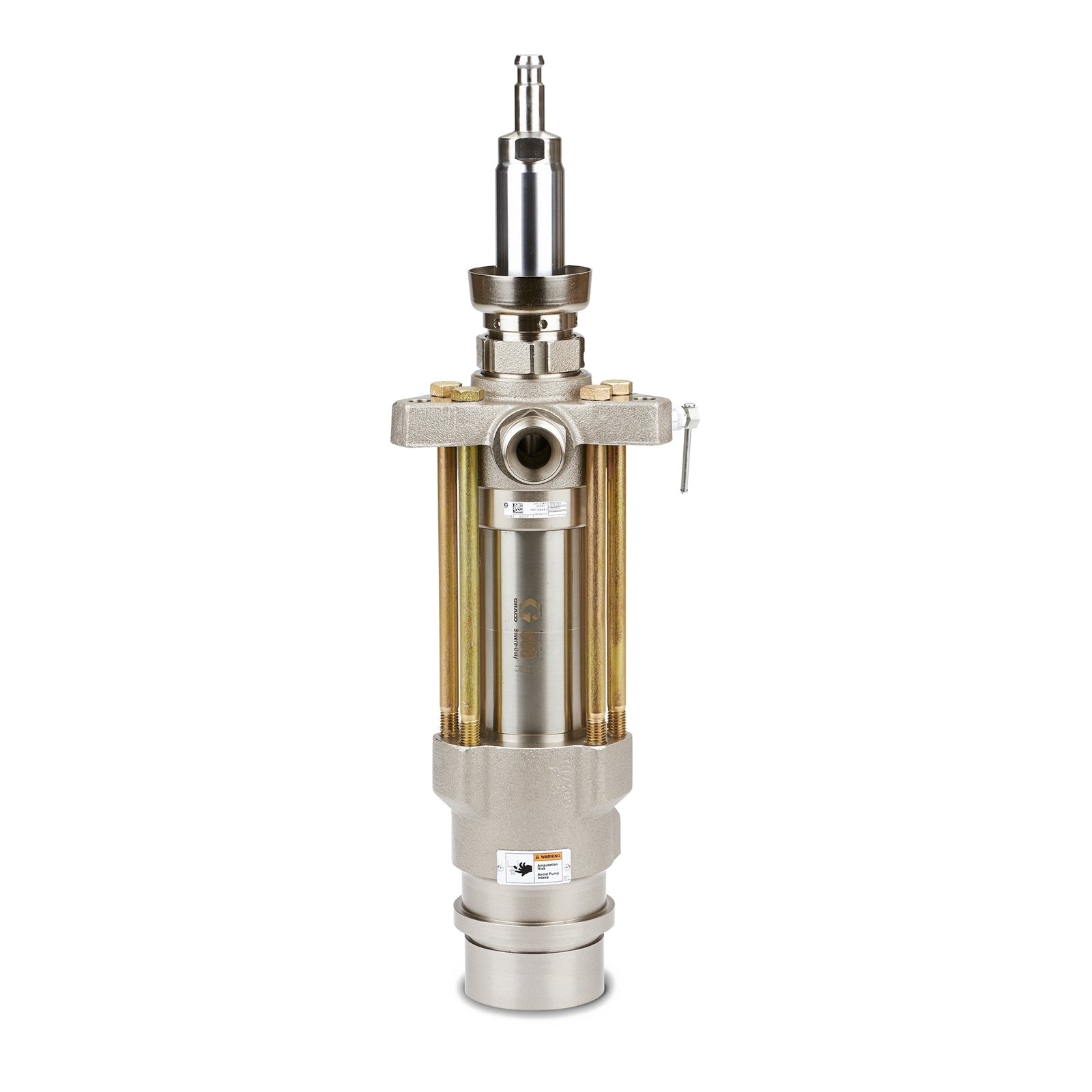

The GRACO L500CS is a heavy-duty lower assembly for Check-Mate 500 displacement pumps, constructed from carbon steel for enhanced durability. It is engineered for severe duty applications, providing reliable performance in demanding industrial environments such as lubrication and maintenance systems.

Key Features:

• Lower assembly for displacement pump
• Check-Mate 500 (500cc displacement)
• Carbon steel, severe duty
• Compatible with Check-Mate 500 displacement pumps
• Engineered for lasting, heavy-duty performance
• Designed for reliability and long service life
• Suitable for severe duty cycles
• Supports expert setup and installation guidance

Applications:
Used in industrial lubrication and maintenance systems, particularly in environments requiring robust, high-capacity fluid handling such as mining, agriculture, and large-scale manufacturing.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Follow manufacturer’s instructions for disassembly and reassembly
• Ensure proper alignment and secure mounting
• Use recommended tools and procedures for installation
• Consult GRACO specialists for personalized setup and installation support
• Regular inspection for wear and damage
• Use only recommended replacement parts
• Follow GRACO’s maintenance schedule as outlined in the manual
