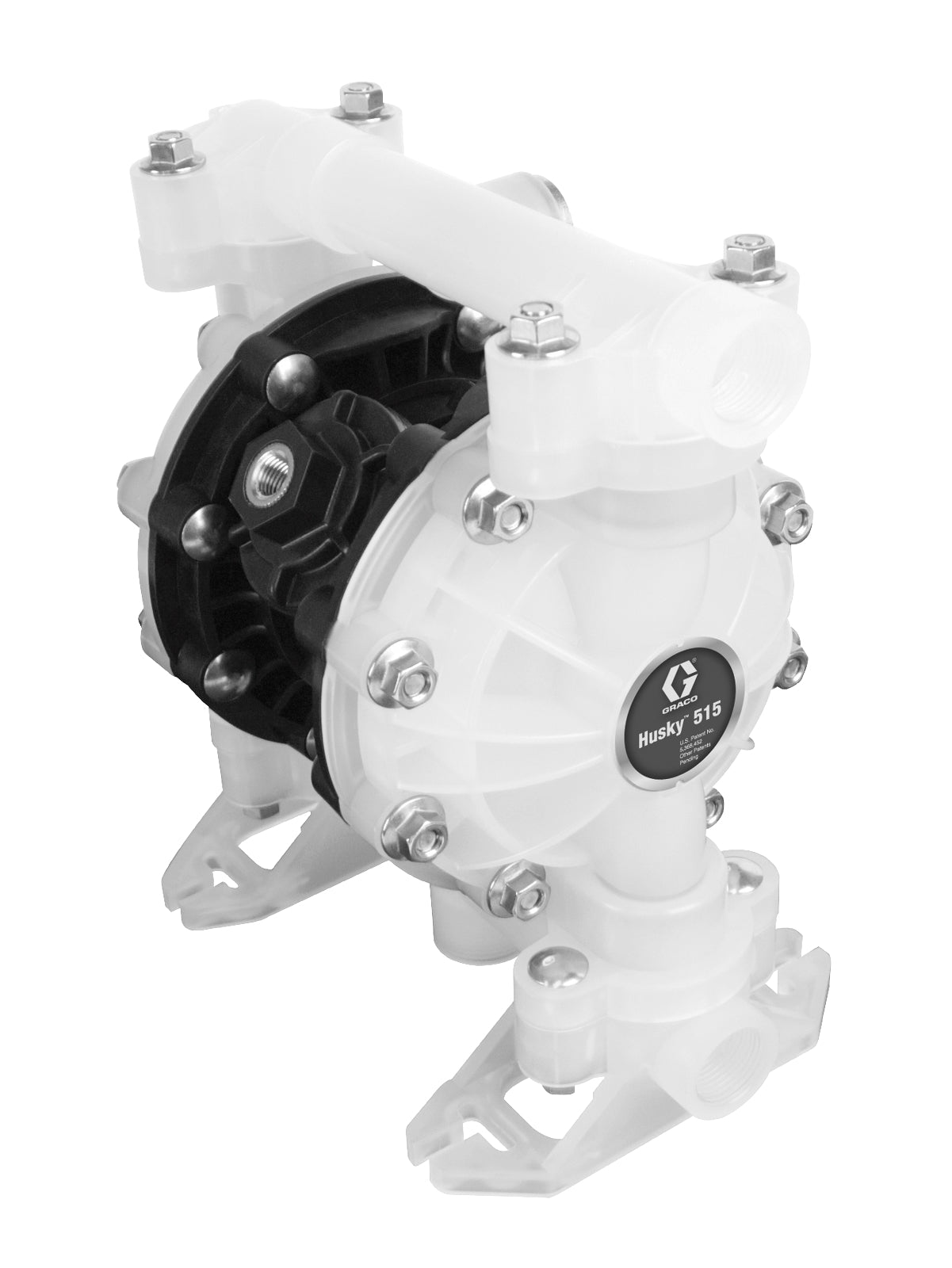

The GRACO 233051 is an air-operated double diaphragm pump package designed for transferring fluids from 55-gallon (208-liter) drums. It features polypropylene (PP) fluid section, seats, and tube, with PTFE balls and diaphragms, making it suitable for handling a wide range of chemicals and fluids in industrial settings.

Key Features:

• Air-operated double diaphragm pump
• Husky 515, 55 gal (208 liter) package
• Polypropylene (PP) fluid section, seats, and tube; PTFE balls and diaphragms
• Maximum free flow delivery: 15 gpm (57 lpm)
• Maximum fluid working pressure: 100 psi (7 bar, 0.7 MPa)
• Compatible with a wide range of chemicals and fluids, especially those requiring chemical resistance
• Stall-free low pulsation air valve for smooth and rapid changeover
• Bolt-through design for easy installation and maintenance
• Reliable, low-maintenance operation
• Suitable for continuous duty cycles

Applications:
Ideal for transferring chemicals, solvents, and other industrial fluids from drums or containers in environments such as manufacturing, mining, agriculture, and maintenance operations.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with existing equipment.
• Ensure all connections are secure and leak-free before operation
• Follow manufacturer guidelines for mounting and tubing connections
• Regularly inspect diaphragms, balls, and seals for wear and replace as needed
• Use appropriate PPE when handling chemicals
