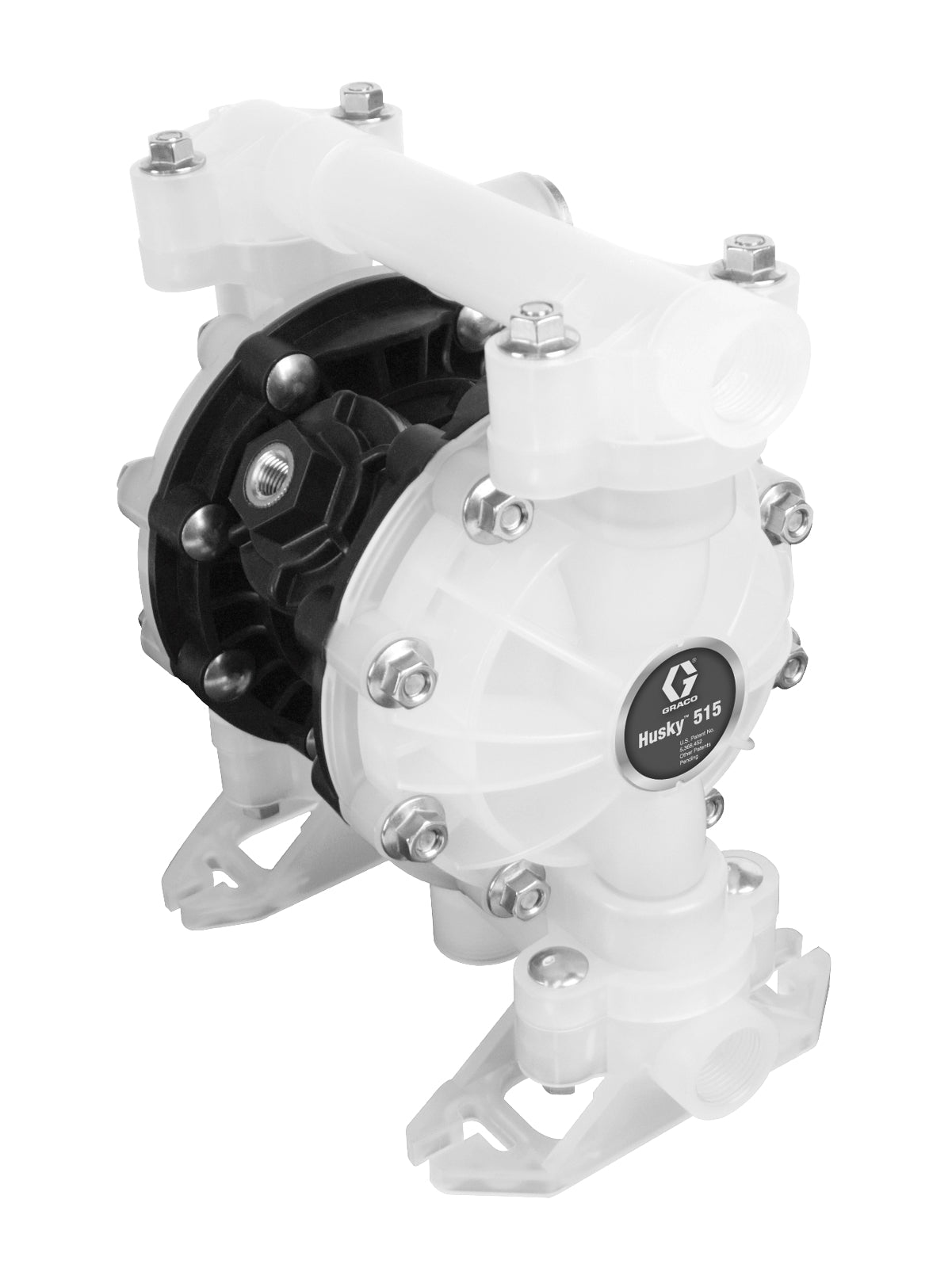

The GRACO 233052 is an air-operated double diaphragm pump package designed for safe and efficient transfer of fluids from 55-gallon (208-liter) containers. It features acetal (AC) seats, PTFE balls, PTFE diaphragms, and a stainless steel (SS) tube, making it suitable for handling a wide range of chemicals and solvents. Its primary function is to provide reliable, leak-free fluid transfer within industrial and maintenance environments.

Key Features:

• Air-operated double diaphragm pump
• Husky 515, 55 gal (208 liter) package
• Acetal (AC) seats, PTFE balls, PTFE diaphragms, stainless steel (SS) tube
• Maximum free flow delivery: 15 gpm (57 l/min)
• Maximum fluid working pressure: 100 psi (7 bar, 0.7 MPa)
• Suitable for a wide range of chemicals and solvents; compatible with 55-gallon (208-liter) containers
• Stall-free low pulsation air valve for smooth and rapid changeover
• No mechanical seals to prevent fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler
• Center and end porting options for flexible installation
• Reliable, leak-free operation
• Easy maintenance and serviceability

Applications:
Ideal for transferring fluids in industrial, mining, agricultural, and maintenance settings. Suitable for handling chemicals, solvents, and other fluids requiring safe, reliable, and leak-free transfer.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the pump system. Non-genuine parts may compromise reliability and safety.
• Ensure the pump is properly grounded before operation to prevent fire and explosion hazards
• Use conductive hoses and ensure the dispense valve nozzle is in contact with the container
• Follow all manufacturer instructions for installation and maintenance
• Regularly inspect and maintain diaphragms, balls, and seats for wear and proper function
• Refer to the equipment manual for detailed installation and maintenance procedures
