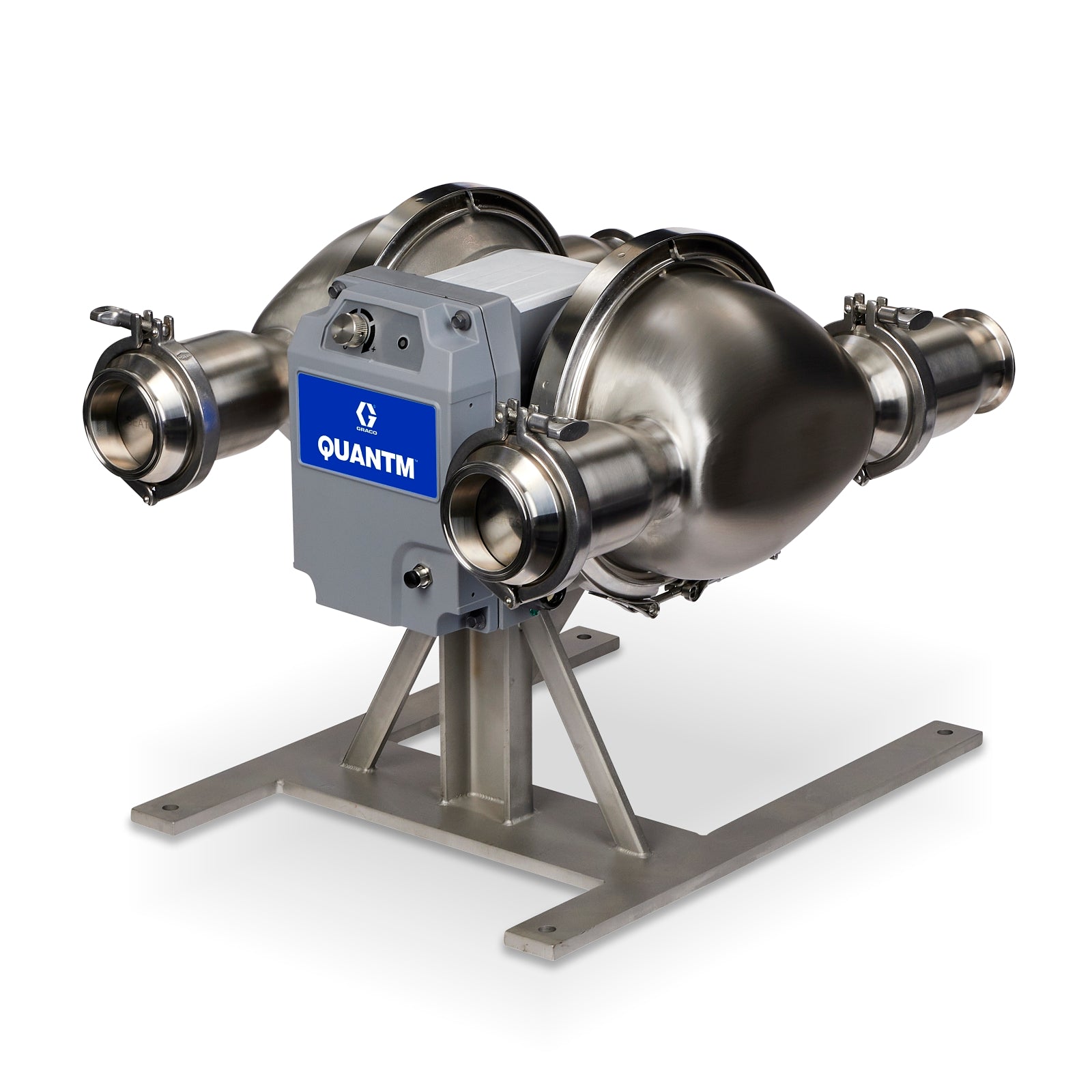

The GRACO HE120-0723 is a high-capacity, electric diaphragm pump designed for reliable, efficient fluid transfer in industrial applications. It features a stainless steel (SST) construction, FEP AL Center, FL Seat, and PO Diaphragm, making it suitable for demanding environments requiring high sanitary standards and chemical resistance. This pump is intended for use as a drop-in replacement for less efficient pneumatic pumps or as a primary pump in new installations.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3"HS
• Stainless Steel (SST), FEP AL Center, FL Seat, PO Diaphragm
• Designed as a drop-in replacement for pneumatic diaphragm pumps; compatible with most industrial fluid transfer applications
• Self-priming, seal-less design for smooth and steady flow
• Engineered for heavy-duty, lasting performance
• Quiet operation (as low as 40 dBA in similar models)
• Energy efficient—up to 80% less energy consumption than pneumatic pumps
• Stalls under pressure to reduce downtime from clogged lines or closed valves
• Easy installation and maintenance
• Multiple fluid path options for different materials of construction

Applications:
Ideal for most fluid transfer applications in industries such as food and beverage, pharmaceutical, chemical, and general manufacturing. Suitable for both new installations and as a replacement for less efficient pneumatic pumps.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and longevity of the equipment. Non-genuine parts may compromise safety and efficiency.
• Ensure proper alignment and secure mounting of the pump
• Follow manufacturer guidelines for electrical connections (200-240 V)
• Verify compatibility with existing piping and fluid handling systems
• Perform regular preventative maintenance to maintain peak performance
• Consult a GRACO specialist for complex installations or troubleshooting
