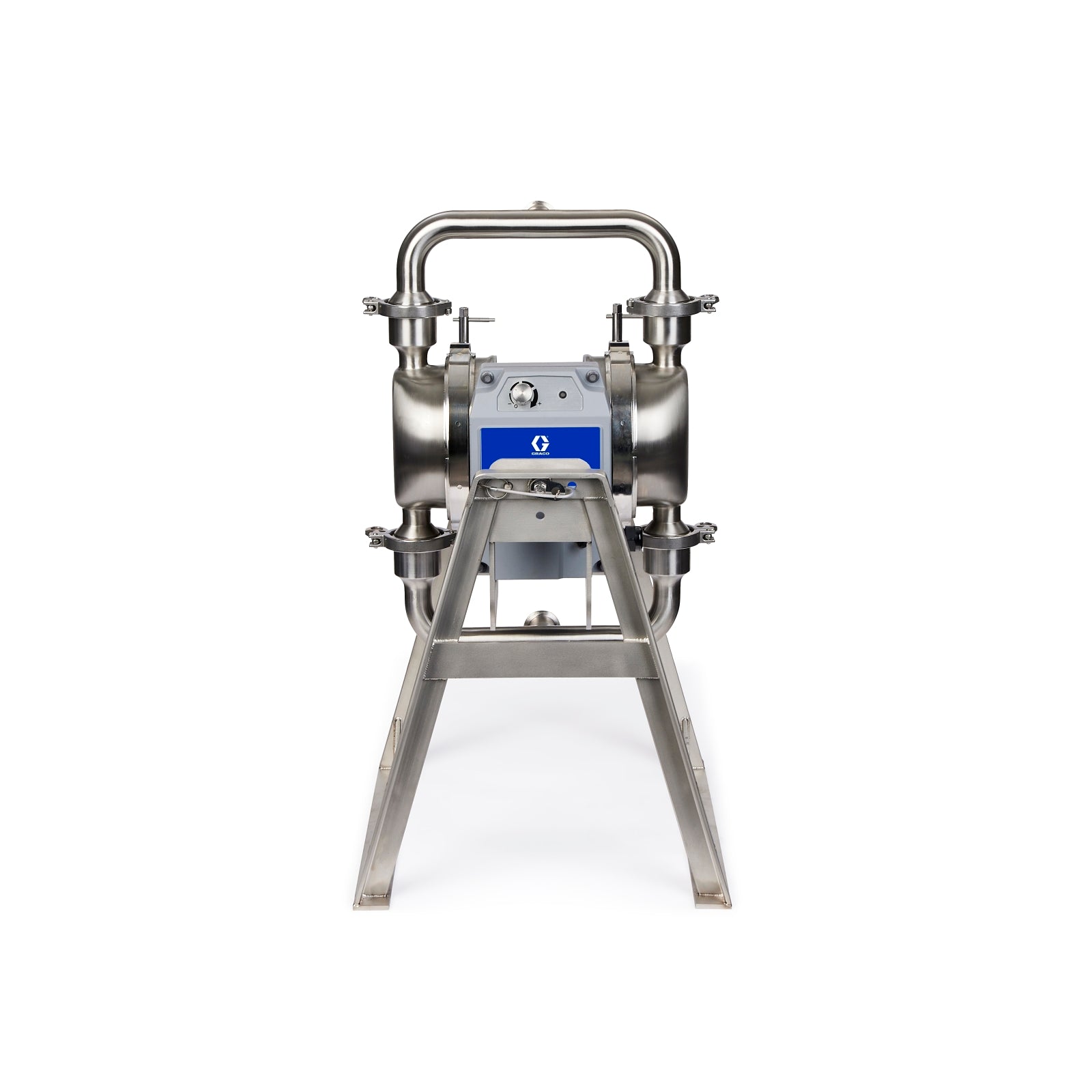

The GRACO HE80-0804 QUANTM h80 is a high-performance electric diaphragm pump designed for sanitary and pharmaceutical applications. It features a 1.5" tri-clamp connection, a stainless steel (SST) fluid path, and is constructed with a FEP-coated aluminum center section, stainless steel seat, CW ball, and PO diaphragm. This pump is engineered for reliable, energy-efficient fluid transfer in demanding environments.

Key Features:

• Electric Diaphragm Pump
• QUANTM h80, 1.5" Tri-clamp
• FEP-coated aluminum center section, stainless steel (SST) seat, CW ball, PO diaphragm
• 300 lpm (liters per minute) for QUANTM h80 series
• Max. working pressure: 7 bar
• Designed as a drop-in replacement for pneumatic diaphragm pumps; suitable for food, beverage, personal care, and pharmaceutical industries
• Pharmaceutical (PH) surface finish (20 Ra), 3A approved (32 Ra) for certain models; hazardous location approval (CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb) for some configurations
• Seal-less, self-priming design
• Stalls under pressure to prevent damage from clogged lines or closed valves
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Quiet operation (as low as 40 dBA)
• Compact, efficient electric drive with no gearbox
• Smart pump control with built-in I/O for accurate flow set points
• Easy installation and maintenance
• Reliable, heavy-duty performance

Applications:
Food, beverage, personal care, and pharmaceutical industries; ideal for sanitary and high-purity fluid transfer applications

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment and secure mounting of the pump
• Follow manufacturer guidelines for electrical connections (200-240 VAC)
• Use appropriate tri-clamp fittings for sanitary connections
• Regularly inspect and maintain diaphragms and seals as per maintenance schedule
• Consult the manual for specific installation and maintenance procedures
