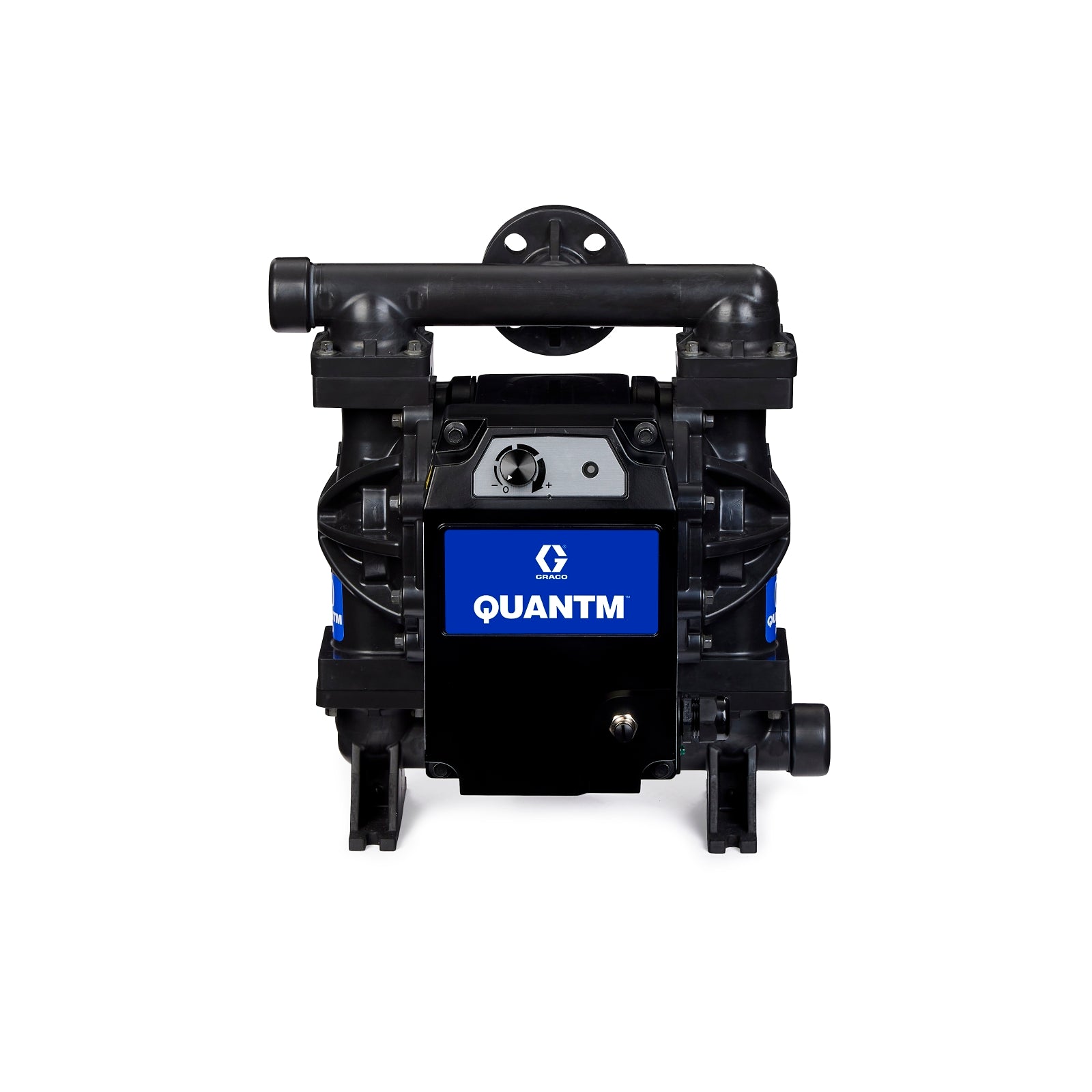

The GRACO TE30-1400 QUANTM i30 is a 1-inch flange electric double diaphragm pump constructed with a PVDF (Kynar) fluid section, FEP aluminum center, PV seat, PT ball, and PO diaphragm. It is designed for reliable, energy-efficient fluid transfer in demanding industrial applications such as chemical processing, paints and coatings, and wastewater handling.

Key Features:

• Electric Double Diaphragm Pump
• QUANTM i30, 1" Flange
• PVDF (Kynar) fluid section, FEP AL Center, PV Seat, PT Ball, PO Diaphragm
• Up to 30 GPM (114 L/min)
• Up to 100 psi (6.9 bar, 690 kPa)
• Compatible with most chemicals and detergents, suitable for high and low pH materials
• Seal-less, self-priming design
• Energy-efficient FluxCore motor and drive
• Up to 8x more continuous torque at low speeds
• Easy to clean and maintain
• Stalls under pressure to prevent damage from clogged lines or closed valves
• Quieter and more reliable than conventional pumps
• Plug-and-play installation

Applications:
Chemical processing, paints and coatings, wastewater, general fluid transfer, sump evacuation, and applications involving corrosive or aggressive fluids

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and longevity of the equipment.
• Ensure proper alignment and secure mounting of the pump
• Verify electrical supply matches pump specifications (380-480 VAC 3Ph)
• Follow all safety guidelines and local regulations
• Regularly inspect and maintain the pump for peak performance
• Use only recommended replacement parts and fluids
