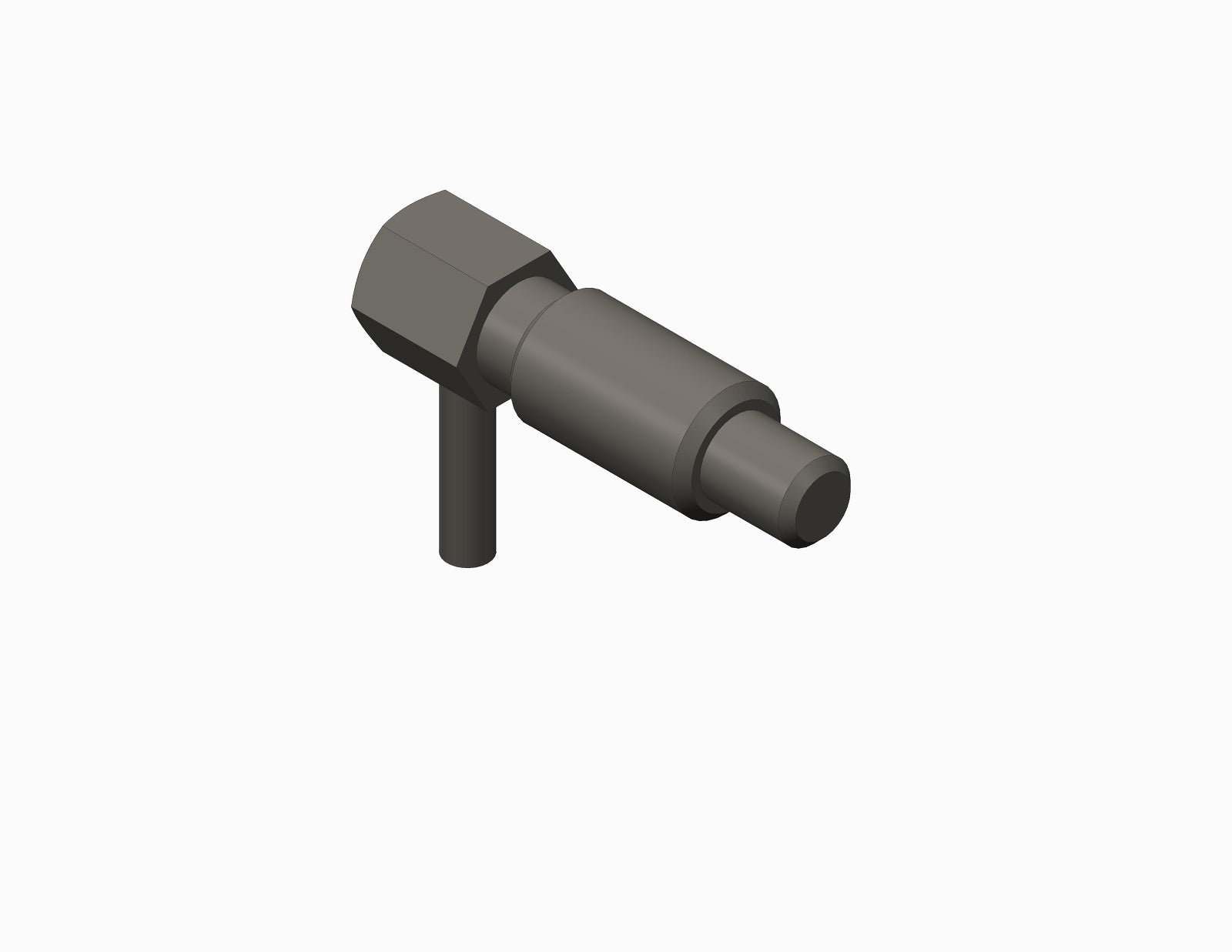

The GRACO 22038-01 is a plunger and spring assembly designed for use in GRACO equipment, specifically as a retractable, hand-locking component. Its material is not specified in available sources, but it is intended to facilitate reliable operation and maintenance of fluid handling systems, ensuring proper engagement and retraction within the equipment.

Key Features:

• Plunger, Spring, Hanlocking, Retr
• 22038-01
• Retractable design for ease of maintenance
• Hand-locking mechanism for secure operation
• Reliable spring and plunger assembly for consistent performance

Applications:
Used in GRACO fluid handling and spray equipment to ensure proper engagement and retraction of critical components, supporting reliable operation in industrial and maintenance applications.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of equipment. Non-genuine parts may compromise system reliability and void warranties.
• Follow the equipment manual for specific installation instructions
• Ensure the system is depressurized before installation
• Inspect the plunger and spring for wear or damage before installation
• Use appropriate tools to avoid damaging the component during installation
• Regularly inspect the plunger and spring for signs of wear or fatigue
• Replace the assembly as recommended by GRACO or when performance issues arise
• Keep the component clean and free from debris
