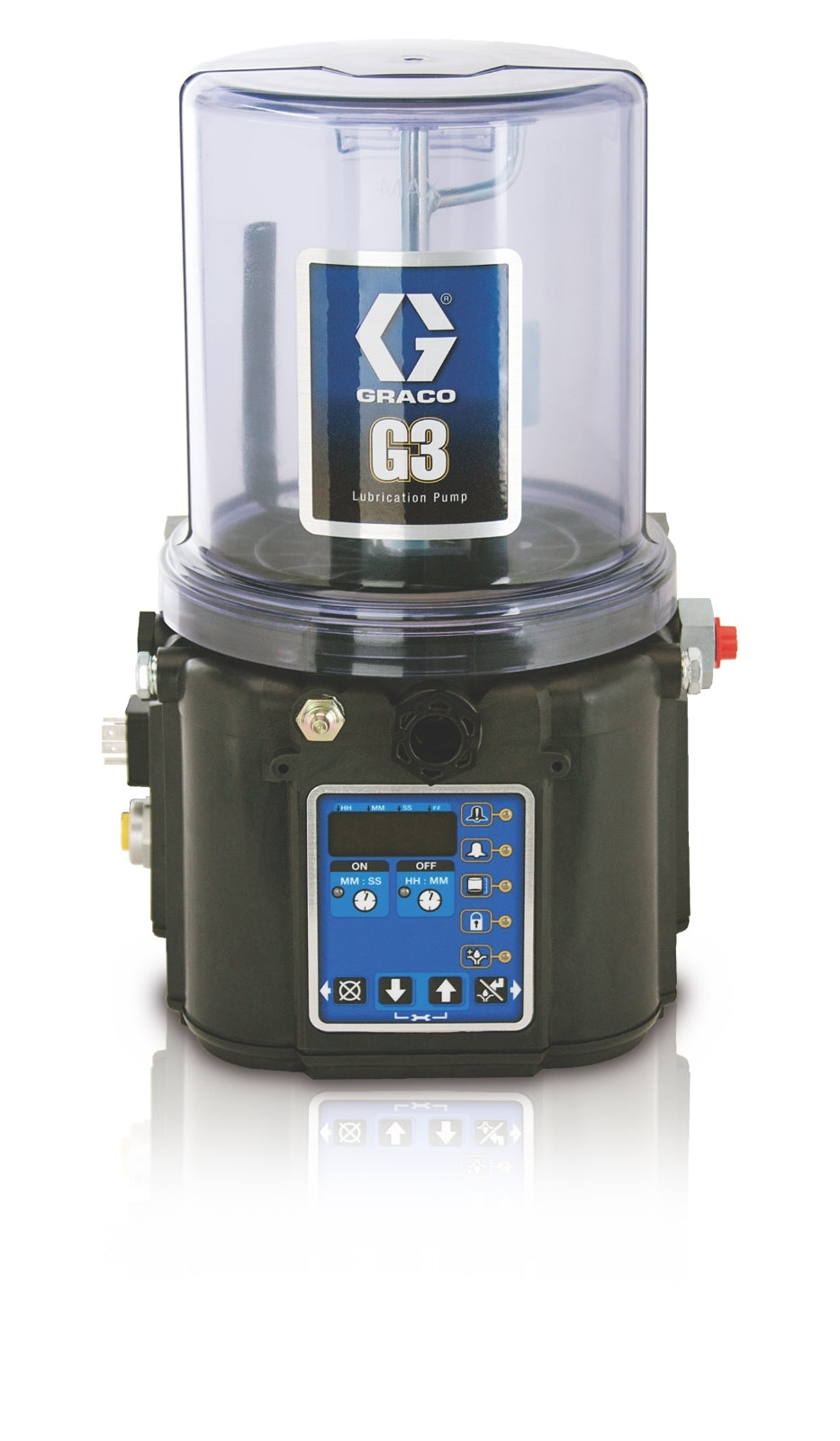

The GRACO 96G148 is a robust, automatic grease lubrication pump designed for use in industrial and commercial lubrication systems. It is constructed with durable materials suitable for demanding environments and is intended to extend machinery life, reduce operating costs, and increase productivity by delivering precise, automated lubrication to equipment. The pump is compatible with series progressive systems and is engineered for reliability and ease of maintenance.

Key Features:

• Automatic grease lubrication pump
• G3 Pro, 8 Liter reservoir
• Pump output pressure: 5100 psi (35.1 MPa, 351.6 bar); Fill inlet pressure: 5000 psi (34.4 MPa, 344.7 bar)
• Works with series progressive systems; compatible with NLGI #000 to #2 greases and oil with at least 40cSt
• Conforms to ANSI/UL 73; Certified to CAN/CSA Std. 22.2 No 68-09
• Built-in controller with selectable pump on/pump off timer
• Low level indicator with warning and shut-down alarm
• Manual run for on-demand lube cycle (remote option available)
• Password protection for settings
• Pre-lube function for cycle initiation on start-up
• Adjustable stroke pump for custom fit
• Advanced flow dynamics to prevent grease separation
• Load minimizing drive for longer life

Applications:
Ideal for use in industrial, mining, agricultural, and commercial settings where automated, reliable lubrication is required to maintain equipment performance and longevity.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Only use NLGI #000 to #2 greases appropriate for your application and temperature
• Do not overfill the reservoir
• Do not operate the pump without the reservoir attached
• Monitor system while filling to prevent overfilling
• When changing greases, always use compatible fluids
• For higher viscosity fluids, start pump to rotate stirring paddle during fill to prevent air pockets
