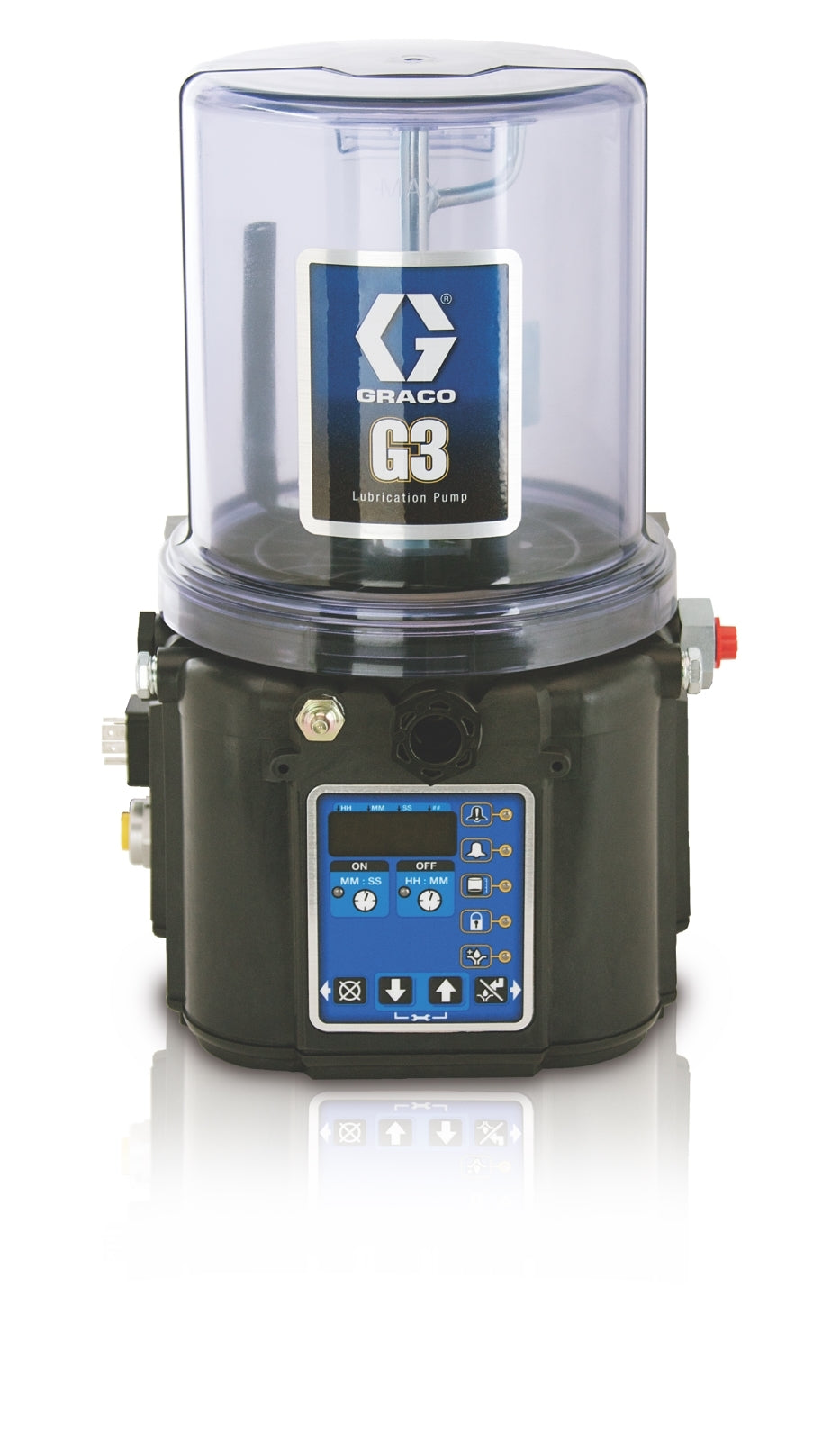

The GRACO 96G150 G3® Pro is a professional-grade automatic grease lubrication pump designed for reliable, automated lubrication of industrial machinery. It is constructed for durability and intended for use with NLGI #000 to #2 greases and oils with at least 40cSt viscosity. This pump is engineered to extend machinery life, reduce operating costs, and increase productivity by providing consistent, controlled lubrication.

Key Features:

• Automatic grease lubrication pump
• G3® Pro, 8 Liter reservoir
• Robust, professional-grade materials for industrial environments
• Maximum pump output pressure: 5100 psi (35.1 MPa, 351.6 bar)
• Compatible with NLGI #000 to #2 greases and oils with at least 40cSt viscosity
• Conforms to ANSI/UL 73; Certified to CAN/CSA C22.2 No 68
• Built-in controller with selectable pump on/off timer
• Low level indicator with warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option available)
• Password protection for settings
• Pre-lube function for cycle initiation on start-up
• Flexible design for series progressive systems
• Room for up to three adjustable pump elements (one standard, two optional)

Applications:
Industrial, mining, energy, agriculture, fleets and transportation, construction—any application requiring reliable, automated lubrication of machinery

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with GRACO equipment.
• Only use NLGI #000 to #2 greases or oils with at least 40cSt viscosity
• Do not overfill the reservoir
• Do not operate without the reservoir attached
• For higher viscosity fluids, start pump to rotate stirring paddle during fill to prevent air pockets
• Follow controller specifications for models with external controllers
• Torque fittings to 50 in. lbs (5.6 N•m)
• Regularly check and maintain grease levels
• Monitor low level indicator and alarms
• Keep controller settings secure with password protection
• Consult manual for detailed maintenance procedures
