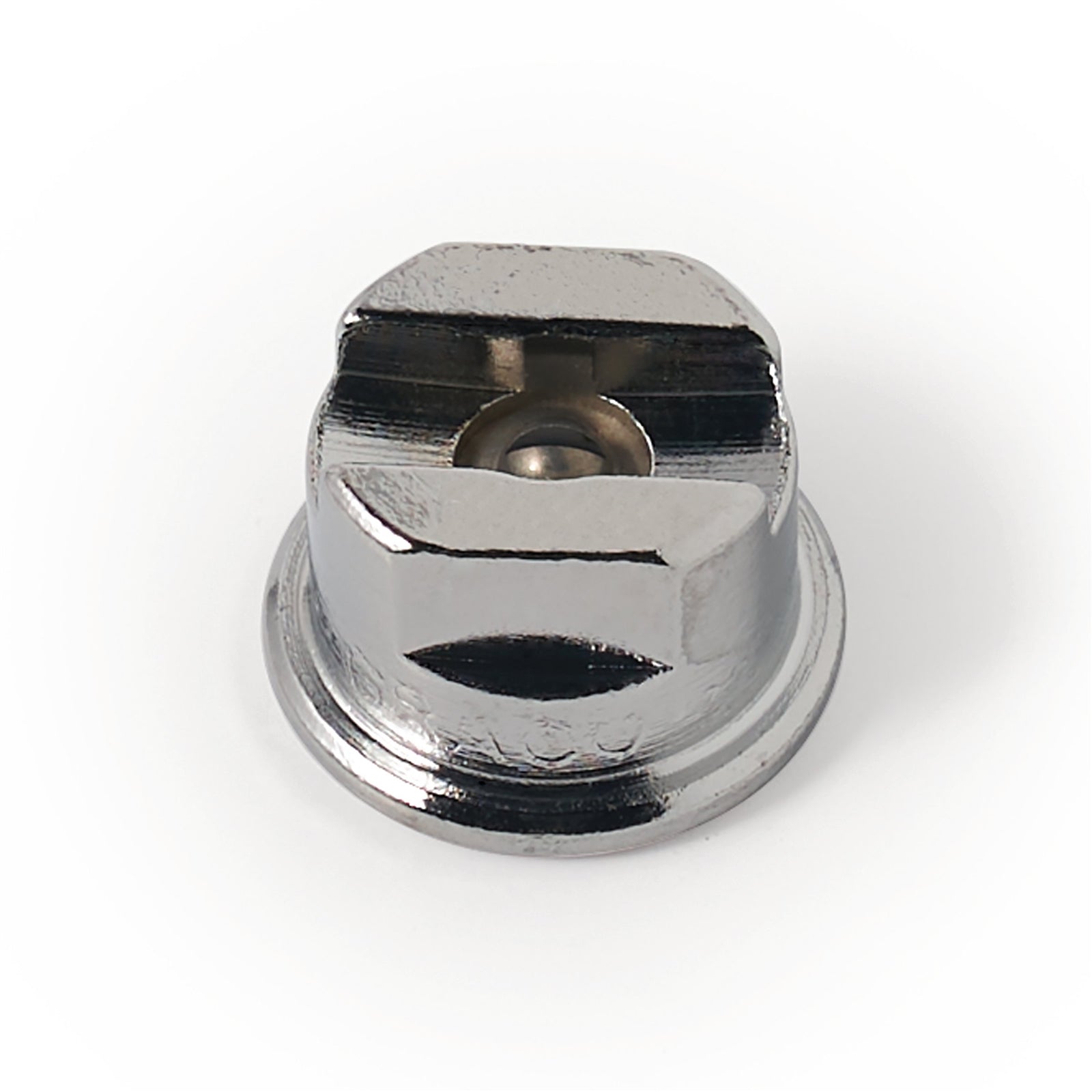

The GRACO 163409 Silver Flat Tip is a precision spray tip designed for specialty architectural and industrial applications. It is constructed for high cut tolerance and is intended for use with compatible GRACO spray equipment to deliver consistent, high-quality finishes.

Key Features:

• Spray Tip
• Silver Flat Tip, 409 (0.009 inch orifice, 8–10 inch fan)
• Precision-engineered for high cut tolerance
• Maximum working pressure: 5000 psi
• Use only with Flat Tip Guard: 220251
• Produces a consistent 8 to 10 inch fan
• Designed for specialty architectural and industrial applications
• High reliability and precision
• Easy to install and maintain

Applications:
Specialty architectural and industrial spray applications requiring high precision and consistent finish.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with GRACO equipment.
• Install the flat tip into the backside of the guard and thread onto the spray gun
• Always use with the recommended Flat Tip Guard (220251) for safety and performance
• Regularly inspect and clean the tip to maintain spray quality
• Follow manufacturer guidelines for installation and maintenance
• Replace tips as needed to maintain finish quality
• Store tips in a clean, dry environment when not in use
