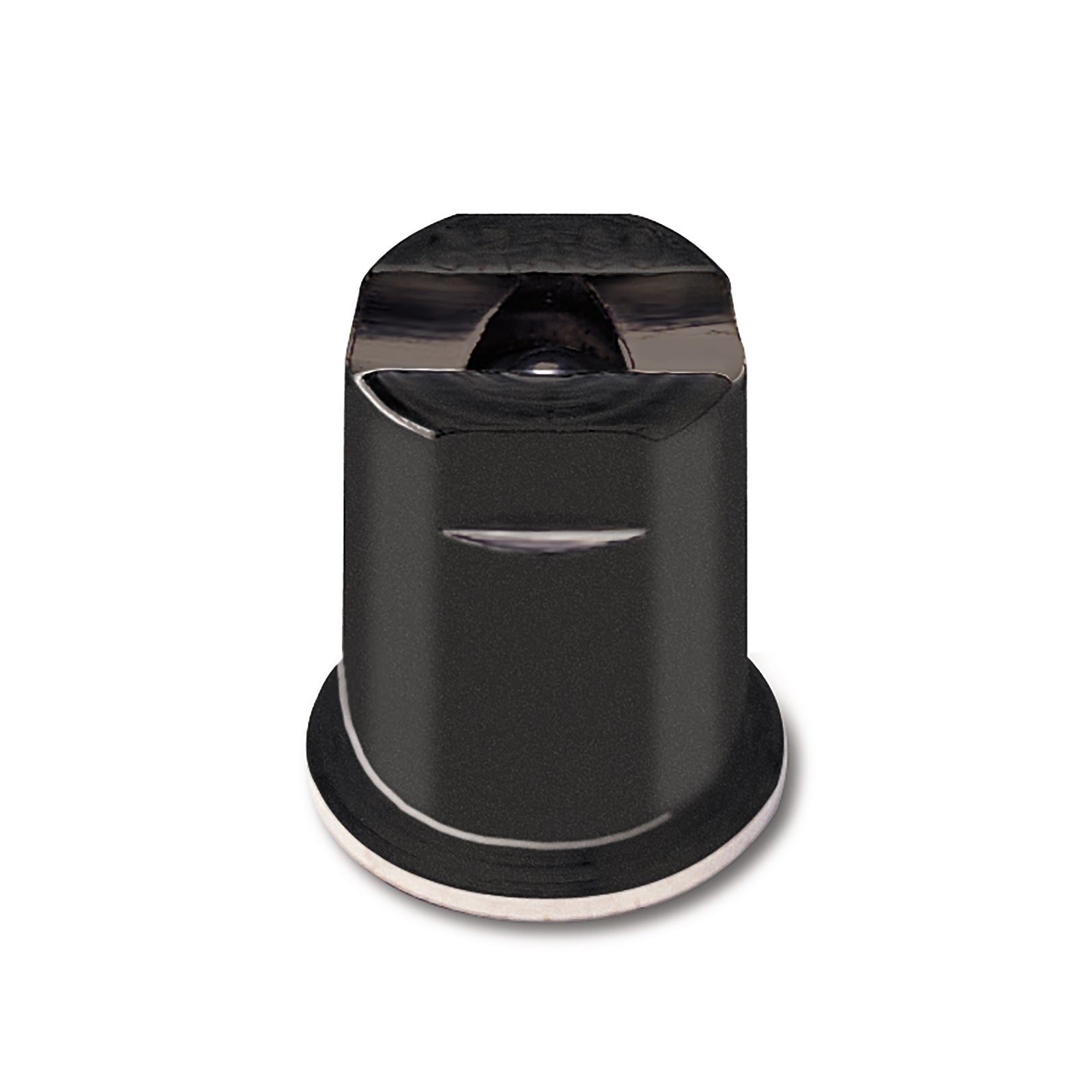

The GRACO 163416 Fine Finish Flat Tip is a precision spray tip designed for airless paint sprayers. It is constructed for use with fine finish materials such as lacquer, varnish, and urethane. The tip is intended to deliver a smooth, even finish with a soft spray atomization, making it suitable for professional painting and finishing applications.

Key Features:

• Fine Finish Flat Tip
• 416 (8-10 inch fan, 0.016 inch orifice)
• Maximum working pressure: 3000 psi
• Compatible with GRACO airless spray guns, including Silver Plus models; also compatible with other brands' airless sprayers that accept GRACO-style tips
• Produces an 8 to 10 inch fan pattern
• 0.016 inch orifice for fine finish materials
• Designed for soft spray atomization
• Reliable performance for professional painting

Applications:
Professional painting and finishing of surfaces using lacquer, varnish, urethane, and other fine finish materials. Suitable for both large-scale and small-scale projects.

Installation Notes:

• Using genuine GRACO tips ensures optimal spray performance, consistent finish quality, and compatibility with GRACO equipment.
• Ensure the spray gun is turned off and depressurized before installing or replacing the tip.
• Align the tip correctly with the spray gun for proper fan pattern orientation.
• Regularly inspect and clean the tip to prevent clogging and maintain spray quality.
• Replace the tip if spray pattern becomes uneven or clogged.
• Use only compatible materials as recommended by GRACO.
• Follow manufacturer guidelines for pressure settings and material viscosity.
• Store tips in a clean, dry environment when not in use.
