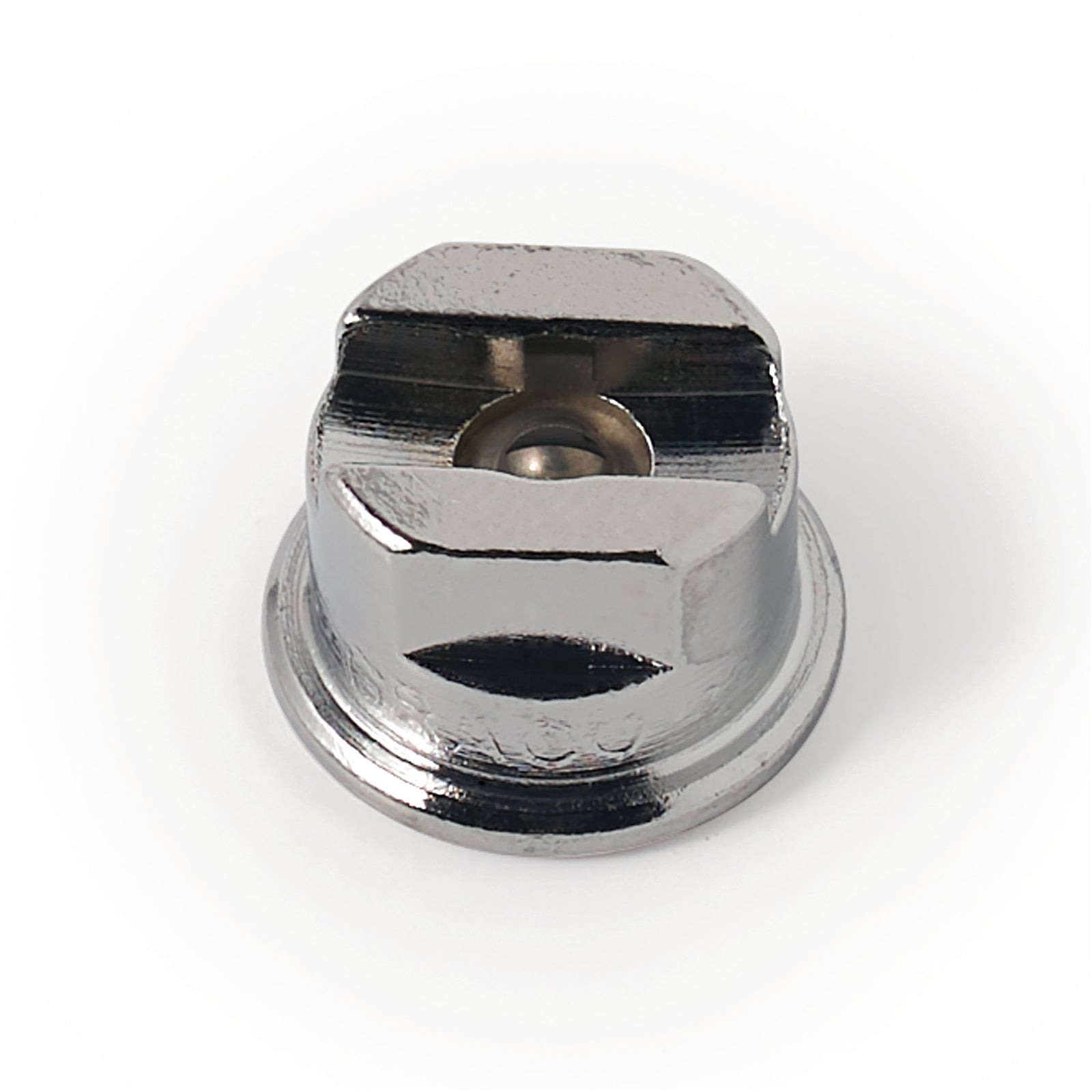

The GRACO 163563 Silver Flat Tip is a precision spray tip designed for airless spray equipment. It is constructed for specialty architectural and industrial applications, offering high cut tolerance and reliable performance. The tip is intended to deliver a consistent, controlled spray pattern for professional finishing tasks.

Key Features:

• Spray Tip
• Silver Flat Tip, 563 (0.063 inch orifice, 10–12 inch fan)
• Maximum working pressure: 5000 psi
• Use only with Flat Tip Guard: 220251
• Precision cut for high tolerance
• Produces a 10–12 inch fan pattern
• Designed for specialty architectural and industrial applications
• Reliable and durable for demanding environments

Applications:
Specialty architectural and industrial spray finishing, including high-quality coatings and finishes where precision and consistency are required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with GRACO equipment.
• Install the flat tip into the backside of the guard and thread onto the spray gun.
• Ensure the tip is securely fastened to prevent leaks and ensure proper spray pattern.
• Always use the recommended Flat Tip Guard for safety and performance.
• Inspect the tip for wear or damage before installation.
• Clean the tip regularly to maintain spray quality.
• Follow manufacturer guidelines for pressure settings and maintenance.
