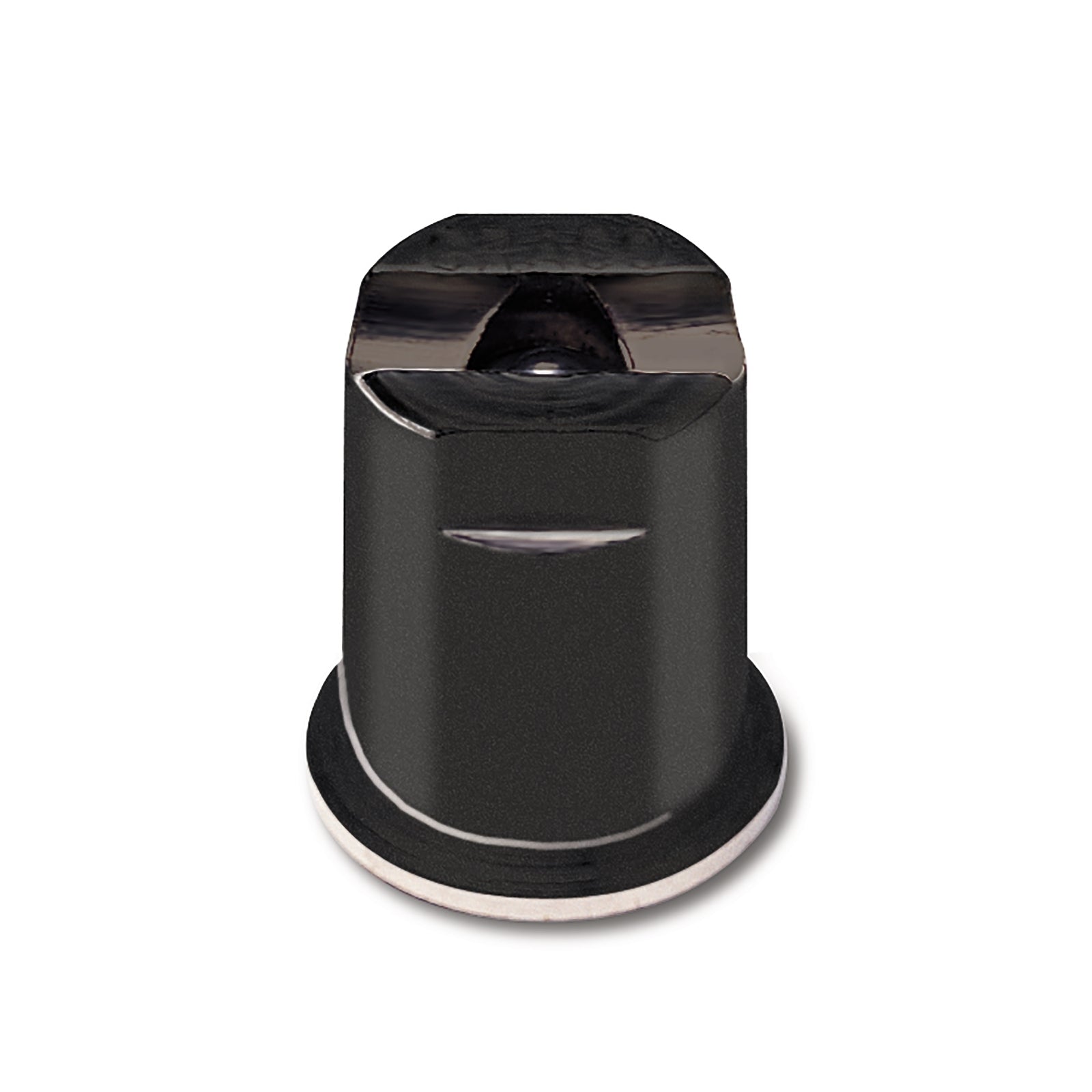

The GRACO 163712 Fine Finish Flat Tip is a precision-engineered spray tip designed for use with GRACO airless spray equipment. It is constructed from durable materials suitable for high-pressure applications and is intended to deliver a fine finish for paints and coatings.

Key Features:

• Fine Finish Flat Tip
• 712 (14–16 inch fan, 0.012 inch orifice)
• Maximum working pressure: 3000 psi
• Compatible with GRACO airless spray equipment
• Produces a 14 to 16 inch fan pattern for wide, even coverage
• 0.012 inch orifice for fine finish applications
• Designed for reliability and consistent performance
• Suitable for high-pressure environments

Applications:
Ideal for applying paints and coatings where a fine, smooth finish is required. Commonly used in industrial, commercial, and residential painting projects.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the equipment.
• Ensure the sprayer is turned off and depressurized before installing or removing the tip
• Align the tip correctly with the spray gun for proper fan pattern
• Regularly inspect the tip for wear or clogging and clean as needed
• Replace the tip if the spray pattern becomes uneven or the orifice is damaged
• Clean the tip thoroughly after each use to prevent clogging
• Store the tip in a clean, dry place when not in use
• Use appropriate cleaning solutions for the type of coating applied
