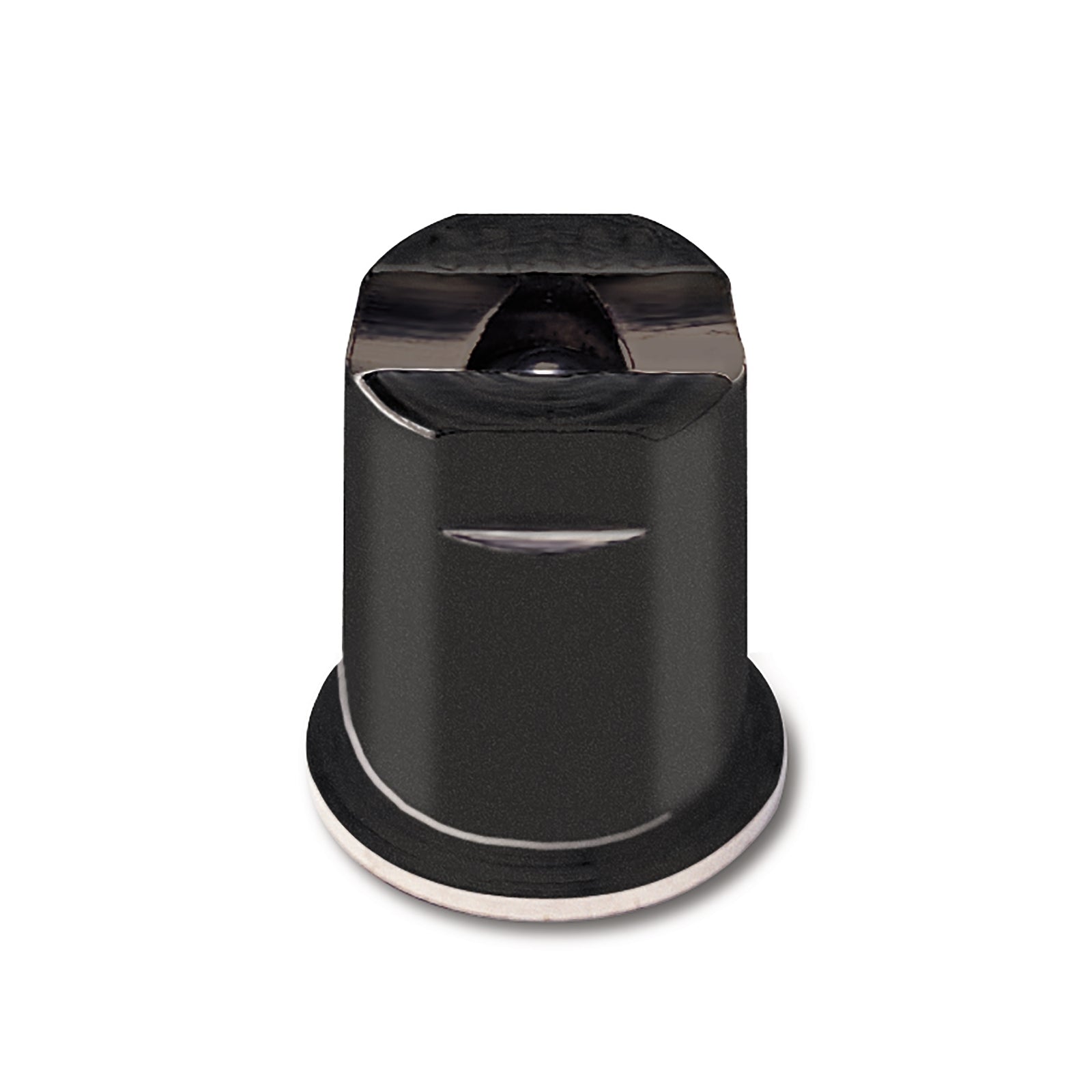

The GRACO 163820 Fine Finish Flat Tip is a precision-engineered spray tip designed for use with GRACO airless spray equipment. It is constructed from durable materials suitable for high-pressure applications and is intended for achieving a fine finish on surfaces when spraying paints and coatings.

Key Features:

• Fine Finish Flat Tip
• 820 (16–18 inch fan, 0.020 inch orifice)
• Maximum working pressure: 3000 psi
• Designed for use with GRACO airless spray equipment
• Produces a consistent 16–18 inch fan pattern
• 0.020 inch orifice for precise material flow
• Engineered for fine finish applications
• Reliable performance under high pressure
• Easy to maintain and replace

Applications:
Ideal for professional painting and coating applications requiring a smooth, fine finish, such as interior and exterior walls, ceilings, and other large surfaces.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with GRACO equipment.
• Ensure the sprayer is turned off and depressurized before installing or replacing the tip
• Align the tip correctly with the spray gun for proper fan pattern
• Regularly inspect the tip for wear or clogging and clean as needed
• Replace the tip if the fan pattern becomes uneven or the orifice is damaged
• Clean the tip thoroughly after each use to prevent clogging
• Store the tip in a clean, dry place when not in use
• Use appropriate cleaning solutions for the material being sprayed
