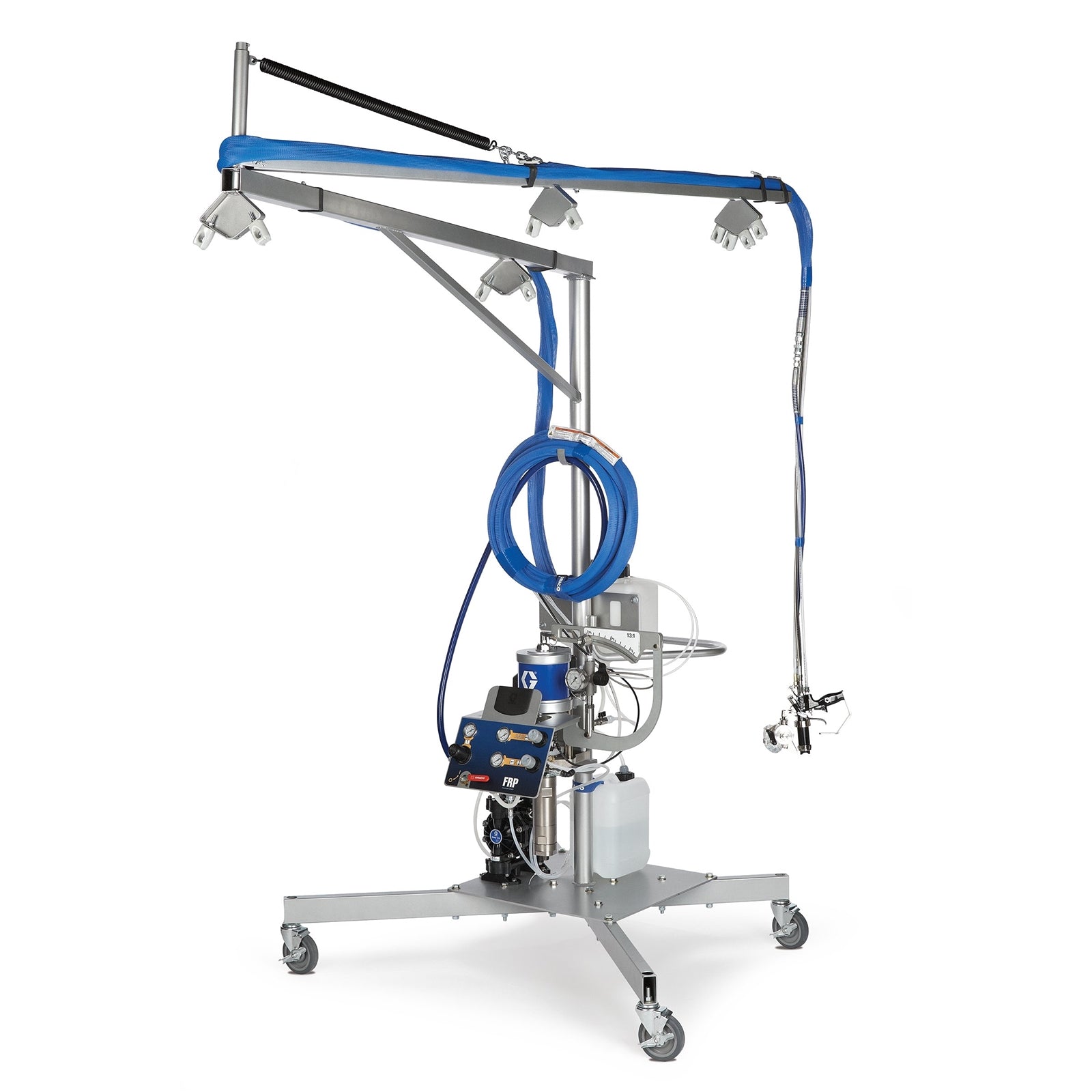

The GRACO 16R024 is a proportioning system designed for external mix gel applications. It is constructed with robust materials for industrial use and is intended for precise, high-volume dispensing of gel coat materials in manufacturing environments.

Key Features:

• External Mix Gel System
• 16R024
• Maximum flow rate: 5680 cc/min
• Maximum air inlet pressure: 100 psi (specific to this model; other similar systems may handle up to 1300 psi working pressure, but not confirmed for 16R024)
• Designed for use with gel coat materials in industrial manufacturing
• 13:1 ratio for precise material mixing
• Includes 50 ft (15.2 m) hose, cart, mast, and boom for flexible application
• Engineered for reliable, consistent performance in demanding environments
• Easy to maintain and operate

Applications:
Industrial gel coat application, manufacturing of fiberglass and composite products, open mold applications

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with existing equipment.
• Ensure all connections are secure and leak-free before operation
• Follow manufacturer guidelines for hose and component installation
• Regularly inspect and maintain the system to prevent downtime and ensure consistent output
• Clean hoses and nozzles after each use to prevent clogging
• Check for wear and replace components as needed
• Store the system in a clean, dry environment when not in use
