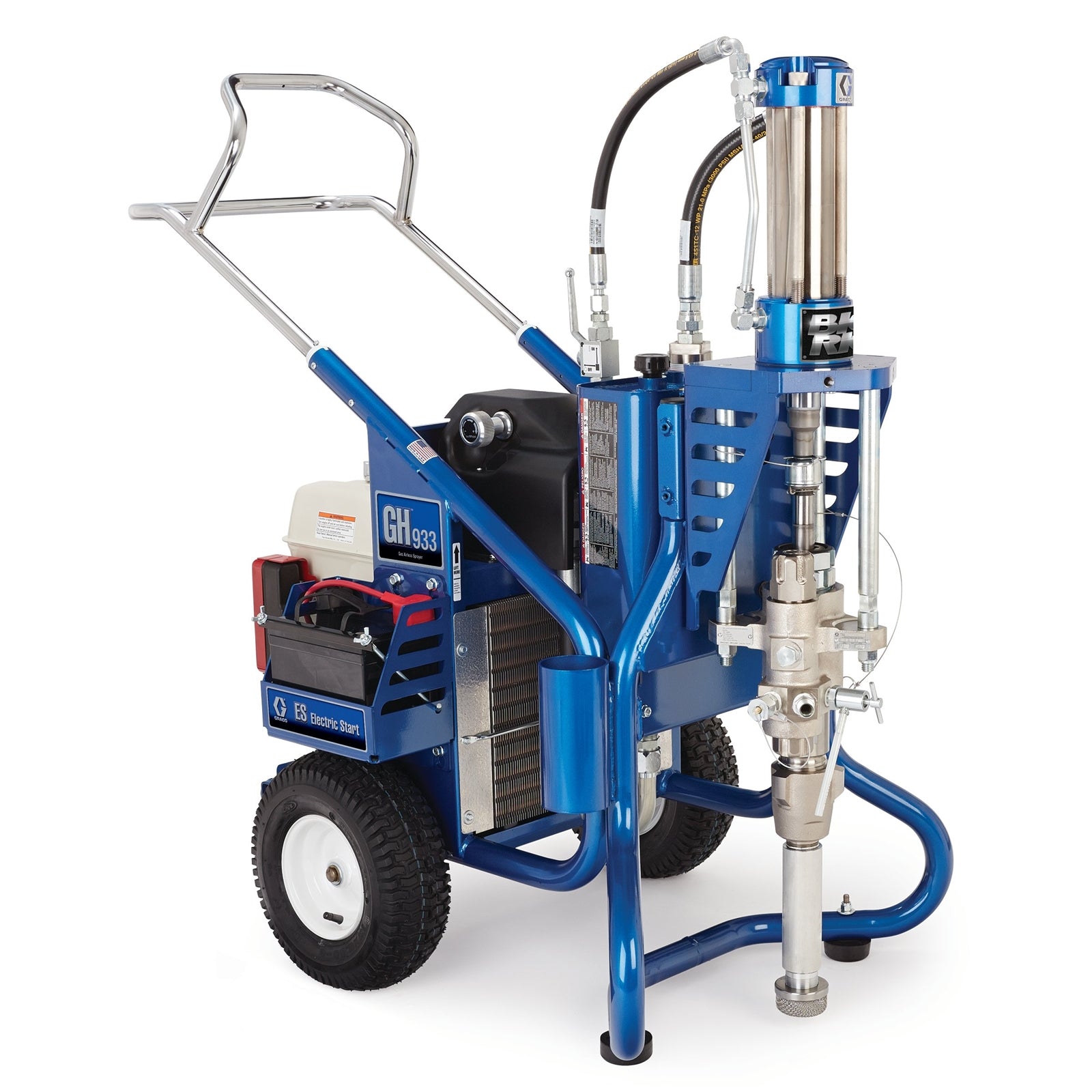

The GRACO 16U784 GH 933ES is a large, heavy-duty gas hydraulic sprayer designed for high-production spraying applications. It is constructed with a rugged steel frame and features a Honda engine for reliable performance. This sprayer is intended for contractors needing maximum performance and versatility for spraying a wide range of coatings, especially on large jobs.

Key Features:

• Gas Hydraulic Sprayer
• GH 933ES, Big 250 System
• Rugged, heavy-duty steel frame with enamel-painted tubing for corrosion protection
• 2.5 GPM (gallons per minute)
• Maximum pressure: 7250 PSI
• Designed for use with a wide range of coatings and materials; compatible with various hoses and accessories as part of the Big 250 System
• 13 HP Honda engine with electric start and integrated fuel tank
• Heavy-duty hydraulic system with O-ring seals to eliminate leaks
• High-precision pressure control
• No hydraulic reset button needed
• Durable hydraulic lines for long life
• Large 4-gallon hydraulic reservoir with return line filter
• No special hydraulic fluid required
• Proven cooler and blower system
• Easy-roll tubed pneumatic tires
• Multi-function design converts to skid mount in seconds
• QuikChange pump section for easy maintenance
• Long-life XtremeSeal and leather packings
• Heavy-duty piston rod
• QuickAccess intake valve for fast repairs
• Lockable pressure control knob
• Grounding wire for safety with solvent materials
• Large diameter siphon hose

Applications:
Ideal for large-scale spraying jobs such as roof coatings, industrial coatings, and other high-production applications where maximum performance and versatility are required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise equipment integrity and void warranties.
• Ensure all hydraulic and pressure lines are securely connected before operation
• Check for leaks and proper fluid levels in the hydraulic reservoir
• Follow manufacturer guidelines for hose and accessory installation
• Regularly inspect and maintain the hydraulic system and engine
• Use only recommended fluids and accessories as specified in the manual
