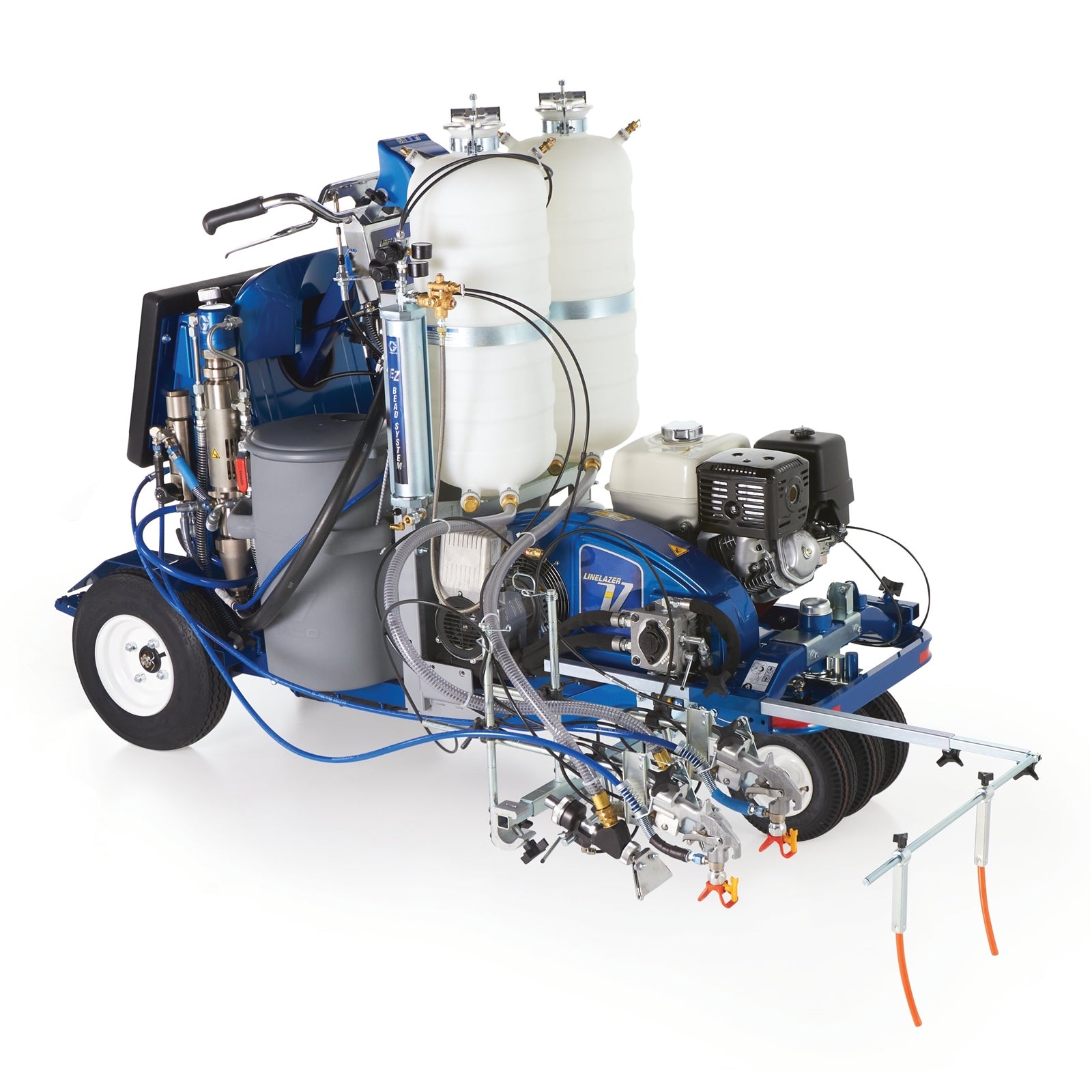

The GRACO 17H473 LineLazer V 250DC HP Reflective Series is a self-propelled, gas-hydraulic airless line striper designed for high-production dual color striping and reflective bead application. It is constructed with robust materials including PTFE, nylon, polyurethane, V-Max, UHM-WPE, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, and ceramic for wetted parts. Its intended use is for marking lines on surfaces such as roads, parking lots, and airport runways, especially where dual-color or highlight lines are required.

Key Features:

• Self-propelled gas-hydraulic airless line striper
• LineLazer V 250DC HP Reflective Series
• Robust construction with wetted parts in PTFE, nylon, polyurethane, V-Max, UHM-WPE, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic
• Compatible with a wide range of striping materials
• Dual high-efficiency hydraulic motors for uninterrupted performance and no-stall design
• Dual Endurance Chromex pumps for precise material flow and consistency
• Automatic paint gun system for skip-line striping and reduced operator fatigue
• Remote mount control box for easy operation and visibility
• Dual 15-gallon paint hoppers for less frequent refilling
• Honda® GX engine for reliable, easy-to-start power with Oil Alert safety feature
• Electric start for fast engine activation
• Self-centering front wheel and easy handlebar adjustment
• High-capacity cooling system and easy-out pump filter

Applications:
Ideal for airports, municipalities, DOTs, and any application requiring highlight lines or dual-color stripes on roads, parking lots, and runways.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety of the equipment.
• Ensure all safety procedures are followed during setup and operation
• Apply brake before starting the engine
• Start engine according to manufacturer instructions: open fuel valve, set choke, set throttle, turn key to start, then adjust choke and throttle as needed
• Set engine clutch switch to ON and adjust throttle to desired setting
• Regularly inspect and maintain wetted parts and hydraulic system for longevity and consistent performance
• Regularly check and maintain hydraulic fluid and engine oil levels
• Clean and inspect paint hoppers and pumps after use
• Follow manufacturer’s recommended maintenance schedule
• Use only compatible striping materials as specified by GRACO
