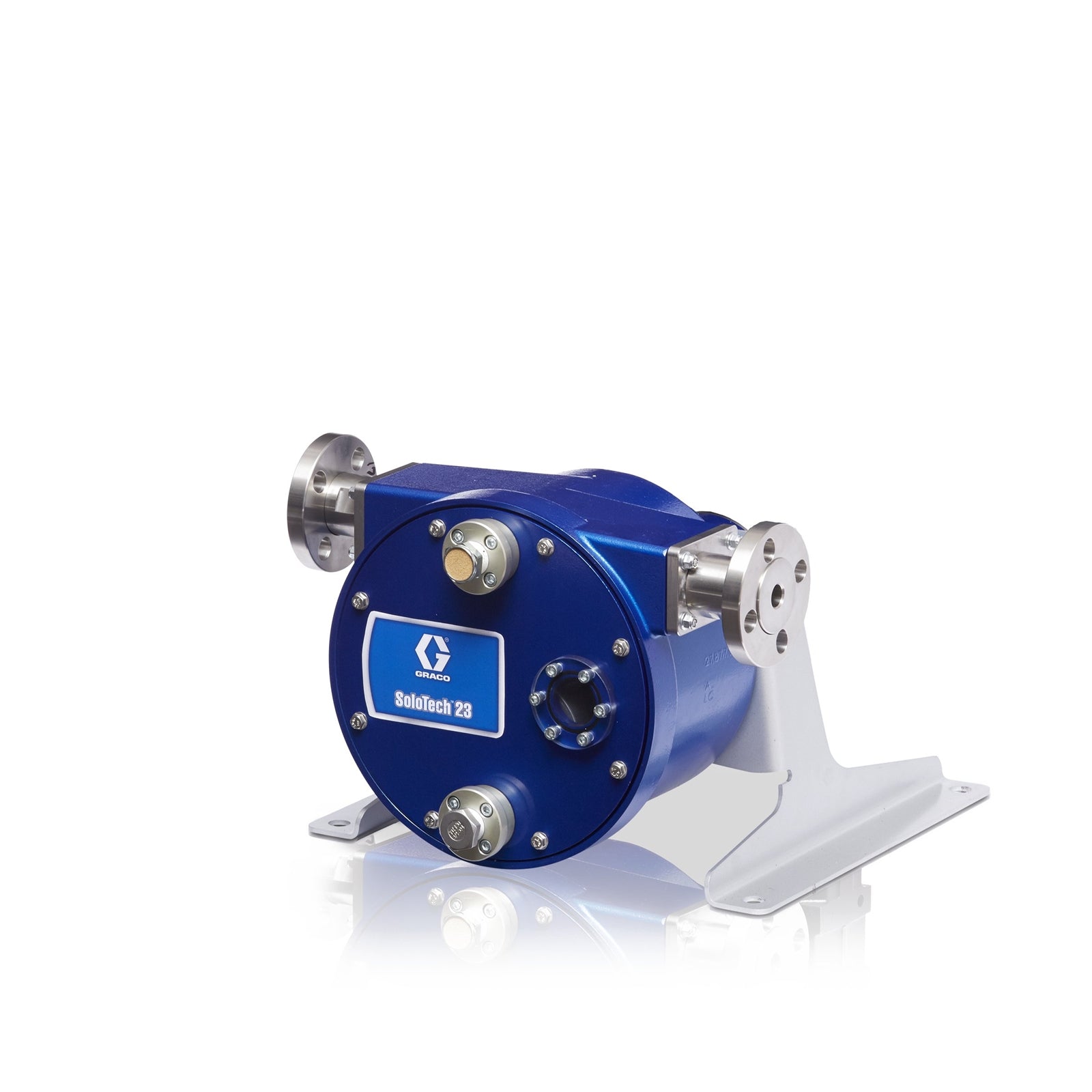

The GRACO 19X062 is a low-speed electric peristaltic hose pump designed for industrial applications. It features an EPDM hose and PVDF barb, making it suitable for handling caustic, abrasive, or sensitive materials. The pump is intended for metering and transfer tasks within industrial environments.

Key Features:

• Electric Peristaltic Pump
• i23
• Powder Coated Aluminum housing, EPDM hose, PVDF barb
• Maximum Flow Rate: 17 L/min
• Maximum Fluid Pressure: 9 bar (900 kPa, 125 psi)
• Industrial applications, suitable for caustic, abrasive, or sensitive materials
• ATEX, CE
• Single roller compresses hose through 360 degrees for longer hose life
• No valves, seals, or glands—inexpensive to maintain
• Reversible operation for emptying lines or clearing blockages
• Extended hose life due to only one hose compression per revolution

Applications:
Industrial metering and transfer of caustic, abrasive, or sensitive materials

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise pump efficiency and longevity.
• Ensure proper alignment of inlet and outlet connections (flange type, 25 mm/1 inch inlet)
• Follow manufacturer guidelines for hose installation and tensioning
• Regularly inspect hose for wear and replace as needed to prevent leaks and maintain performance
• Use appropriate tools and safety equipment during installation and maintenance
