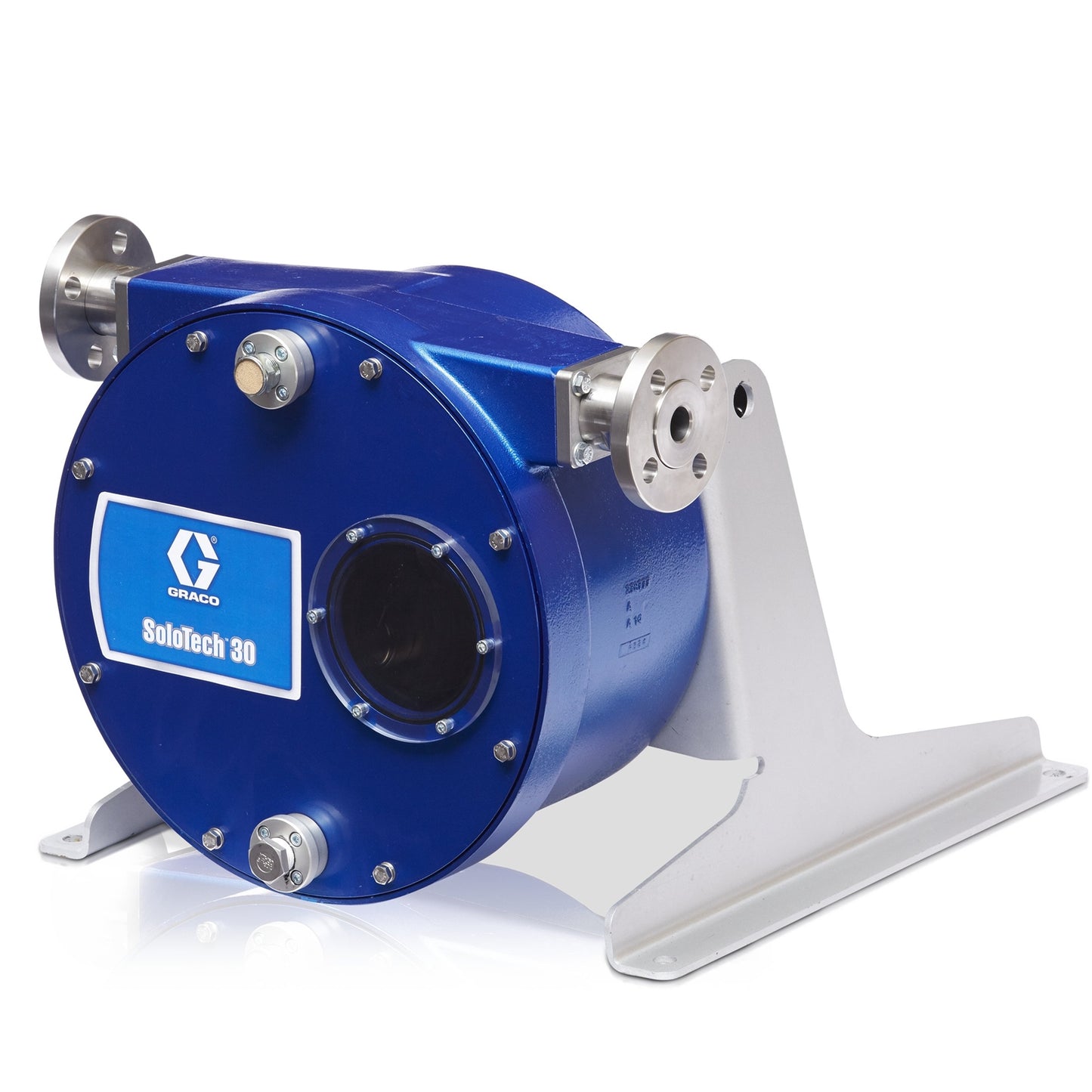

The GRACO 19X176 is a peristaltic hose pump designed for metering or transferring caustic, abrasive, or sensitive materials. It features a Buna-N (nitrile) hose, a 316 stainless steel barb, and a NEMA connection. The pump is engineered for durability and compatibility with challenging fluids, making it suitable for industrial applications where reliability and chemical resistance are essential.

Key Features:

• Peristaltic hose pump
• SoloTech i30 (30 mm hose size)
• Buna-N (nitrile) hose, 316 stainless steel barb, NEMA connection
• Approx. 60.57 lpm at 91 rpm (for SoloTech i30, actual may vary by configuration)
• Designed for caustic, abrasive, or sensitive materials; only the hose contacts the fluid
• Single roller compresses hose through 360 degrees for longer hose life
• No valves, seals, or glands—inexpensive to maintain
• Reversible operation for emptying lines or clearing blockages
• Easy to install or remove—no special tools needed
• Floating flange for easy installation
• More flow per revolution than conventional designs
• Extended hose life—only one hose compression per revolution
• Brushless DC motor with hose change reminder

Applications:
Metering or transfer of caustic, abrasive, or sensitive materials in industrial settings; suitable for applications requiring chemical resistance and reliability.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, compatibility, and safety, and helps maintain warranty coverage.
• Ensure proper alignment and secure mounting of the pump
• Use only compatible hoses and barbs for the intended fluid
• Follow manufacturer guidelines for electrical connections (NEMA connection)
• Regularly inspect hose for wear and replace as needed
• Leverage the floating flange for easier installation and maintenance
• Consult the equipment manual for detailed installation and maintenance instructions
• Schedule regular maintenance checks to prevent unexpected downtime
• Use only GRACO-approved replacement parts
