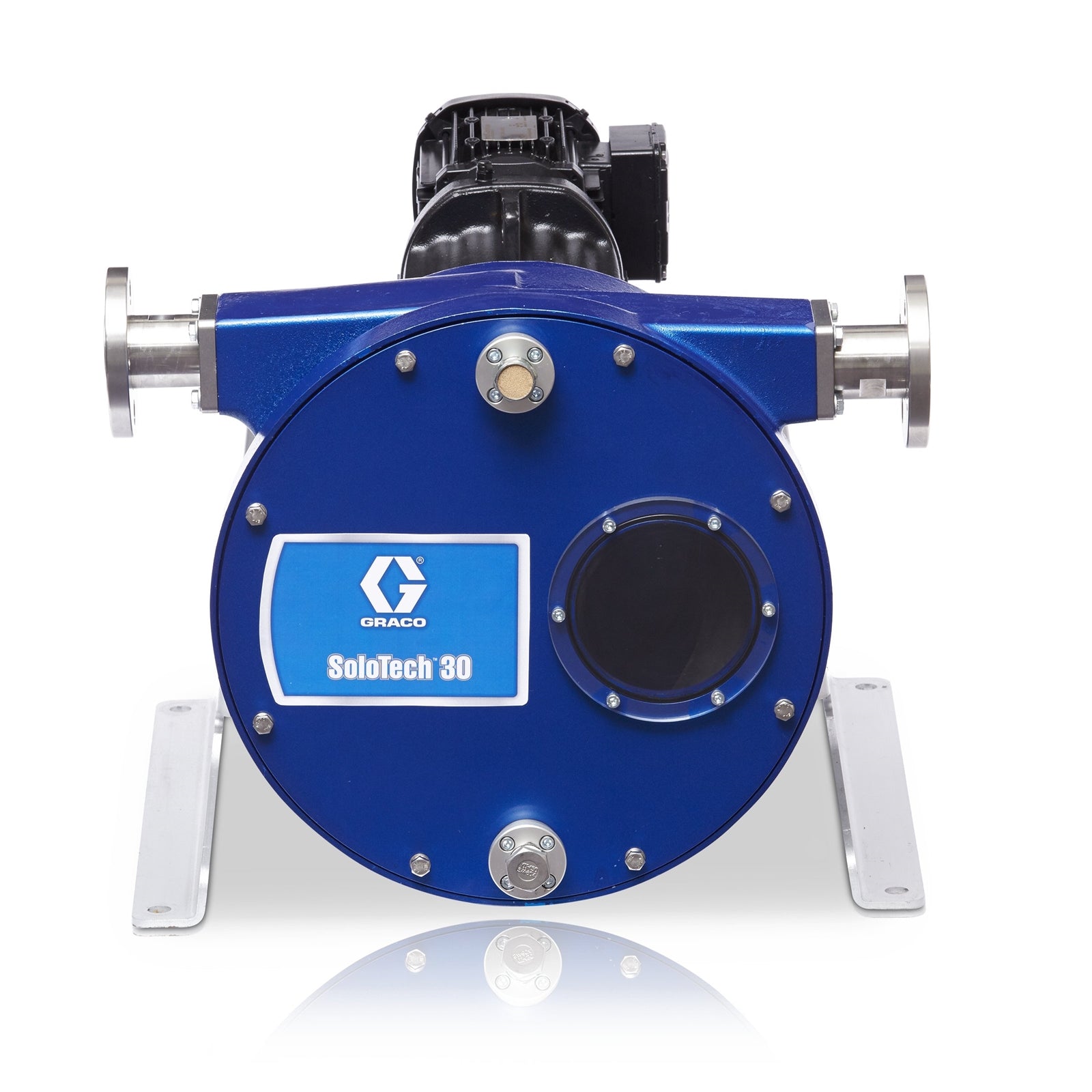

The GRACO 19Z114 is a high-speed, industrial-grade peristaltic hose pump designed for demanding fluid transfer applications. It features a Hypalon/CSM hose for chemical resistance and a 316 stainless steel barb for durability. This pump is engineered for reliable, leak-free operation in harsh environments, making it suitable for transferring abrasive, corrosive, or sensitive fluids within GRACO equipment.

Key Features:

• Electric Peristaltic Hose Pump
• SoloTech i30
• Hypalon/CSM hose, 316 stainless steel barb
• Up to 114 lpm (30 gpm) at maximum speed (see note below)
• Maximum fluid pressure: 100 psi (6.89 bar, 0.69 MPa)
• Industrial fluid transfer systems, compatible with a wide range of fluids including abrasive and corrosive materials
• CE
• Single roller design compresses hose through 360° for longer hose life
• Brushless DC motor for high efficiency and reliability
• No valves, seals, or glands for reduced maintenance
• Reversible operation for line emptying and blockage clearing
• Engineered for harsh environments and extended duty cycles

Applications:
Industrial metering and transfer of abrasive, corrosive, or sensitive fluids; suitable for mining, chemical processing, water treatment, and other heavy-duty applications.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with existing equipment.
• Ensure proper alignment of hose and barb during installation
• Follow manufacturer guidelines for hose tension and compression
• Regularly inspect hose for wear and replace as needed
• Use appropriate safety measures when handling chemicals or abrasive fluids
