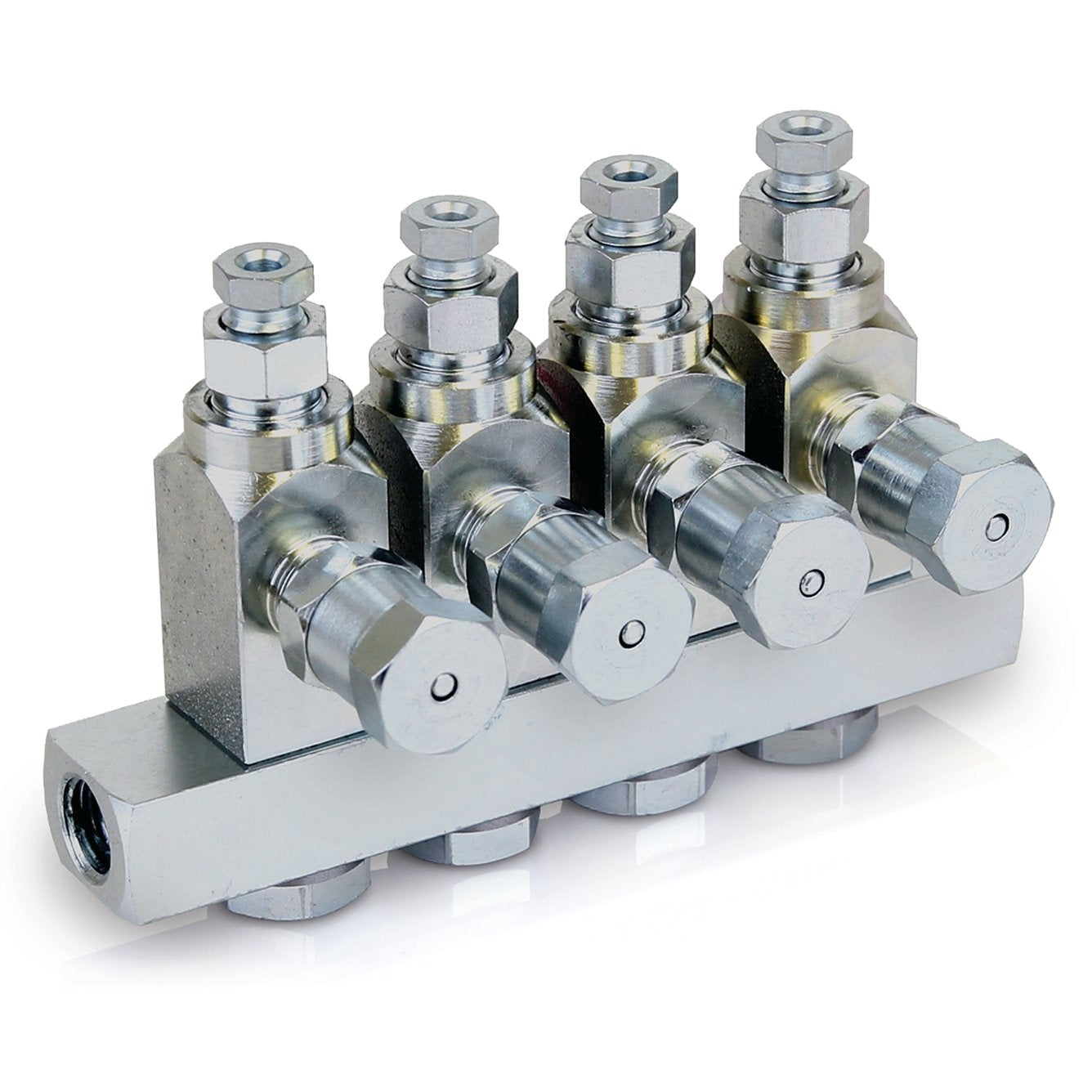

The GRACO 2.4E+245 is a one-piece oil injector manifold constructed from GL-43 carbon steel, designed for use in lubrication systems. It is intended to distribute low viscosity lubricants efficiently across multiple lube points, allowing for easy system customization and reliable performance in demanding environments.

Key Features:

• Oil injector manifold
• 2.4E+245
• GL-43 carbon steel
• Operating pressures from 750–1000 psi (52–69 bar)
• Handles low viscosity lubricants (#10 weight minimum); compatible with GRACO lubrication systems
• One-piece design for easy system design and setup
• Allows addition or subtraction of lube points without redesign
• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation
• Adjustable output volume from 0.001–0.008 in³ (0.02–0.13 cm³)
• Front-mounted cycle pin indicator for quick function confirmation

Applications:
Used in industrial lubrication systems for distributing oil to multiple points, suitable for environments requiring reliable, heavy-duty performance.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, longevity, and compatibility with existing systems.
• Ensure system is depressurized before installation
• Follow GRACO’s recommended installation procedures for injector manifolds
• Regularly inspect seals and components for wear
• Use only compatible low viscosity lubricants
• Perform preventative maintenance to maintain peak performance
• Monitor cycle pin indicator for proper injector function
• Replace seals and components as recommended by GRACO
