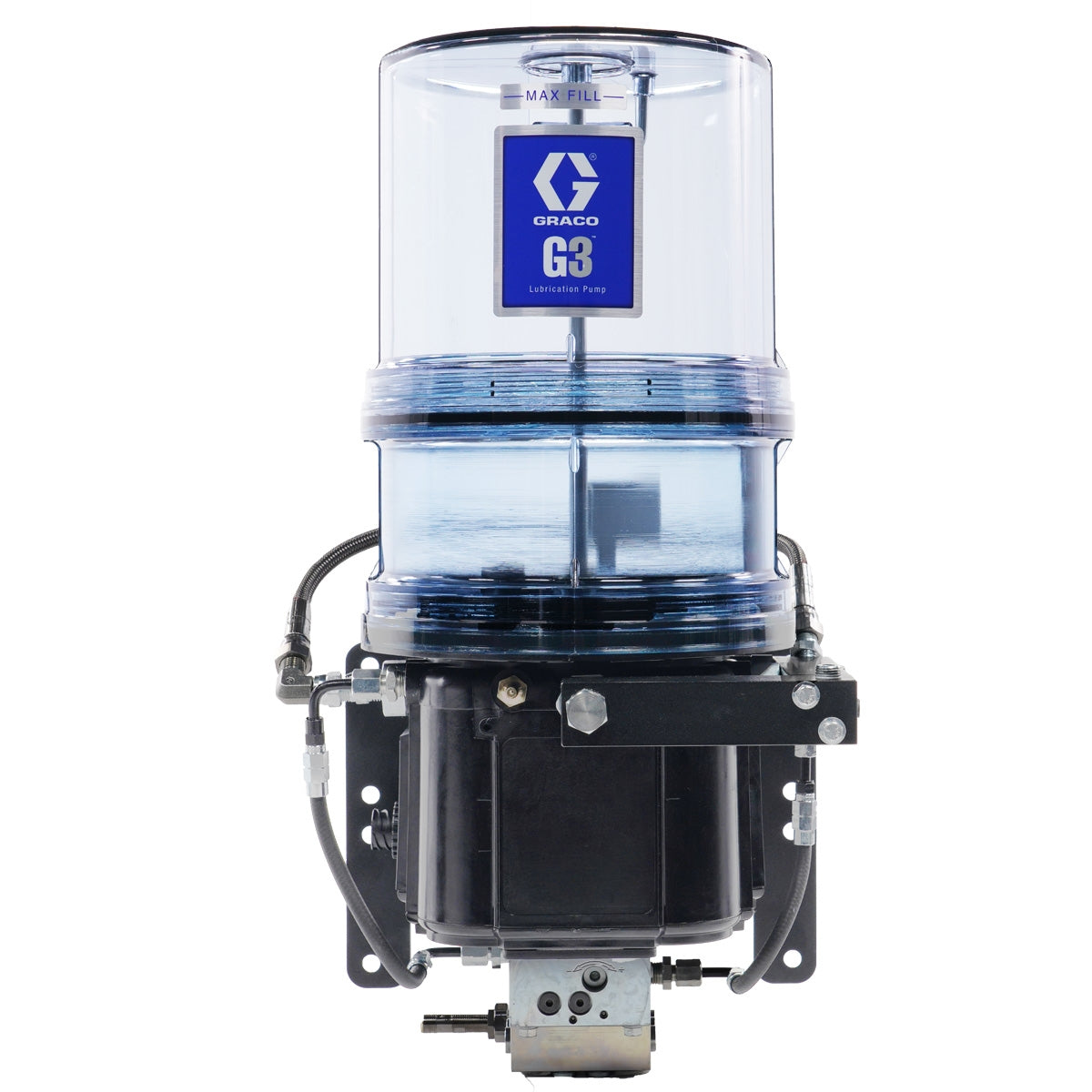

The GRACO 2002248 G3® Standard Grease Pump is an electric piston pump designed for automatic lubrication of machinery. It is constructed with durable, high-impact, UV-resistant materials and is intended for use with dual-line and other lubrication systems to deliver oil or grease to critical wear points in industrial and off-road equipment.

Key Features:

• Electric piston pump
• G3® Standard, 8 liter reservoir, 2 pump elements
• High-impact, UV-resistant reservoir; robust pump housing
• Adjustable pump output per element per minute: 0.12 in³, 0.18 in³, 0.25 in³ (2 cm³, 3 cm³, 4 cm³)
• Maximum working pressure: 5,100 psi (352 bar, 35.1 MPa)
• For use with injector-based systems, series progressive systems, and dual-line lubrication systems; compatible with NLGI #000 to #2 greases and oils with at least 40cSt viscosity
• CE, ETL, IP69K; Conforms to UL 73, certified to CSA 22.2 No. 68-09
• Up to 3 pump elements (2 included in this model)
• Multiple reservoir sizes available (2, 4, 8, 12, or 16 liters)
• External low-level sensor for reservoir monitoring
• CPC (Control Panel Connector) and GLC X™ Controller for advanced control and feedback
• Easy maintenance and reliable operation
• Suitable for demanding environments and changing temperatures (-40 to 70°C)

Applications:
Ideal for off-road equipment, mining, agriculture, construction, and other industrial applications requiring reliable, automatic lubrication of critical components.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Follow all safety instructions and warnings in the GRACO manual.
• Ensure proper electrical connections for 24 VDC power supply.
• Install the external low-level sensor for reservoir monitoring.
• Use only compatible NLGI #000 to #2 greases or oils with at least 40cSt viscosity.
• Do not exceed 30 minutes of continuous run time.
• Regularly inspect and maintain the pump and reservoir for optimal performance.
