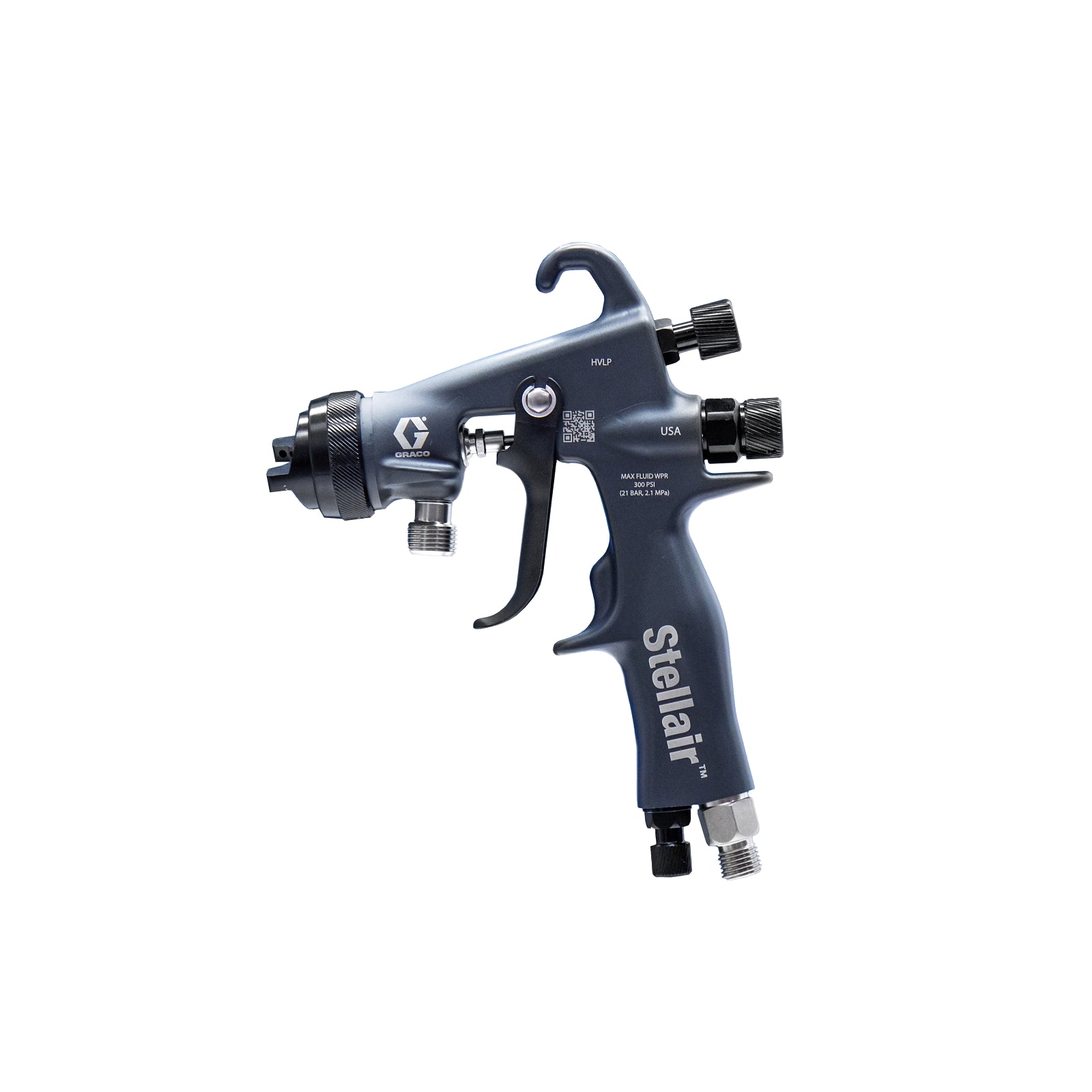

The GRACO Stellair Air Spray Gun is a manual, high-volume low-pressure (HVLP) spray gun designed for automotive applications. It features a 0.055 in (1.4 mm) nozzle with a PEEK tip, constructed from aluminum for durability and lightweight handling. This spray gun is intended for precise atomization and application of automotive coatings such as CARC, enamel, epoxy, and fast-set materials.

Key Features:

• Manual air spray gun
• Stellair, 0.055 in (1.4 mm) nozzle
• Aluminum body (standard Stellair model); carbon-reinforced polymer (Stellair ACE model, but this part is the standard Stellair)
• Maximum air inlet pressure: 100 psi (0.7 MPa, 7 bar); Maximum fluid inlet pressure: 300 psi (2.1 MPa, 21 bar); HVLP maximum inbound pressure: 20 psi (1.4 bar)
• Automotive coatings (CARC, enamel, epoxy, fast-set), general industry, high solids, adhesives, trim, waterborne, wood
• Ergonomics Performance Certification (industry’s only)
• Lightweight and ergonomic design for reduced operator fatigue
• Cartridge-style fluid components for fast, easy in-field replacement
• Versatile atomization for HVLP, LVMP, compliant, and conventional spray technologies
• Durable and reliable for demanding industrial environments
• Consistent spray pattern and uniform film thickness

Applications:
Automotive painting and coating, general industrial finishing, high solids, adhesives, trim, waterborne, and wood applications

Installation Notes:

• Ensures optimal performance, safety, and compatibility with GRACO equipment and coatings
• Set air pressure according to recommended starting pressures (e.g., automotive HVLP: 20 psi/1.4 bar)
• Test spray pattern at a consistent distance (6–8 in/150–200 mm) from the test piece
• Adjust fluid flow rate, input air pressure, and fan control valve for desired atomization and pattern size
• Use only compatible fluids and solvents as specified in the manual
• Regularly inspect and maintain cartridge-style fluid components for best results
