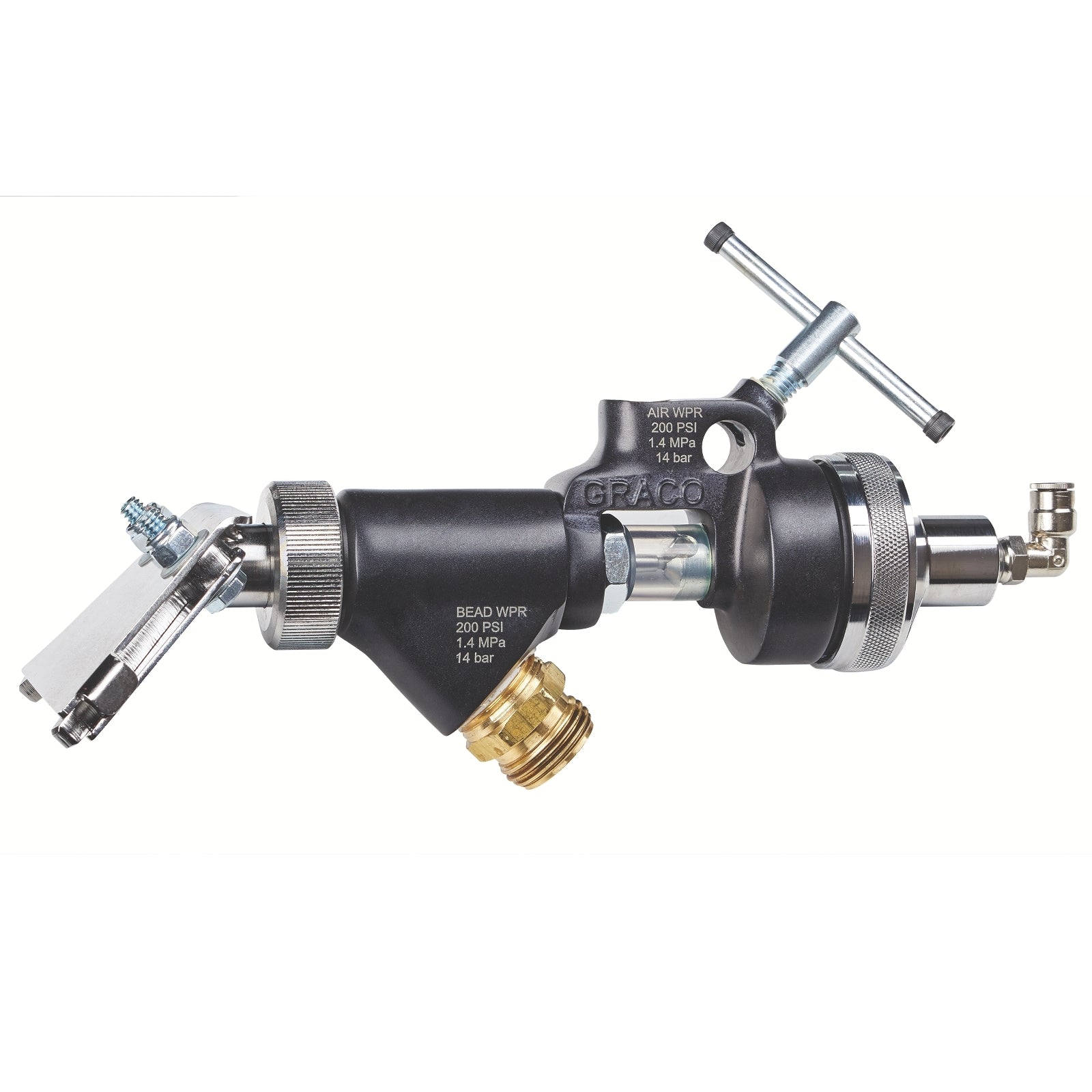

The GRACO 238338 is a single acting bead spray gun designed for the application of road marking reflective materials. It is part of the RoadLazer RoadPak line striping system. The material composition is not specified, but it is intended for professional use in road marking applications.

Key Features:

• Single Acting
• Glass bead output: 2-40 lb/min (0.9-18 kg/min)
• Maximum working pressure: 200 psi (1.38 MPa, 13.8 bar)
• RoadLazer RoadPak line striping system
• Air connection: 1/4 NPT(f) air inlet
• Bead connection: 3/4 NPT(f) bead inlet
• Operating temperature: 32° - 120° F (0° - 49° C)
• Sound pressure level <80 dB

Applications:
Road marking and line striping applications

Installation Notes:

• Using genuine parts ensures compatibility and optimal performance of the equipment.
• Follow the manufacturer's instructions for setup and maintenance.
• Ensure proper grounding and safety precautions during use.
• Regularly inspect and clean the gun to prevent clogging.
• Refer to the manual for specific maintenance procedures.
