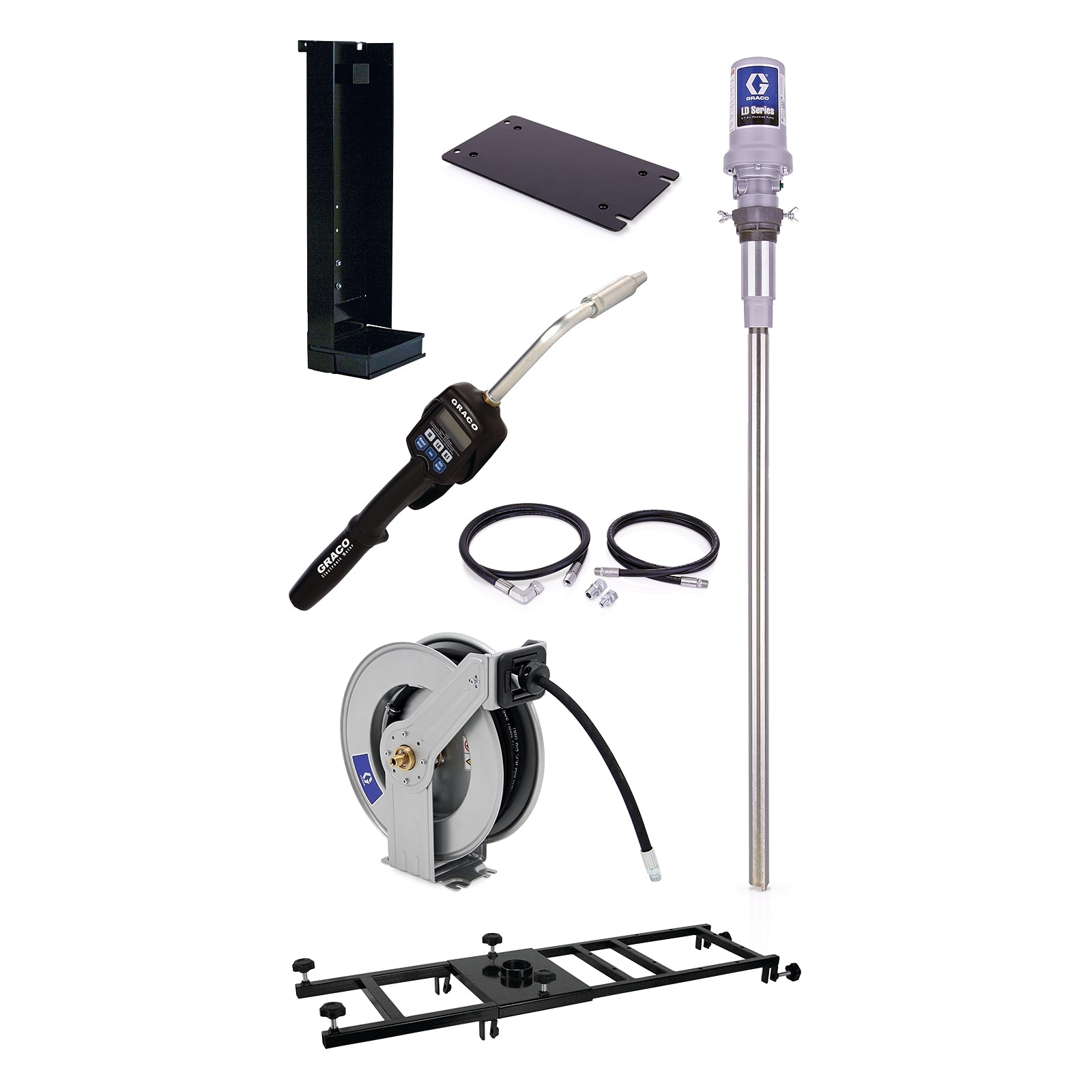

The GRACO 24H870 is a stationary oil pump package designed for bulk transfer of synthetic and petroleum-based oils, hydraulic fluids, and transmission fluids. It is constructed for durability and reliability, intended for use in industrial and vehicle service environments where large volumes of oil need to be efficiently dispensed or transferred.

Key Features:

• Stationary Oil Pump Package
• LD Series 5:1, 275 Gallon (1040 Liter) capacity
• Engineered for durability; features a patented cup and plate design that eliminates the need for O-rings, reducing maintenance needs.
• Maximum flow rate: 6.7 GPM (Gallons per Minute)
• Maximum working pressure: 750 psi (5.2 MPa)
• Compatible with synthetic and petroleum-based oils, hydraulic fluids, and transmission fluids
• Three-inch air motor for increased power and better flow
• Patented cup and plate design for reduced maintenance
• Reliable, long-lasting performance
• Engineered for stationary use with large oil storage tanks

Applications:
Ideal for industrial facilities, vehicle service centers, and any environment requiring bulk oil transfer from large stationary tanks (up to 275 gallons/1040 liters). Suitable for dispensing oils, hydraulic fluids, and transmission fluids in high-volume applications.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems. Non-genuine parts may compromise safety and efficiency.
• Ensure the pump is securely mounted to a stable surface
• Connect to a clean, dry air supply within the recommended pressure range (20–150 psi, with optimum life at <125 psi)
• Use appropriate fittings and hoses rated for the intended fluid and pressure
• Follow all local safety and environmental regulations during installation and operation
• Regularly inspect and maintain the pump according to manufacturer guidelines
