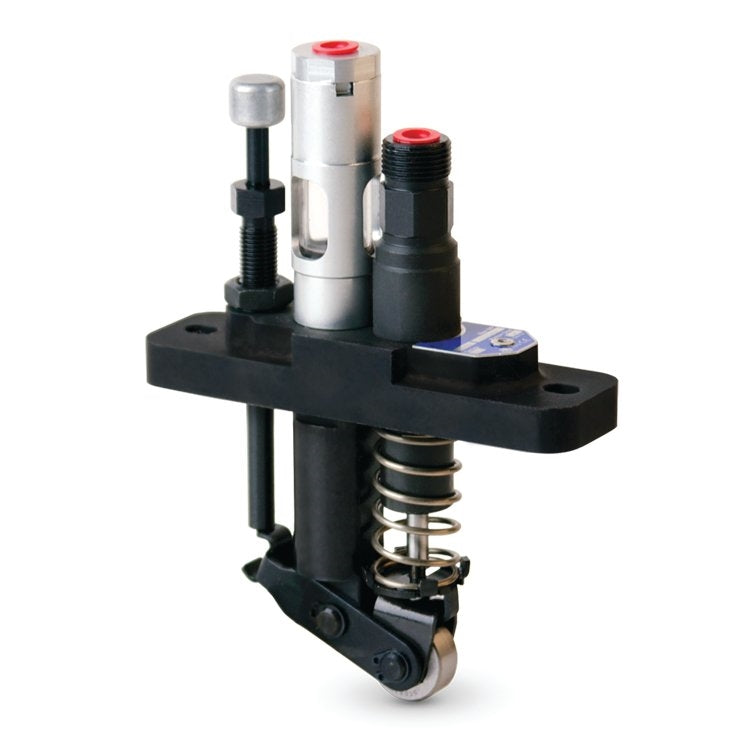

The GRACO 24J395 is a mechanical piston pump designed for gravity-fed lubrication systems. It is constructed for use with oil and is intended for in-plant machinery and compressor equipment, providing reliable and consistent oil delivery under high pressure.

Key Features:

• Mechanical Piston Pump
• Manzel GBL 7500, 1/4 in (6.4 mm)
• Rugged, with stainless steel piston and spring, armored sight glass, and dynamic captured seal design
• Adjustable from 1 to 27 drops per stroke; maximum output volume: 0.024 in³; maximum cycle rate: 50 CPM
• Maximum working pressure: 6,000 psi (41.4 MPa, 414 bar, 41,400 kPa); can develop pressures up to 7,500 psi (517 bar) in some configurations
• Oil
• Superior roller bearing design for reduced cam lobe damage and improved pump life
• Dynamic captured seal design for leak prevention and contamination control
• Stainless steel piston and spring for corrosion resistance and consistent output
• Armored sight glass for easy visual indication of oil flow and volume
• Innovative double ball outlet check to eliminate vapor lock
• Patent pending ball-and-socket design for even force distribution and longer piston/rocker life
• Precision stroke length (~0.05") for improved flow and delivery

Applications:
In-plant machinery, compressor equipment, and other applications requiring continuous-duty, high-pressure oil lubrication

Installation Notes:

• Using genuine GRACO replacement parts ensures compatibility, reliability, and optimal performance of your lubrication system.
• Ensure the pump is installed according to GRACO guidelines for gravity-fed systems
• Verify compatibility with the specific oil and equipment
• Regularly inspect the armored sight glass for oil flow and volume
• Follow recommended maintenance schedules to prevent contamination and wear
• Use only compatible oils as specified by GRACO
• Monitor pump performance and check for leaks or abnormal operation
• Replace worn or damaged components with genuine GRACO parts
