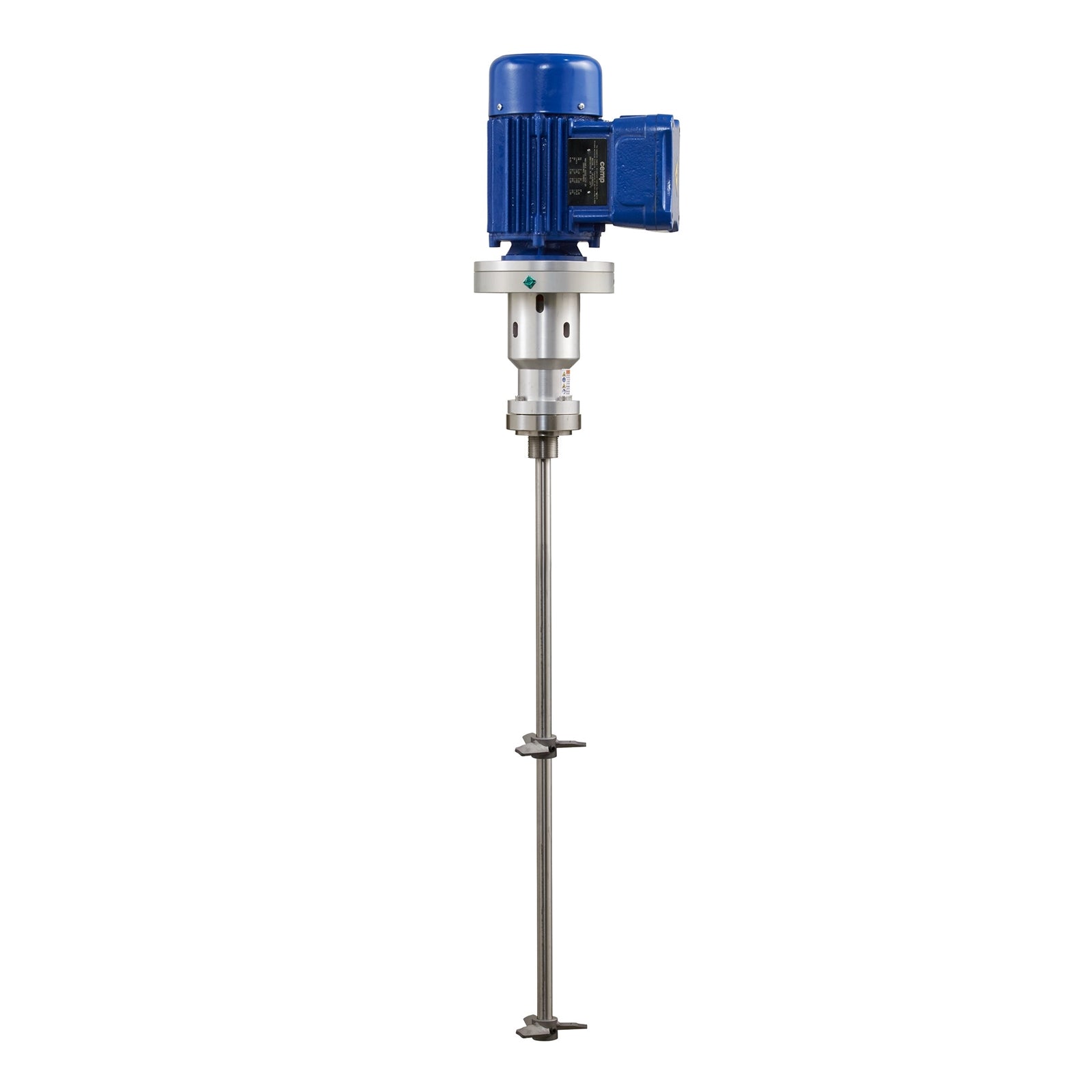

The GRACO 25C465 is a low shear, electric direct drive agitator assembly designed for mixing and maintaining suspension of industrial coatings in 5-gallon (19 L) pressure tanks. It is constructed with wetted parts in stainless steel for durability and chemical resistance. This assembly is intended for use in industrial environments where reliable, consistent mixing is required.

Key Features:

• Electric direct drive agitator
• 5 Gallon (19 L)
• Stainless steel (wetted parts)
• For use with 5-gallon (19 L) pressure tanks; replaces existing air motor driven pressure tank agitators
• ATEX listed (explosion proof)
• Low shear mixing for uniform particle dispersion
• Constant speed regardless of fill level
• Quiet electric motor operation
• Includes shaft and impeller (does not include pressure tank)
• Up to five times more powerful than pneumatic agitators
• Reliable, easy to maintain

Applications:
Mixing and maintaining suspension of industrial coatings in 5-gallon (19 L) pressure tanks. Suitable for environments requiring explosion-proof equipment.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and safety in hazardous environments.
• Ensure the agitator assembly is securely mounted to prevent rotation during operation
• Install the shaft and impeller as per manufacturer instructions, ensuring correct blade orientation and positioning
• Tighten all set screws and retaining rings securely
• Position the impeller so the lowest blade is 1/2 to 1–1/2 times the impeller blade diameter from the tank bottom
• For detailed installation, refer to the GRACO manual or consult a GRACO specialist
• Regularly inspect shaft, impeller, and mounting hardware for wear or damage
• Ensure all fasteners are tight and secure
• Follow manufacturer guidelines for maintenance intervals and procedures
