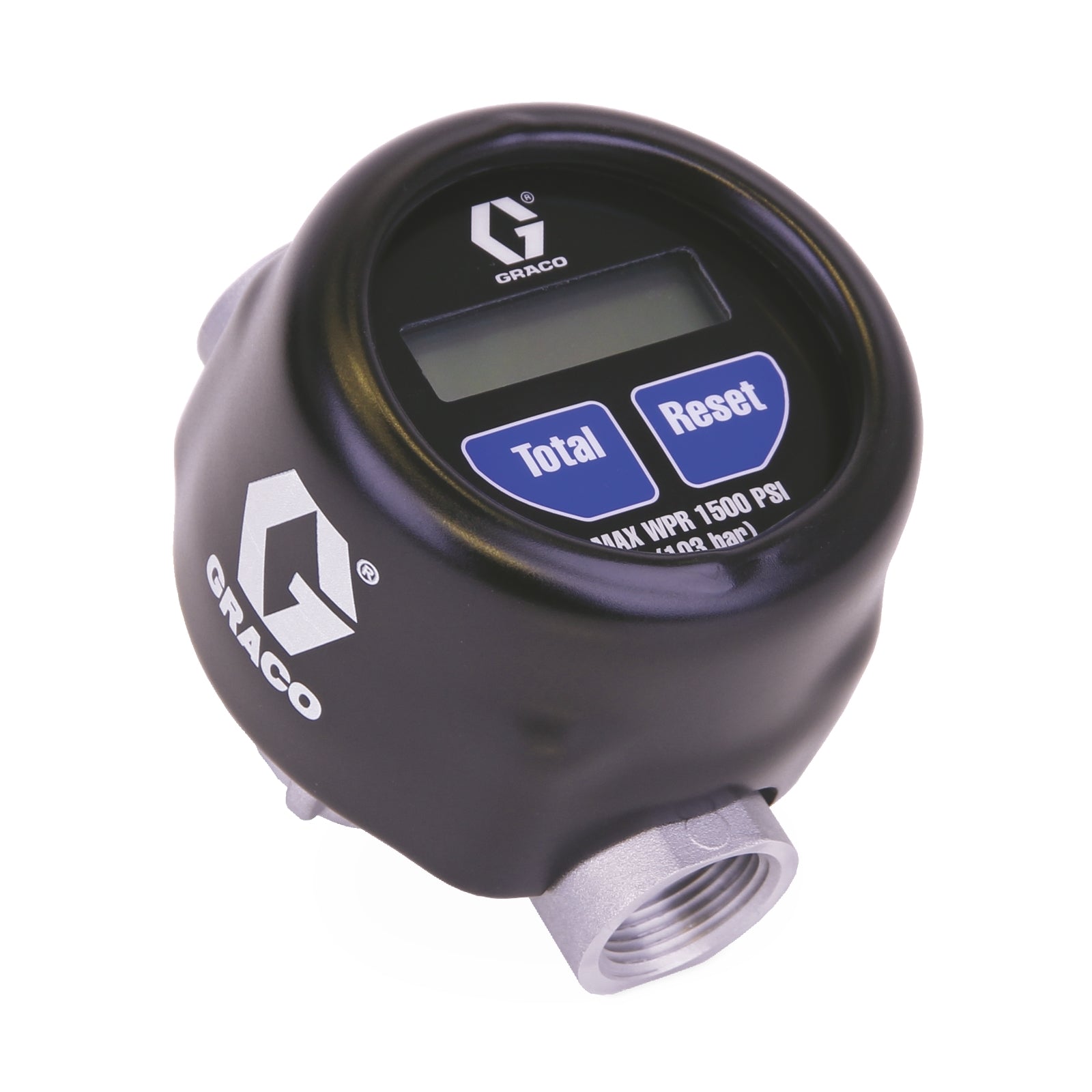

The GRACO 25C841 IM20 is an electronic in-line meter designed for accurate measurement and dispensing of petroleum-based oils, synthetic-based oils, and antifreeze. It is constructed for durability and reliability in harsh environments, making it suitable for integration into GRACO lubrication and fluid handling equipment.

Key Features:

• Electronic In-Line Meter
• IM20, 3/4" NPT inlet/outlet
• Robust, IP69K-rated housing for harsh conditions
• Maximum: 20 gpm (75.7 lpm); Minimum: 0.25 gpm
• Maximum working pressure: 10.3 MPa (1500 psi, 103 bar, 10300 kPa)
• Petroleum-based oils, synthetic-based oils, antifreeze
• IP69K (protection against pressure washing and dust)
• Upgraded electronics for reliability
• Easy-to-read LCD screen with simple operator controls
• Measures in quarts, gallons, pints, and liters
• Long battery life with easily replaceable AAA batteries
• Proven in harsh conditions, suitable for pressure washing environments

Applications:
Used in vehicle service, quick lube, and industrial lubrication systems for accurate fluid measurement and dispensing.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and warranty coverage.
• Ensure correct thread type (3/4" NPT) for inlet and outlet connections
• Install in a location protected from excessive vibration and impact
• Follow manufacturer guidelines for pressure and flow rate limits
• Regularly check and replace batteries as needed for uninterrupted operation
• Periodically inspect for leaks or damage
• Clean the exterior to maintain IP69K protection
• Calibrate according to manufacturer recommendations
