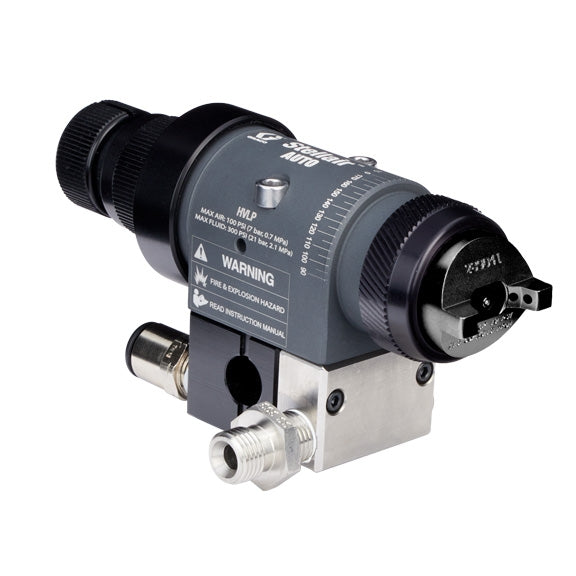

The GRACO 25F215 is an automatic air spray gun designed for industrial finishing applications. It features a high volume low pressure (HVLP) system with a 0.055 in (1.4 mm) nozzle, fluid control knob, and side inlet manifold (imperial). It is intended for use in automated paint lines or robotic spray booths, suitable for automotive, industrial metal and plastic components, wood products, and architectural structures.

Key Features:

• Automatic air spray gun
• 25F215, 0.055 in (1.4 mm) nozzle
• Maximum working fluid pressure: 300 psi (2.1 MPa, 21 bar); Maximum working air pressure: 100 psi (0.7 MPa, 7 bar)
• Designed for use with automated paint lines and robotic spray booths; compatible with a variety of paints and coatings
• HVLP technology for controlled, low velocity spray pattern, reducing bounce back and overspray
• Precise fluid flow control click knob with true zero set point for accurate paint thickness
• Patented spray pattern alignment and pathing tool for accurate and repeatable spray angle
• One-piece fluid cartridge for quick removal and replacement, minimizing maintenance downtime
• Side inlet manifold included

Applications:
Automotive, industrial metal and plastic components, wood products, architectural structures, and other general industrial finishing applications

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise spray quality and equipment longevity.
• Follow all safety instructions and warnings in the GRACO manual before installation and use
• Ensure proper grounding to prevent static sparking, which can ignite fumes
• Use appropriate mounting kits (e.g., Gun Mounting Kit 24C208, 24B609, Retrofit Adapter Plate 288197, Single Gun Mounting Bracket 24Y515, Dual Gun Mounting Bracket 25A844, Robot Adapter Plates) for secure installation
• Regularly inspect and maintain the spray gun and fluid cartridge for optimal performance
