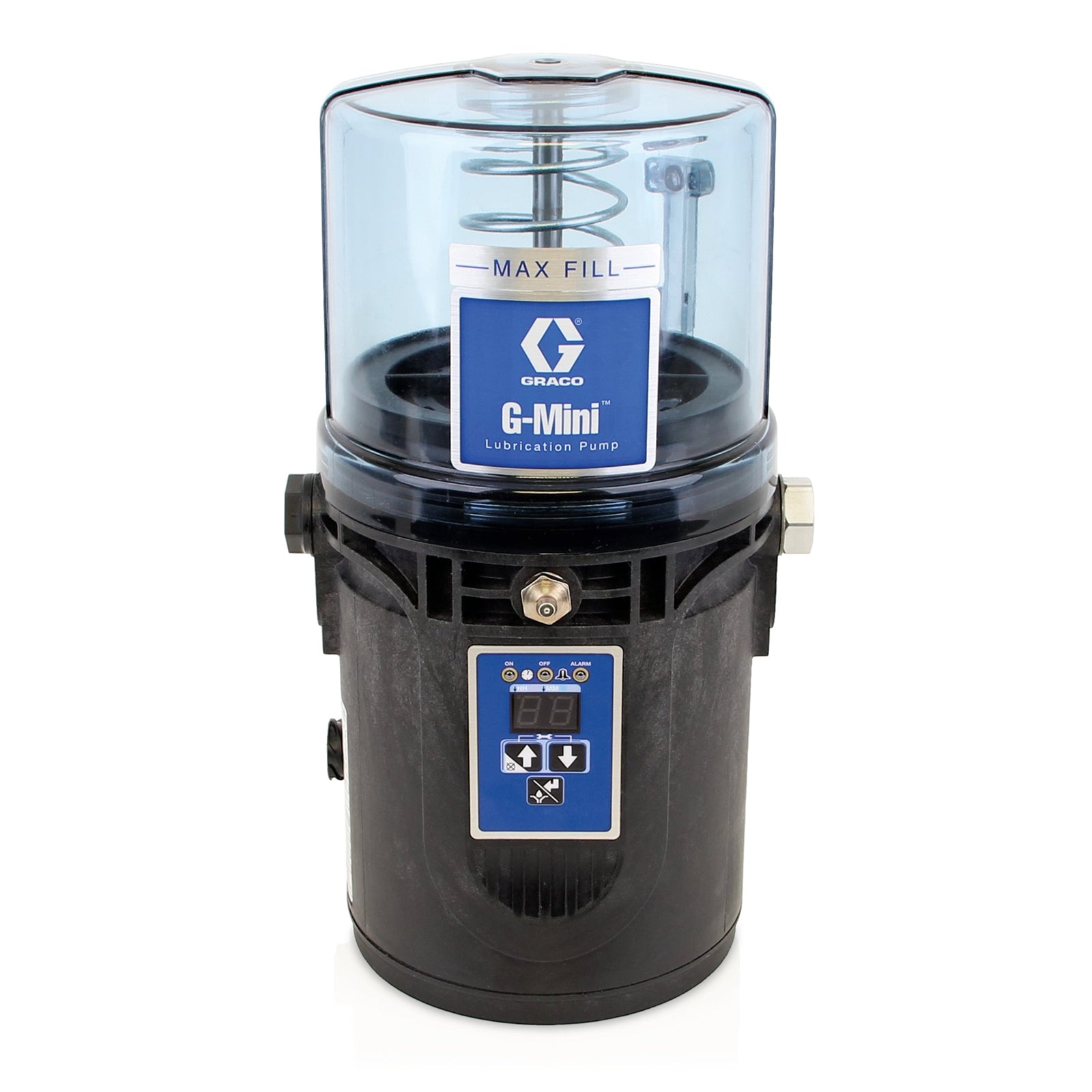

The GRACO 25R803 G-Mini® is a compact, electric grease lubrication pump designed for reliable and efficient lubrication in demanding environments. It is constructed from robust materials including carbon steel, alloy steel, stainless steel, nitrile rubber, bronze, and nickel-plated alnico. This pump is intended for use in automated lubrication systems to extend equipment life and optimize uptime.

Key Features:

• Electric grease lubrication pump
• G-Mini®, 1 Liter reservoir
• Carbon steel, alloy steel, stainless steel, nitrile rubber, bronze, nickel-plated alnico
• Up to 0.18 in³/min (3 cm³/min) per pump element (up to 2 elements possible)
• Maximum working pressure: 280 bar (4,061 psi)
• Handles grease NLGI 000 to #2; fits 5 gallon or 35 lb pail with optional adapter
• IP69K rated for harsh environments
• Rugged construction for 24/7 operation
• Easy-to-program controller for time-based or cycle-based systems
• Follower plate and stir paddle to combat oil separation and ensure pump element loading chamber is always full
• M12 cycle or proximity switch input standard on pumps with controller
• 5-wire CPC power cable for power, remote manual run button, and fault output
• Low level alert and alarm
• Compact footprint for space-saving installation

Applications:
Automated lubrication of machinery in industrial, mining, agricultural, and manufacturing environments. Suitable for both large-scale and small-scale operations.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure proper voltage (12 VDC) is supplied
• Use recommended fittings and adapters for reservoir and pump connections
• Follow manufacturer guidelines for wiring and controller setup
• Regularly check and maintain the follower plate and stir paddle to prevent oil separation
• Monitor low level alerts and alarms for timely refilling
