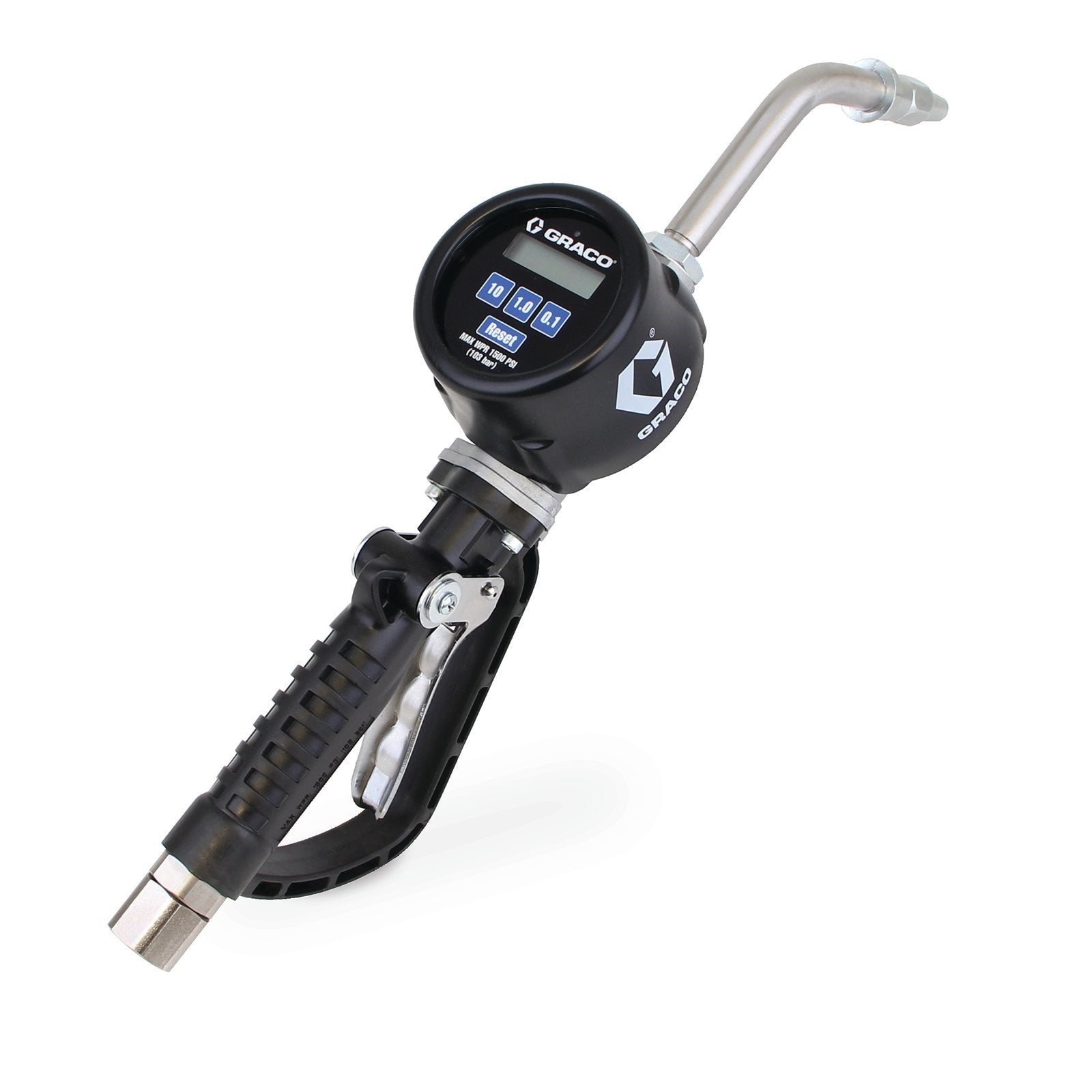

The GRACO PM™ 8 Electronic Preset Oil Meter is a robust, electronic preset meter designed for accurate and reliable dispensing of petroleum-based oils. It features a rigid extension and is constructed from durable materials including aluminum, stainless steel, carbon steel, acetal, nitrile rubber, and Geolast®. This meter is intended for use in demanding environments such as automotive dealerships, service centers, lube trucks, mining, and fleet service facilities.

Key Features:

• Electronic preset oil meter
• PM™ 8, 1/2 in. (13 mm) Inlet – NPT, Rigid Extension
• Aluminum, stainless steel, carbon steel, acetal, nitrile rubber, Geolast®
• Up to 8 GPM (30.3 lpm)
• Maximum working pressure: 1500 psi (10 MPa, 102 bar); Maximum dynamic operating pressure (oil): 600 psi (4.14 MPa, 41.4 bar)
• For use with petroleum-based oils
• IP69K ingress protection per IEC 60529
• Sealed electronics for protection against pressure washing and dust
• Twist-close nozzle to prevent leaks
• Poppet design for long valve life
• Ergonomic four-finger trigger with robust trigger guard
• Durable cast body for heavy-duty use
• Electronic display with preset dispense function
• Manual nozzle
• Long battery life (4 AA batteries)
• ±0.5% accuracy
• Locking trigger

Applications:
Automotive dealerships, service & fast lube centers, lube trucks, mining, heavy-duty dealerships, fleet service facilities, in-plant maintenance

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and warranty coverage.
• Ensure proper alignment and secure connection of the 1/2 in. NPT inlet and 3/4 in. ORB outlet
• Use recommended batteries (E91 alkaline Energizer® or lithium ion for temperatures below 0°F)
• Regularly inspect and clean inlet screens and seals for optimal flow and leak prevention
• Follow manufacturer guidelines for maintenance and replacement of wear parts
• Store within recommended temperature range (-40°F to 185°F)
• Protect from extreme environmental conditions
• Regularly check and replace batteries as needed
• Use only compatible fluids as specified
