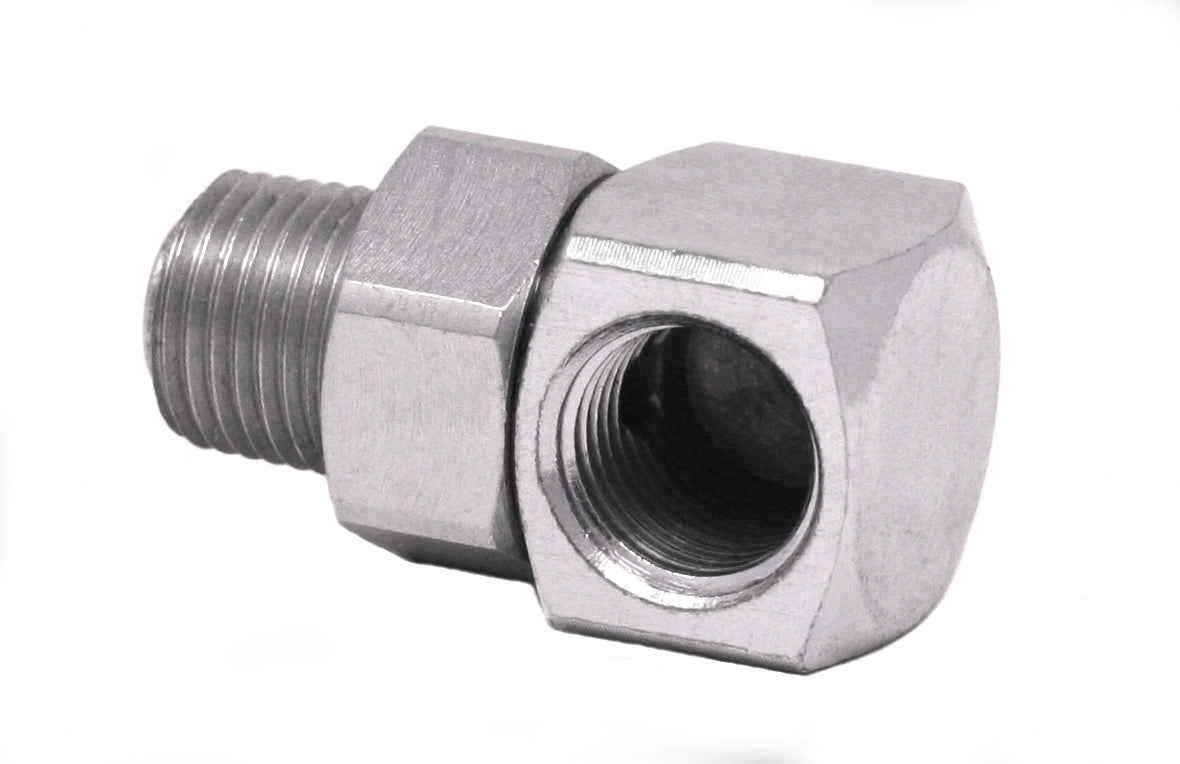

The GRACO 563148 Compact 90º Angle Swivel is a threaded, steel-bodied swivel fitting designed for use with pipe in centralized oil and grease lubrication systems. It features a nitrile seal and is intended for medium to high pressure service, providing a simple and cost-effective means of connecting lines between stationary or oscillating surfaces in on-road vehicle applications.

Key Features:

• Elbow (Swivel)
• 1/8 inch (3.175 mm)
• Steel body with nitrile seal
• Maximum working pressure: 500 psi (34 bar, 3400 kPa, 3.4 MPa)
• Oil, grease
• Compact 90º angle design for tight spaces
• Swivel action for flexible line routing
• Threaded NPT connection
• Reliable for medium to high pressure service
• Simple and inexpensive installation

Applications:
Primarily used in centralized oil and grease lubrication systems for on-road vehicles, providing flexible and reliable line connections between stationary or oscillating surfaces.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance within GRACO lubrication systems.
• Ensure threads are clean and undamaged before installation
• Apply appropriate thread sealant if required
• Tighten securely but avoid over-torquing to prevent damage
• Inspect for leaks after installation and during routine maintenance
• Regularly inspect for wear, leaks, or damage
• Replace seals or fittings as needed to maintain system integrity
• Follow manufacturer guidelines for lubrication system maintenance
